Stout Tent Overland Series – 16 ft Luxury Canvas Bell Tent Sunforger

The Stout Tent Overland Sunforger Series 16 ft is conceived as a true wilderness retreat — a canvas residence created for remote landscapes, expansive properties, and destinations where nature feels vast, untamed, and deeply present. Its classic bell-tent form remains quietly architectural, while its spirit is unmistakably adventurous, designed for those who build refined escapes far beyond the ordinary.

Here, the experience is elemental yet elevated. Days begin with crisp air and open horizons; evenings settle into warmth, ritual, and stillness beneath wide skies. Whether established as a long-term basecamp, a secluded private sanctuary, or part of an immersive resort setting, this tent becomes a place of grounding — a space where endurance and beauty coexist effortlessly.

Powerful without excess and restrained in its confidence, it reflects a modern vision of expedition-grade glamping: purposeful, composed, and crafted for those who value permanence, self-sufficiency, and the art of living well in nature’s most dramatic settings.

Key Features

• Material: 100% natural, waterproof, mold-resistant Sunforger cotton canvas
• Canvas Weight: Heavy-duty 10.10 oz / 340 gsm double-weave marine-grade canvas
• Design: Signature 24” double-wall construction with secondary mesh sidewall for enhanced airflow
• Doors: Bug-netted secondary doors sewn behind the canvas outer doors
• Groundsheet: Zip-away heavy-duty PVC ripstop tub-style groundsheet, removable for easy cleaning

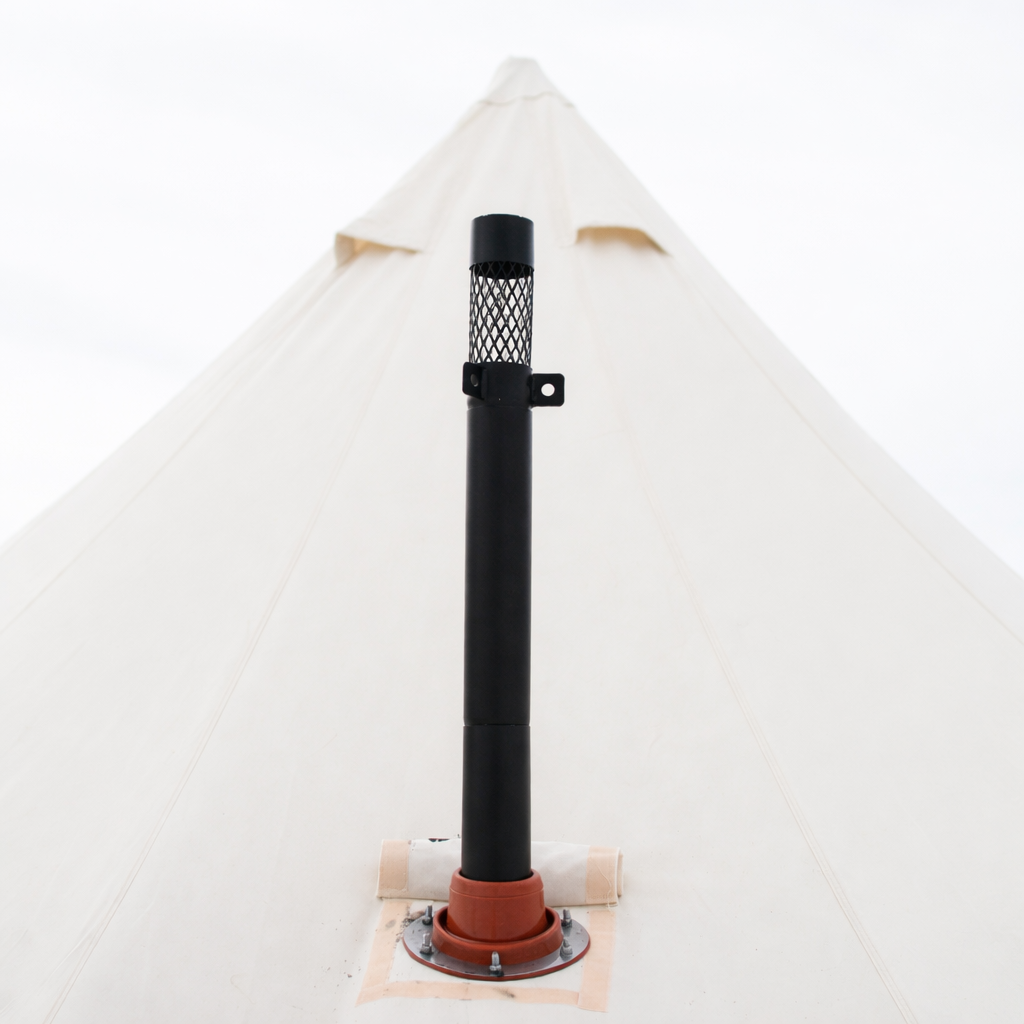

• Stove Jack: Built-in stove jack with 3” opening, adjustable up to 6” (flashing kit sold separately)
• A/C Compatibility: Built-in A/C jack (15,000 BTU A/C unit recommended)
• Power Access: Two protected power cord pass-throughs without compromising waterproofing
• Stability: Reinforced rebar stakes and thick reflective guy lines
• Setup: One-person setup in approximately 15 minutes

Specifications

• Diameter: 16 ft (5 m)
• Interior Area: 201 sq. ft.
• Packed Dimensions: 42 in × 12 in × 12 in
• Tent Weight: 103.4 lbs
• Shipping Weight: 109.1 lbs
• Center Pole Height: 9 ft 9 in
• A-Frame Door Height: 5 ft 6 in
• Canvas Type: 10.10 oz / 340 gsm marine boat-shrunk, double-weave Army Duck canvas

Care & Use

Stout Tents are crafted from premium 100% cotton canvas. To maintain its beauty, breathability, and waterproofing, and to ensure your warranty coverage remains valid, please follow these specialized care instructions.

The “Seasoning” Process (Mandatory for First Use)
• Initial Weathering: Before your first trip, set the tent up and soak it thoroughly with a garden hose, then let it dry completely.
• Sealing the Fibers: This process allows the cotton fibers to swell and the needle holes in the seams to shrink, creating a natural waterproof seal. If skipped, the tent may “mist” inside during the first rainfall.

Moisture & Mildew Prevention
• Bone Dry Storage: Never store your canvas tent damp or wet. This is the most important rule for canvas. Even a few hours in a bag while damp can cause irreversible mold and mildew damage.
• The 24-Hour Rule: If you must pack up in the rain, you must re-pitch the tent within 24 hours in a dry location until the canvas is “bone dry” to the touch before final storage.
• Airflow: Canvas is naturally breathable, but keeping windows or vents slightly open reduces internal condensation and prevents a “musty” smell during use.

Cleaning & Fabric Care
• Dry Brushing: Most dirt and dried mud can be removed once dry using a stiff-bristled brush.
• Water Only: For deeper cleaning, use only cold water. Never use detergents, bleach, or dish soap, as these will destroy the canvas’s natural protective oils and waterproof coating.
• Bird Droppings & Sap: Clean these off as soon as possible with water to prevent permanent staining or degradation of the fabric.

Zippers & Hardware
• Tensioning: Cotton canvas shrinks and expands based on humidity. Regularly check your guy lines; if the canvas is too tight during rain, it stresses the seams. If too loose, water can pool on the roof.

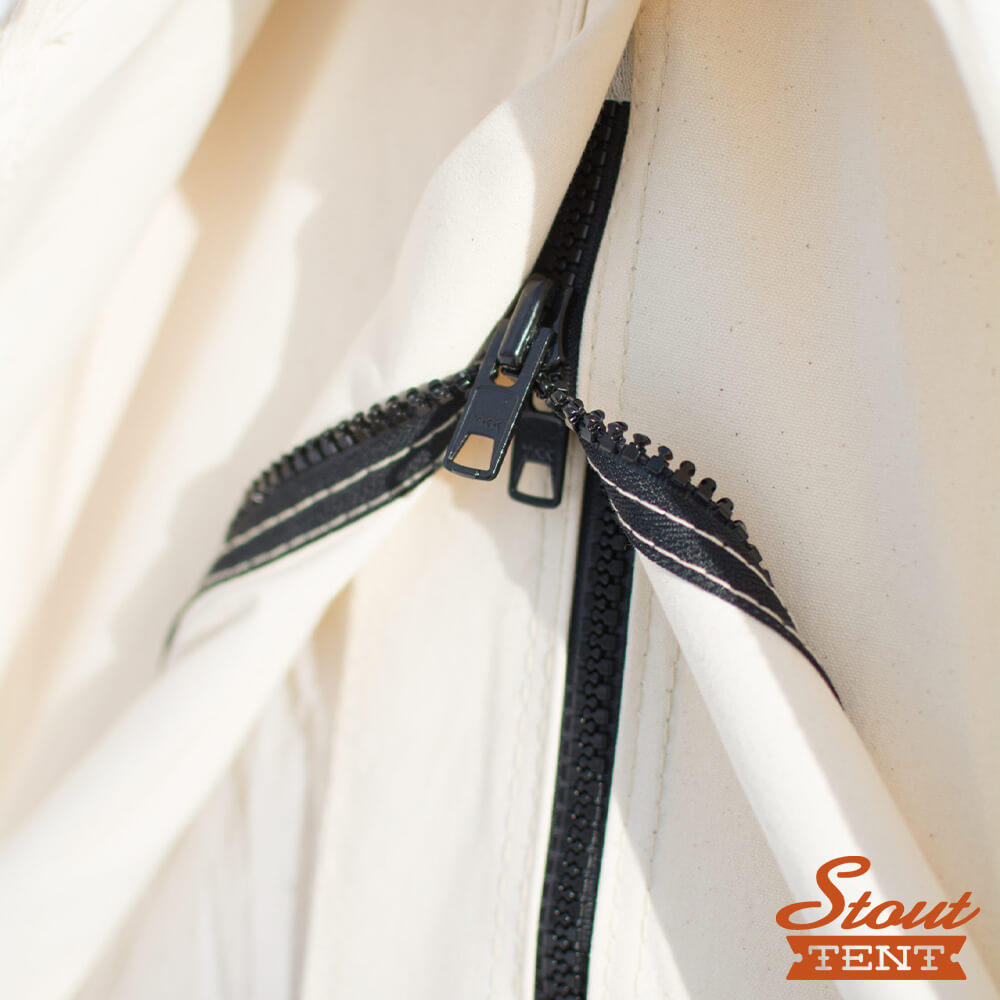

• Zipper Care: Do not force zippers. If a zipper is sticking, check for fabric obstructions and clean the teeth with a brush. Apply a specialized zipper lubricant or wax periodically.

Safe Operation
• Stove Safety: If using a wood stove, ensure the stove jack is properly installed and that the chimney pipe has a spark arrestor to prevent embers from landing on the roof.
• No Open Flames: Never use candles or open flames inside the tent.
