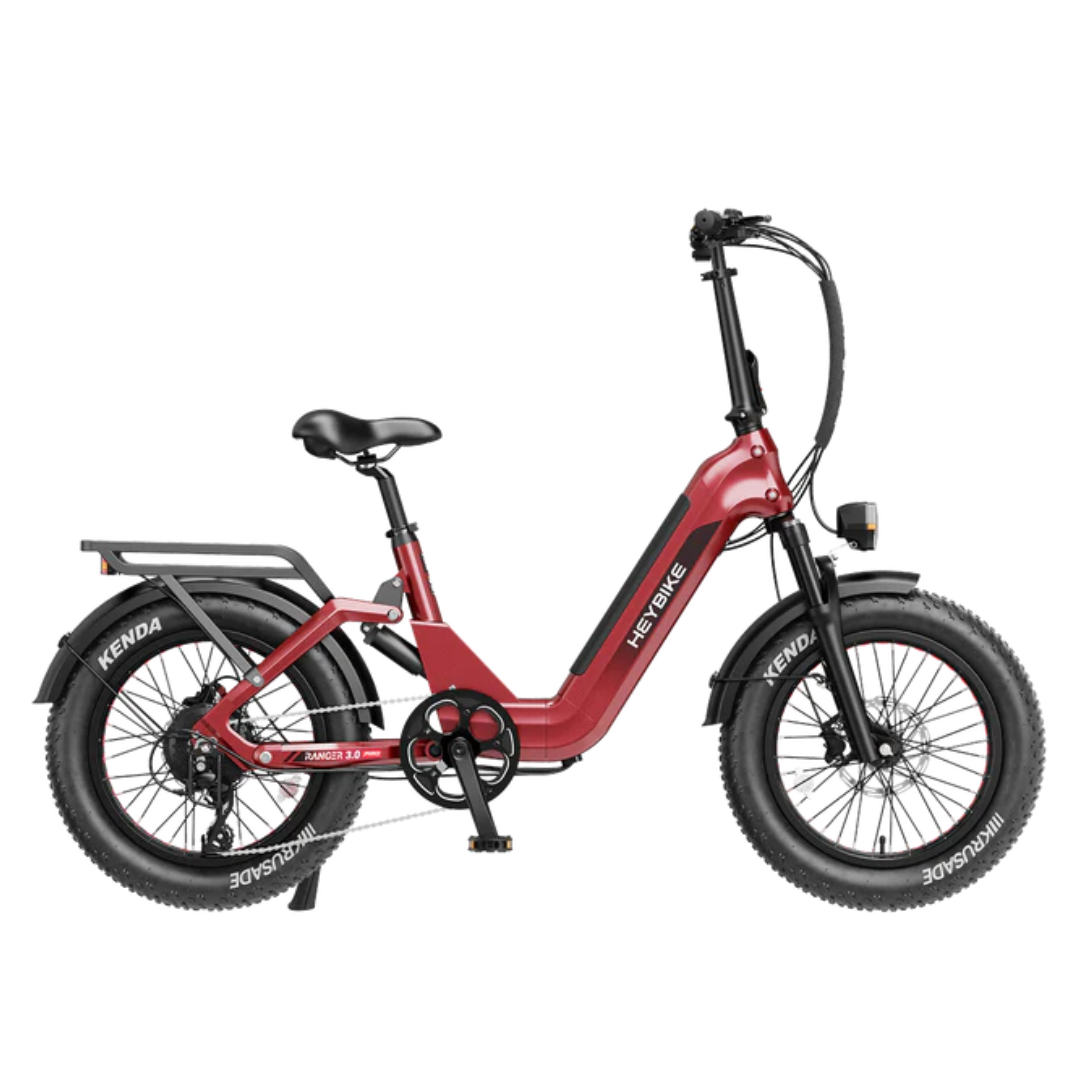

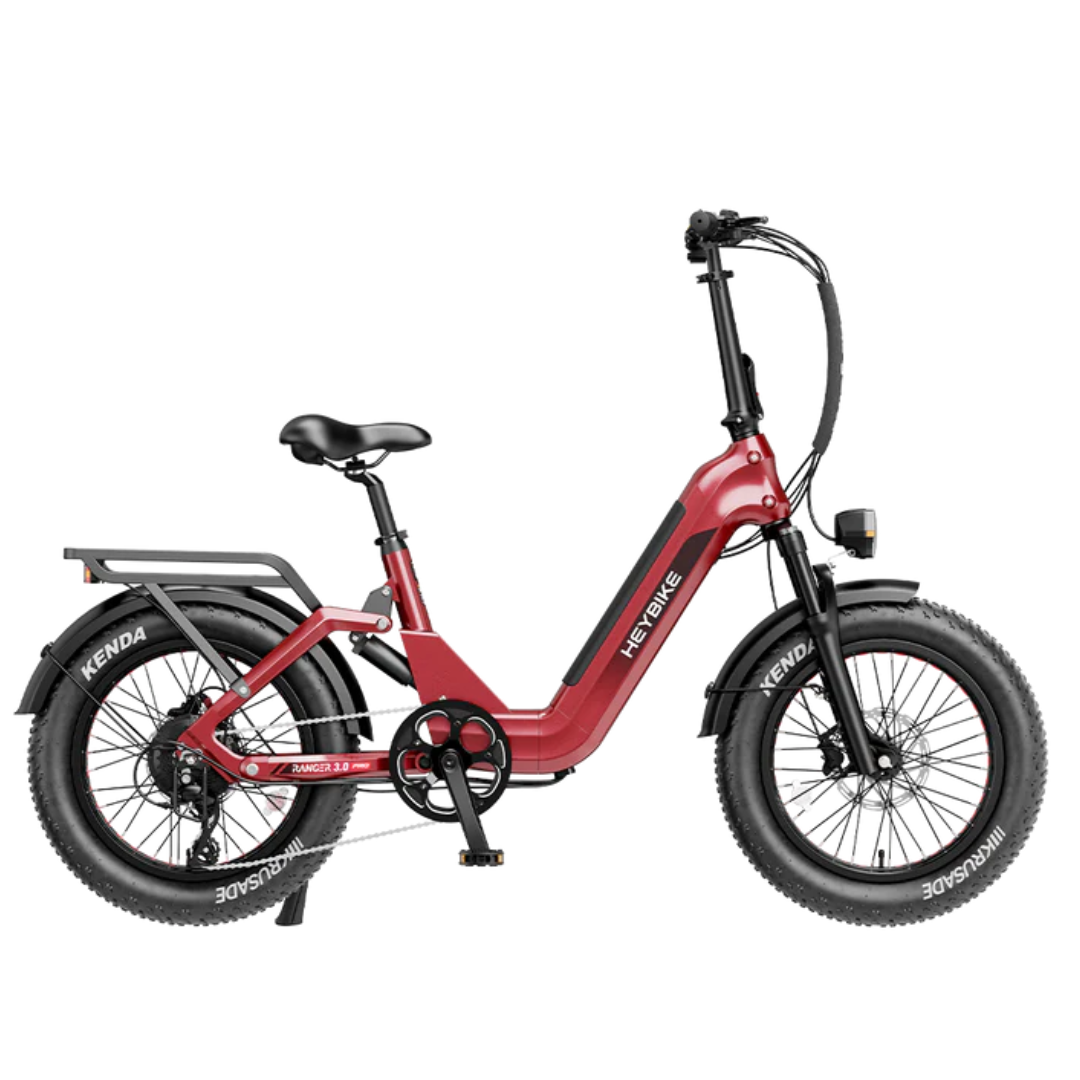

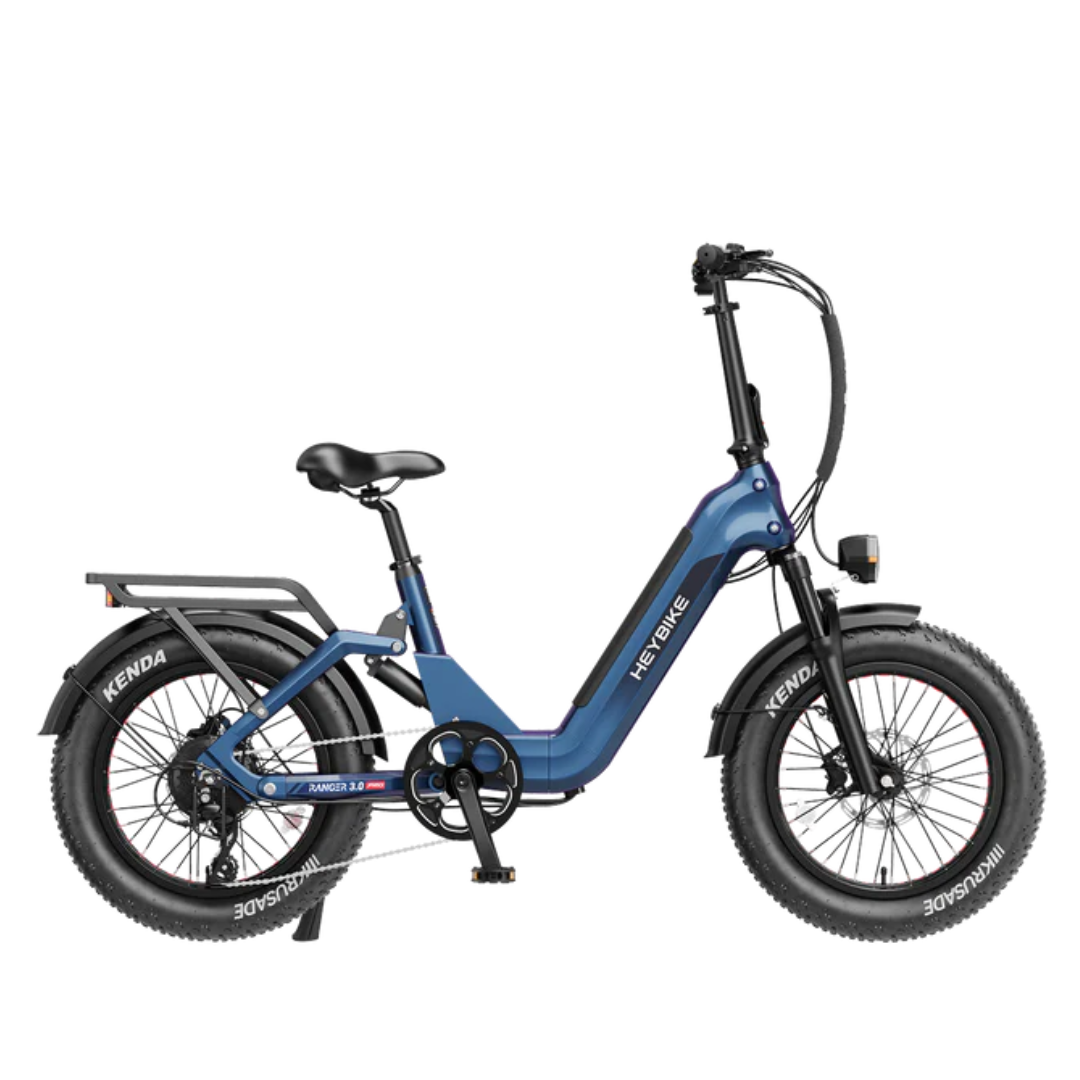

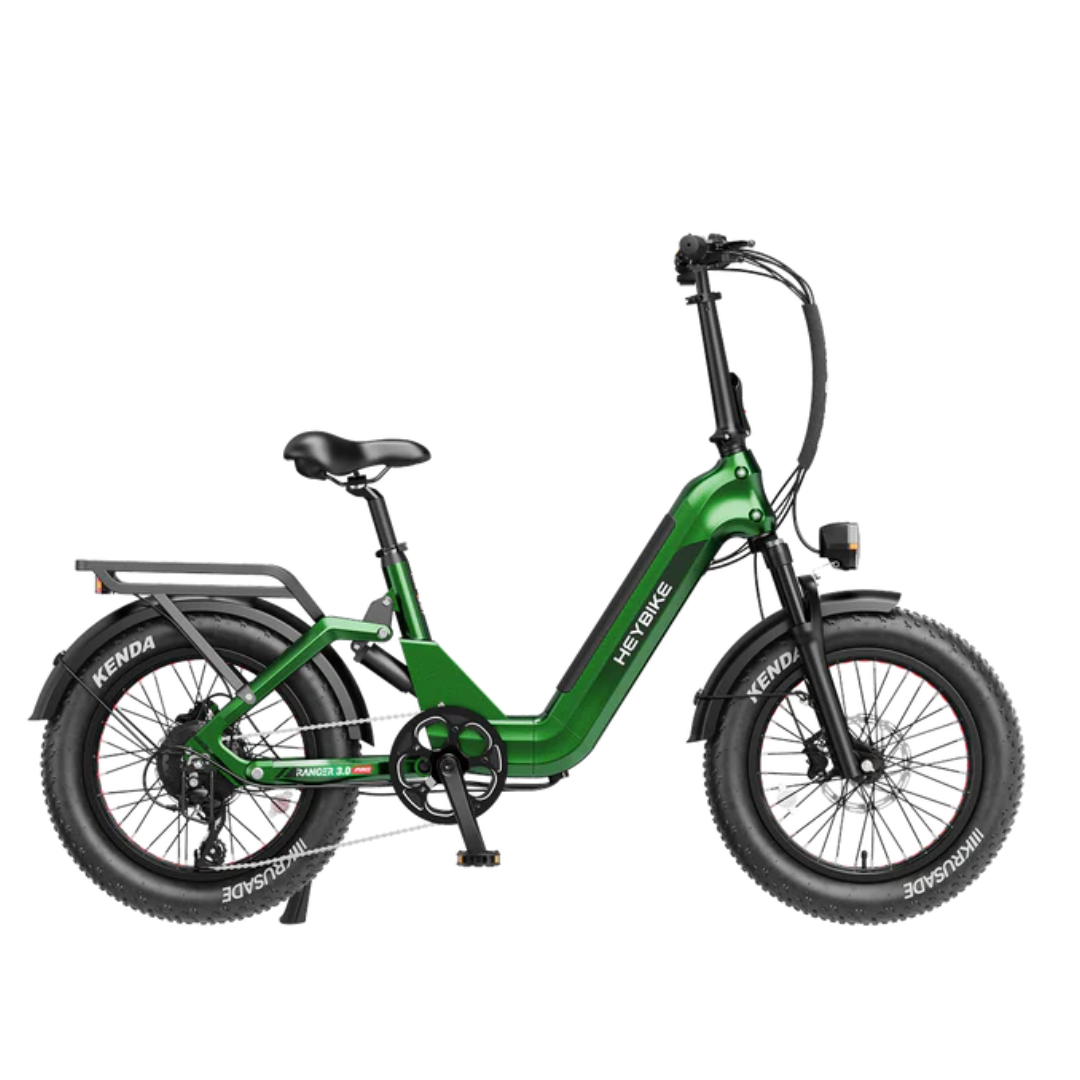

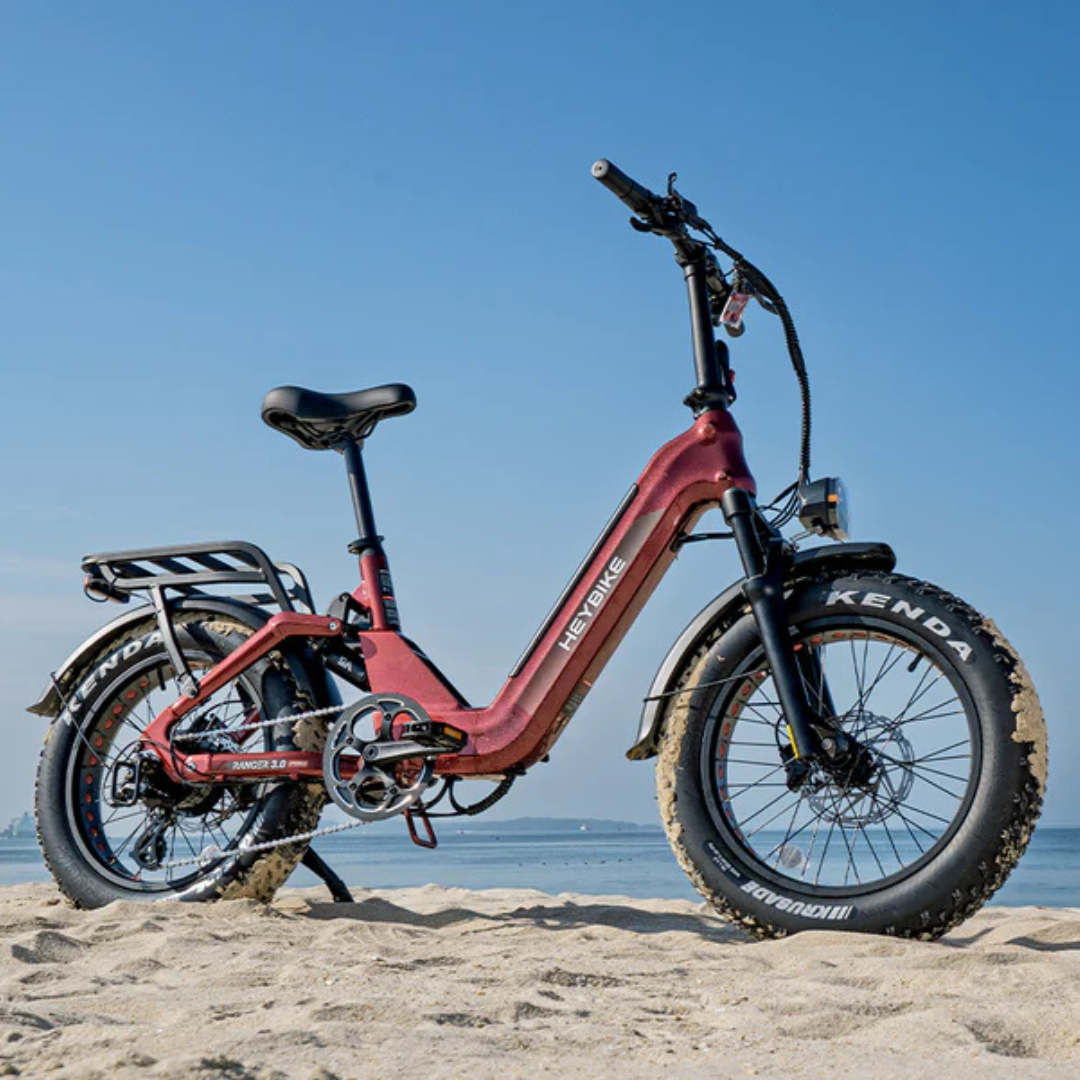

Heybike Ranger 3.0 Pro Folding Full-Suspension Electric Bike

The Heybike Ranger 3.0 Pro is a folding full-suspension fat-tire electric bike designed for commuting, recreational riding, and travel across paved streets and uneven terrain. It features a hydroformed 6061 aluminum alloy step-through frame, a hydraulic front suspension fork, an adjustable rear air shock, and 20" x 4" Kenda fat tires.

Powered by a 750W rear hub motor with up to 1,400W peak output and 80 Nm of torque, the Ranger 3.0 Pro reaches speeds of up to 28 mph. Its 720Wh removable lithium-ion battery supports a listed maximum range of up to 90 miles.

The Ranger 3.0 Pro includes a torque sensor, Shimano Altus 8-speed drivetrain, hydraulic disc brakes, TFT color display, NFC startup, Heybike Smart App connectivity, front light with horn, rear light with brake and turn signals, front and rear fenders, and a rear rack. Its folding frame and listed 440 lb maximum total payload provide flexibility for commuting, storage, and cargo-carrying applications.

Key Features

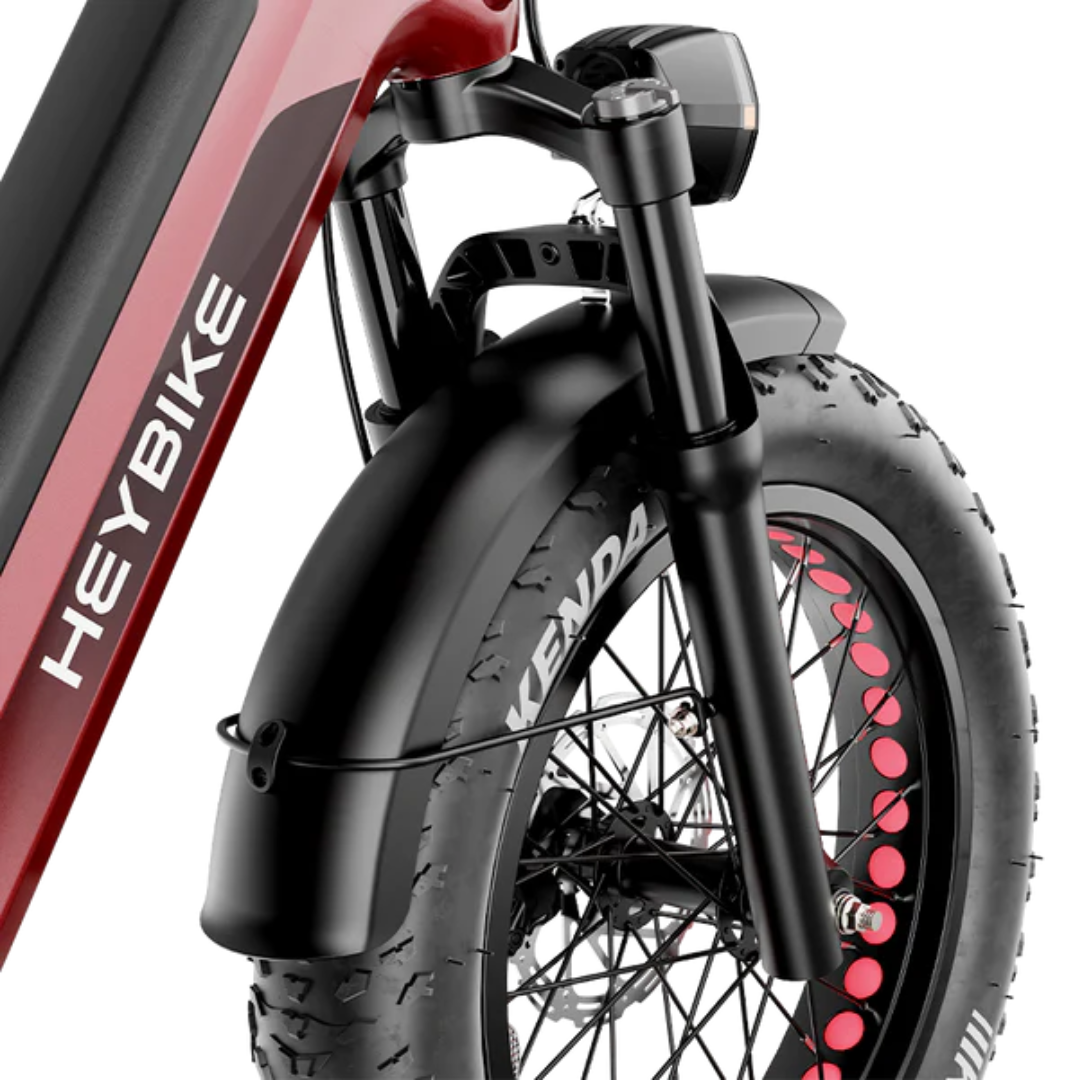

• Full-Suspension Design: A 65 mm-travel hydraulic front fork and adjustable rear air shock help improve comfort and control across uneven surfaces.

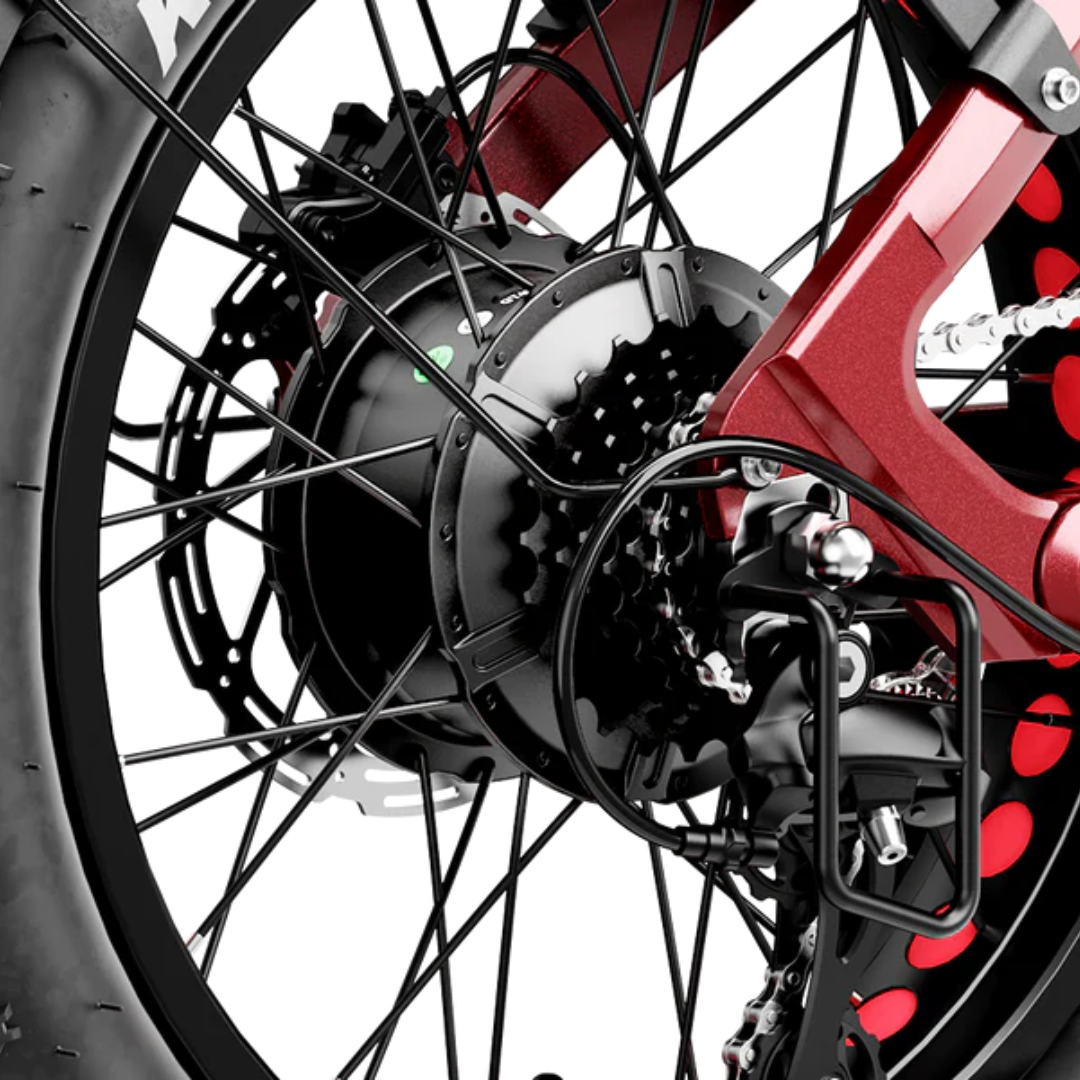

• 750W Rear Hub Motor: The rear hub motor delivers 750W of sustained power, up to 1,400W peak output, and 80 Nm of torque.
• 720Wh Removable Battery: The removable lithium-ion battery supports a listed maximum range of up to 90 miles.
• Torque Sensor: The torque sensor adjusts motor assistance according to the rider’s pedaling effort for a more natural riding response.

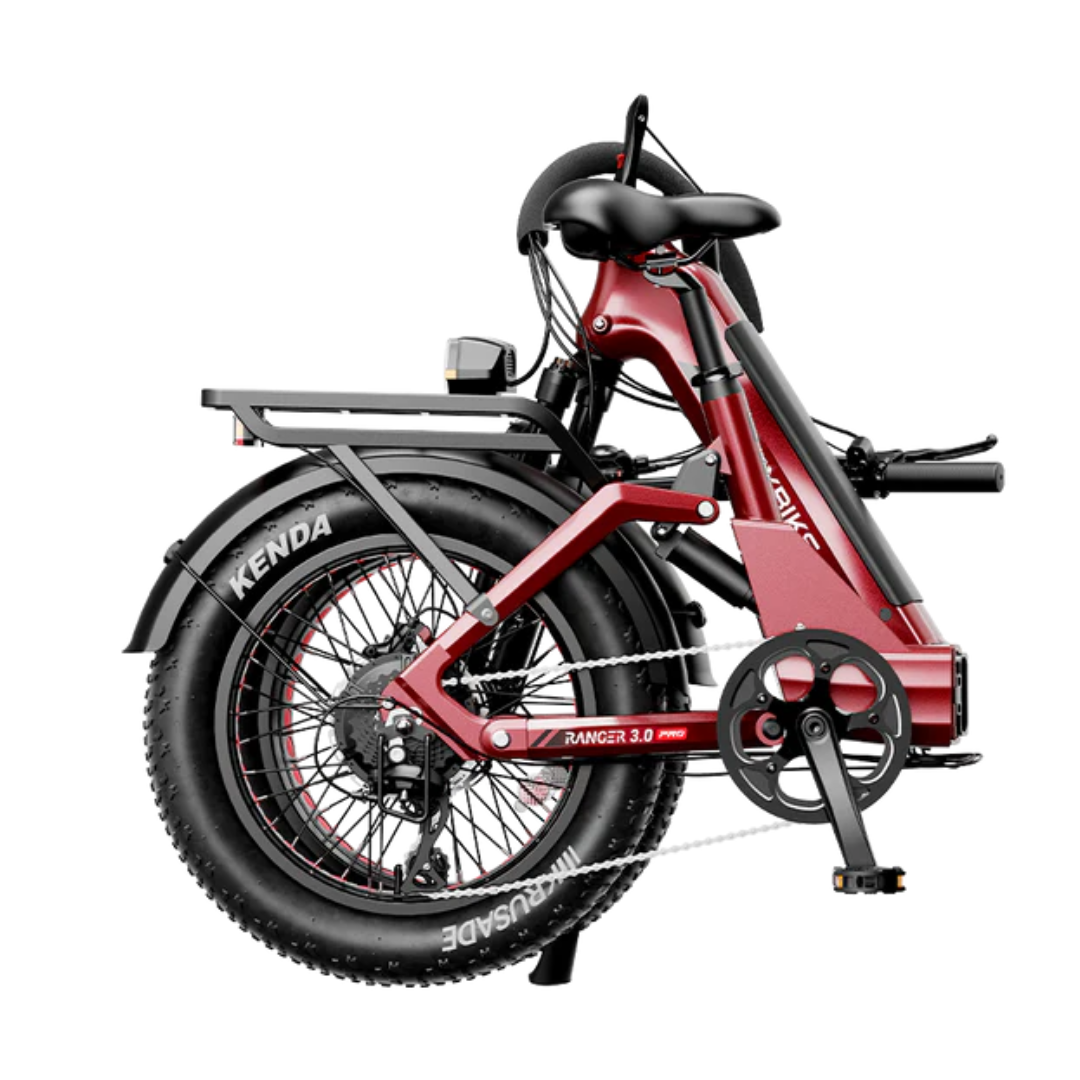

• Folding Step-Through Frame: The folding hydroformed aluminum frame supports easier mounting, transportation, and storage.

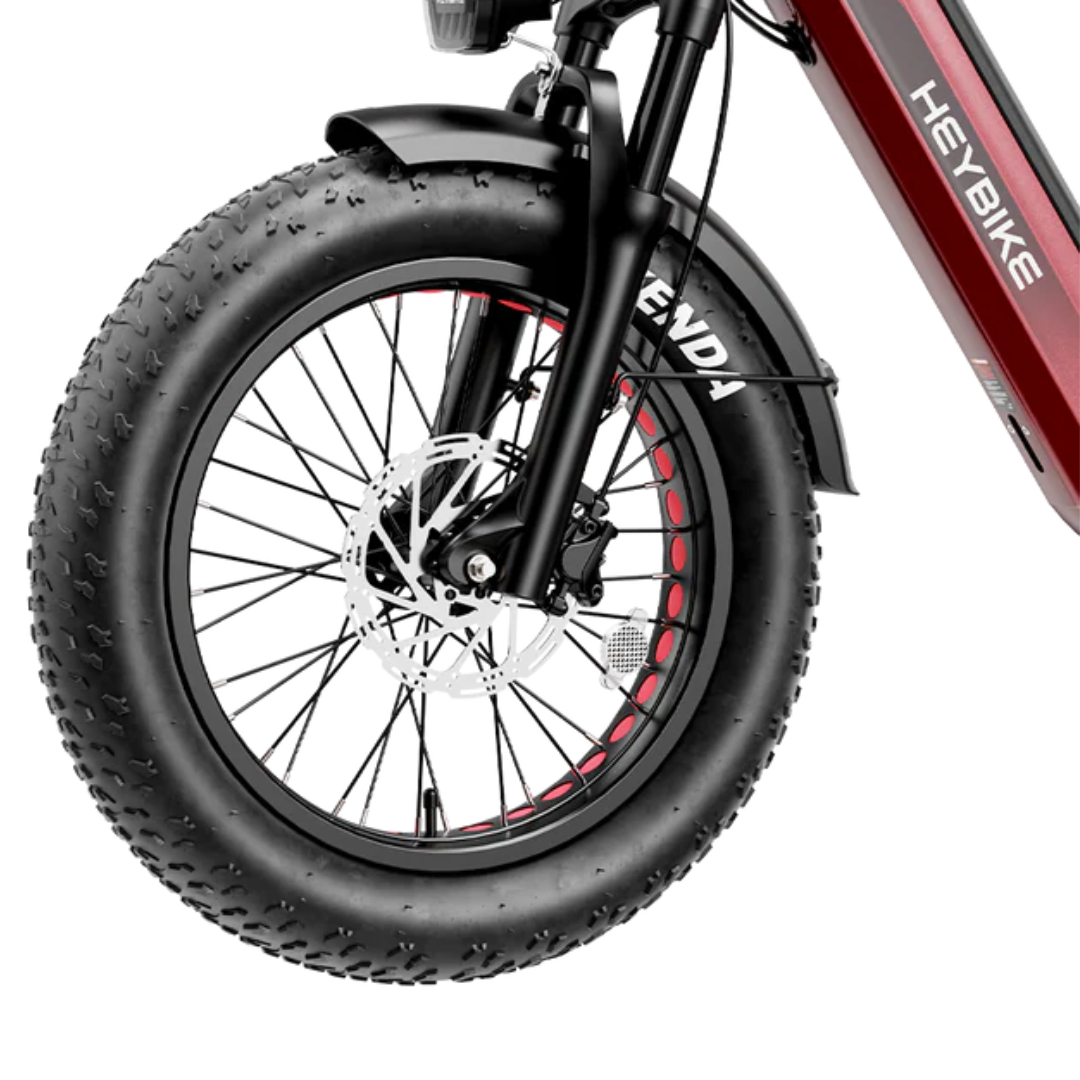

• 20" x 4" Kenda Fat Tires: Puncture-protected fat tires provide traction and cushioning across different riding surfaces.
• Hydraulic Disc Brakes: Hydraulic disc brakes with 2.3 mm-thick rotors provide controlled stopping performance.
• NFC Startup: The bike can be unlocked using an NFC smart card, the Heybike Smart App, or a personalized PIN.
• Shimano Altus 8-Speed Drivetrain: The Shimano Altus rear derailleur provides eight mechanical gears for different speeds and riding conditions.
• Configurable Riding Classes: The bike is configured as Class 2 by default and can be adjusted for Class 1 or Class 3 operation through its settings.
• Integrated Lighting: Includes a front light with horn and a rear light with brake-light and turn-signal functions.

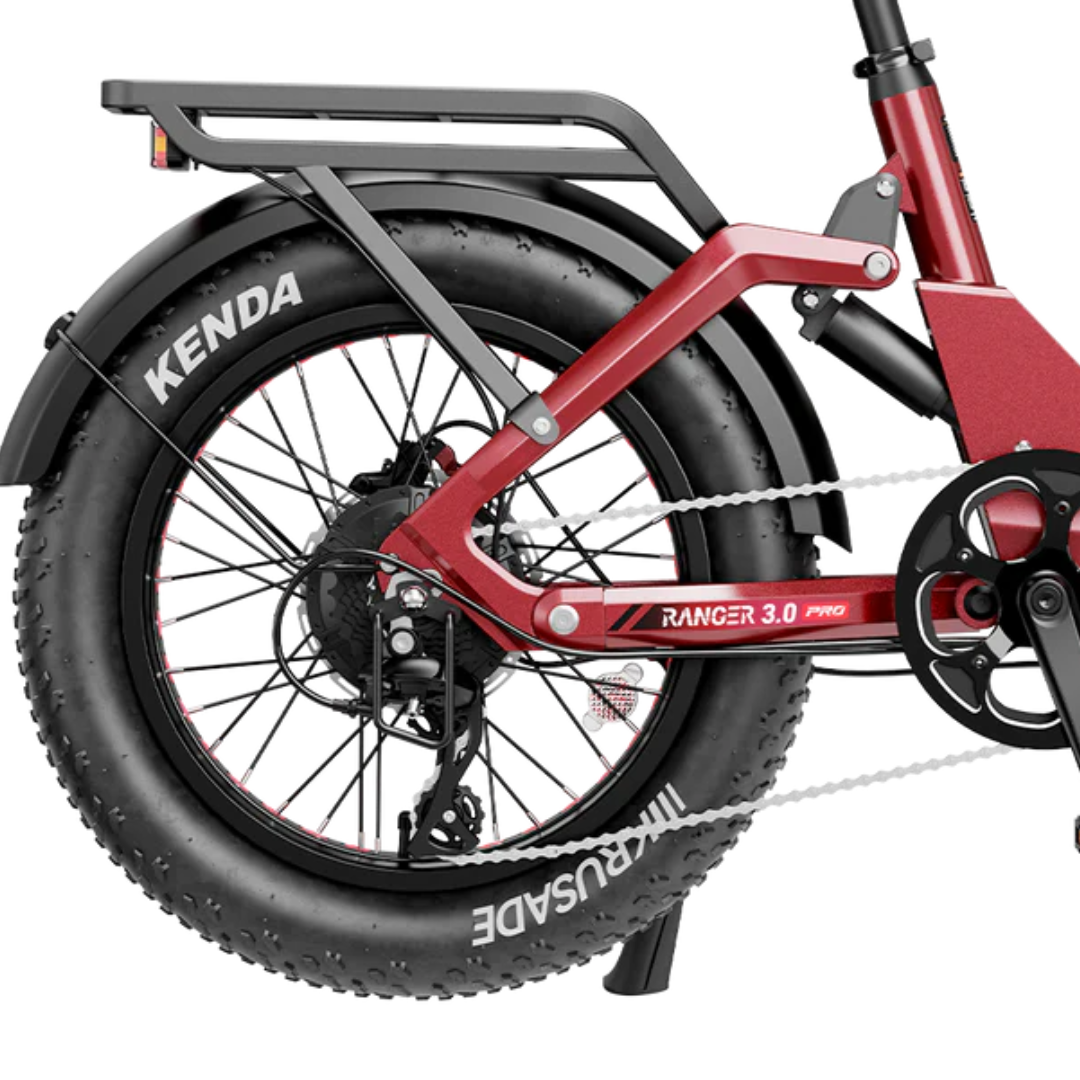

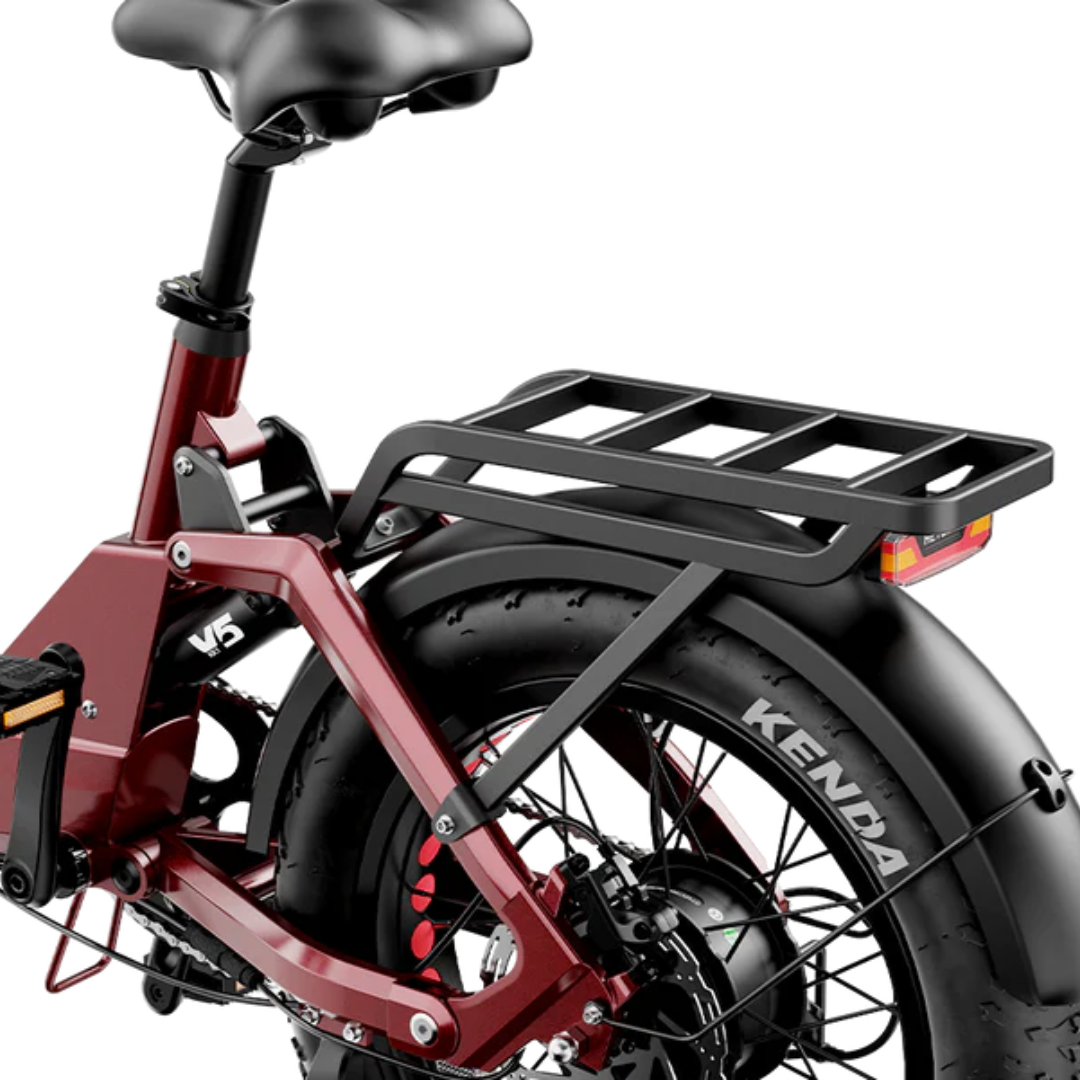

• Rear Rack and Fenders Included: Front and rear fenders and a rear cargo rack are included with the bike.

Specifications

• Frame: Hydroformed 6061 aluminum alloy, folding step-through design
• Front Suspension: Hydraulic suspension fork with 2.6" travel
• Rear Suspension: Adjustable air shock, up to 174 PSI
• Motor: Rear hub motor, 750W sustained and up to 1,400W peak output
• Motor Torque: 80 Nm
• Maximum Speed: Up to 28 mph
• Battery: 720Wh removable lithium-ion battery
• Maximum Range: Up to 90 miles
• Charger: 2A charger with 54.6V output and 100–220V AC input
• Charging Time: Approximately 6–8 hours for a full charge
• Pedal-Assist Sensor: Torque sensor
• Throttle: Half-twist throttle
• Default Classification: Class 2 with throttle and 20 mph maximum speed
• Configurable Classifications: Class 1, Class 2, or Class 3
• Rear Derailleur: Shimano Altus 8-speed
• Tires: Kenda 20" x 4" puncture-protected fat tires
• Brakes: Hydraulic disc brakes
• Brake Rotor Thickness: 0.09"

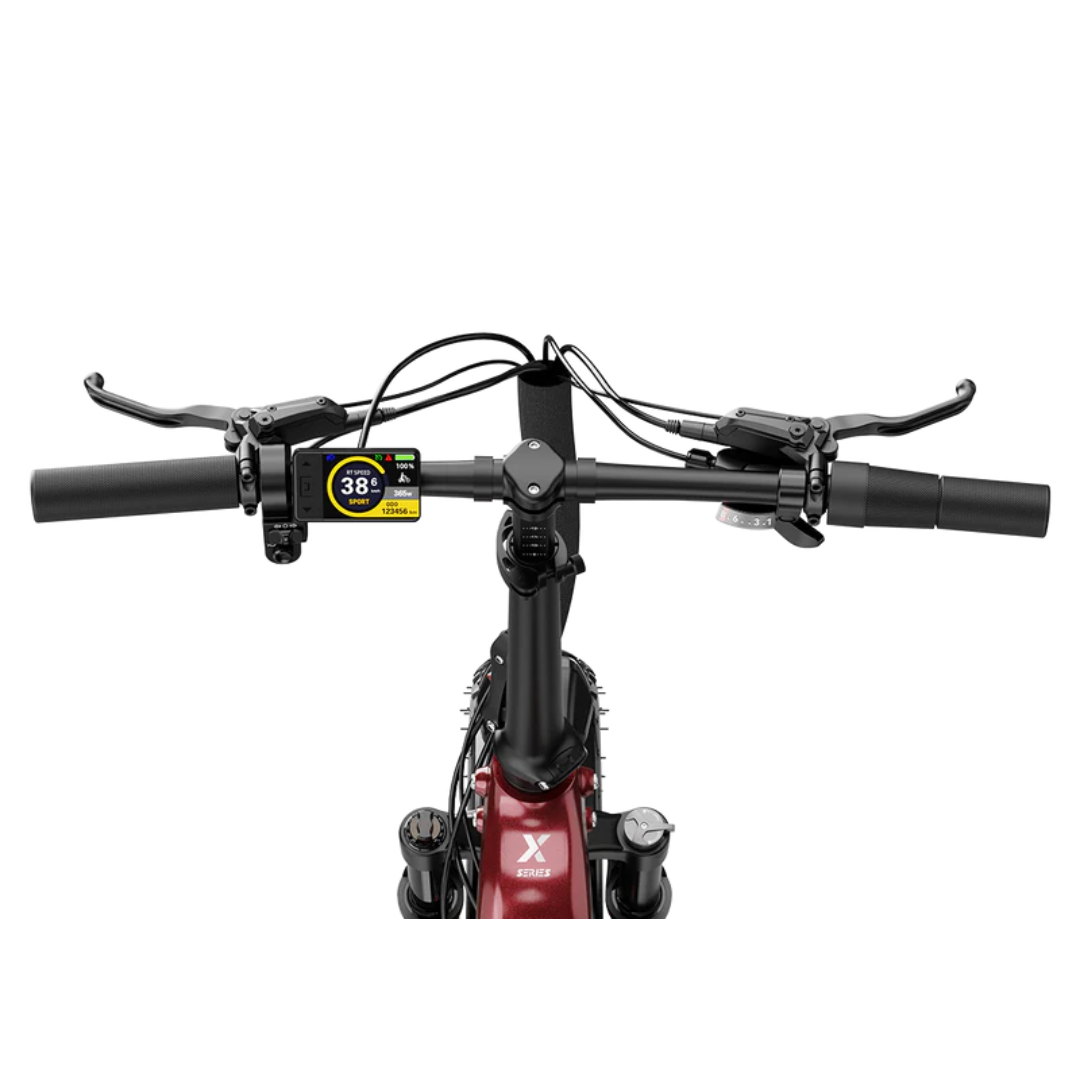

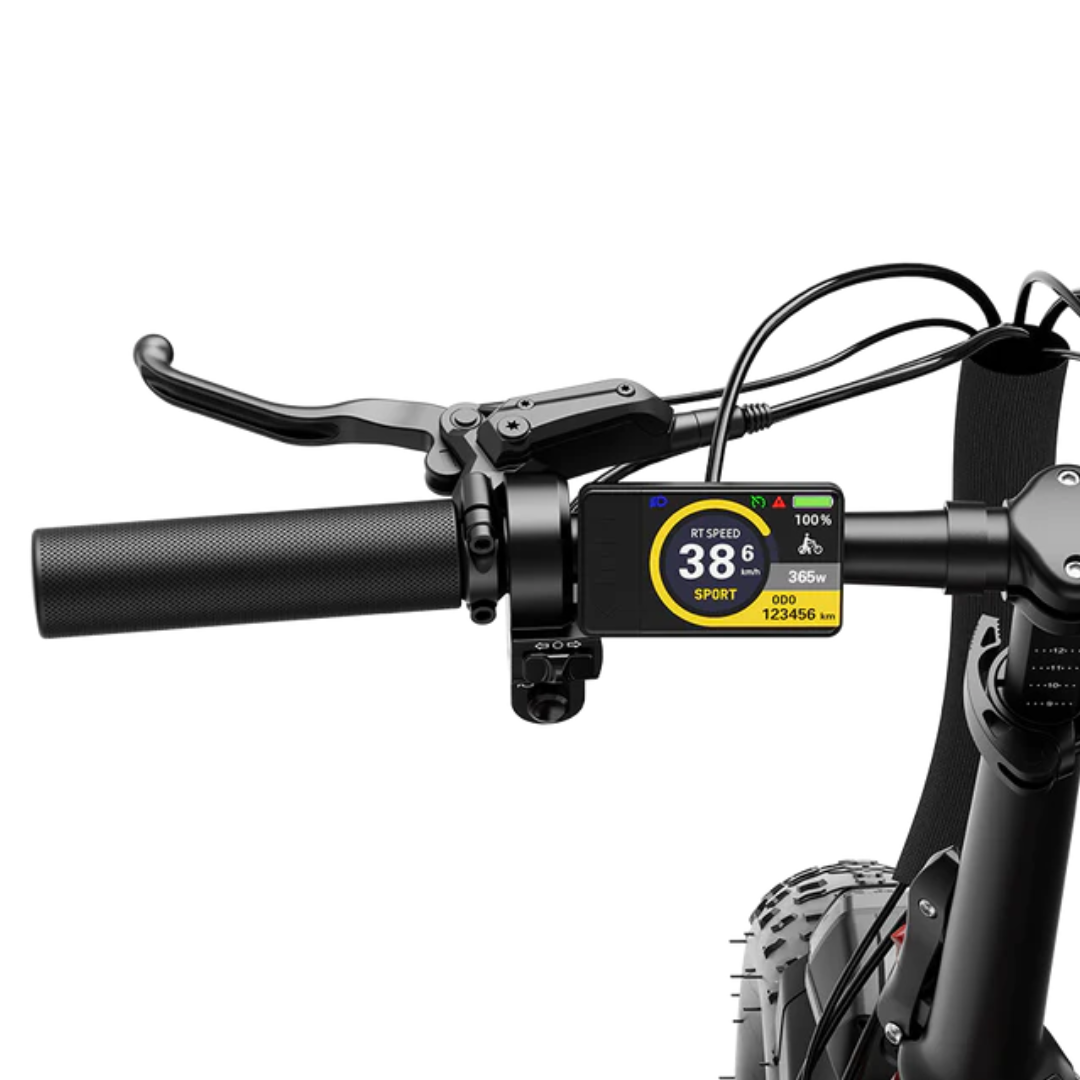

• Display: TFT color display with NFC startup
• Unlocking Methods: NFC smart card, Heybike Smart App, or personalized PIN
• App Compatibility: Heybike Smart App

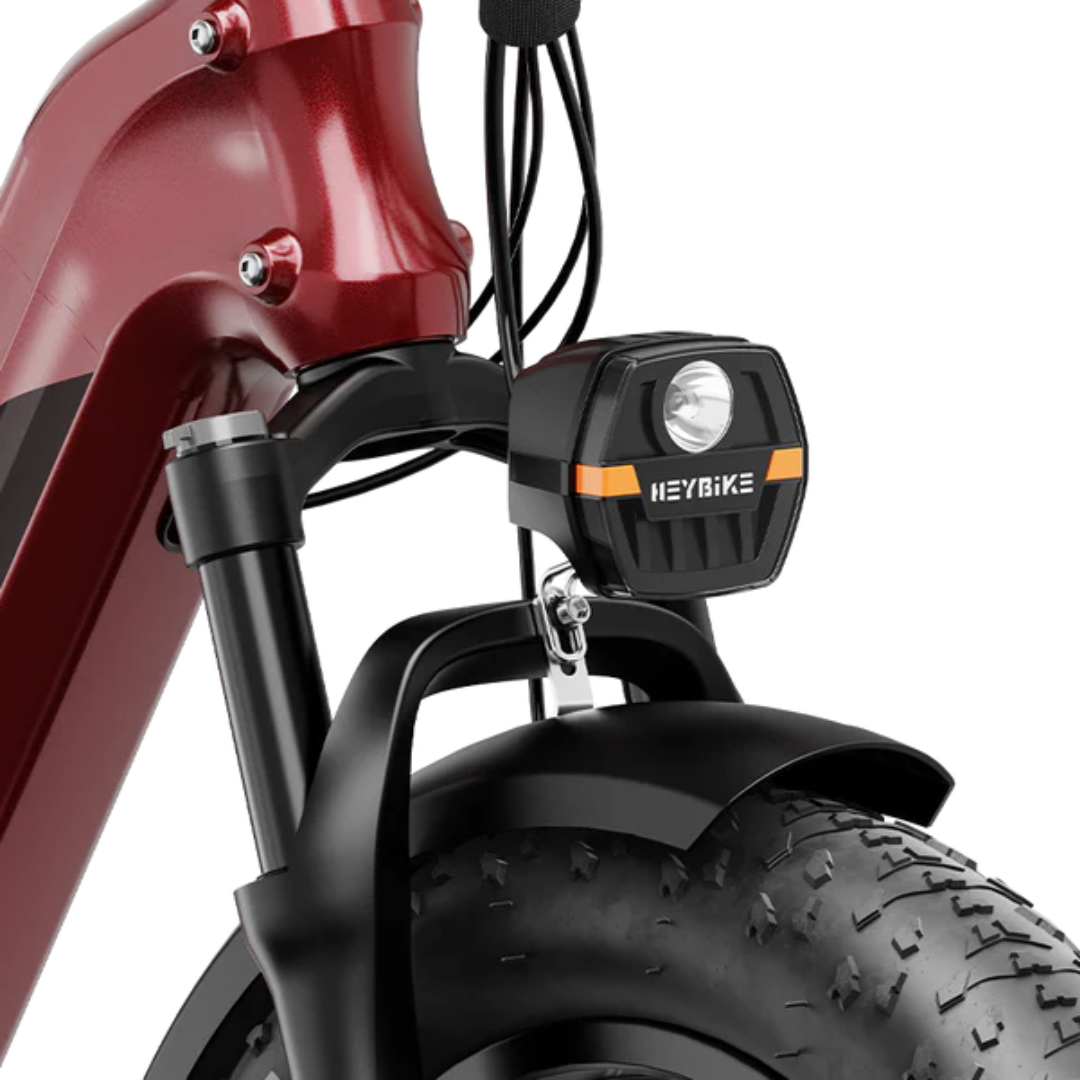

• Front Light: Front light with horn
• Rear Light: Taillight with brake-light and turn-signal functions
• Kickstand: Alloy kickstand
• Rear Rack Capacity: 100 lb
• Maximum Total Payload: 440 lb combined rider and cargo weight
• Bike Weight: 75 lb
• Water Resistance: IPX5-rated for the complete bike; suitable for light rain but not recommended for heavy downpours or submersion.
• Certification: TÜV certified to UL 2849 safety standards

Size Guide

• Folded Dimensions: 41.7" x 20.5" x 32.7"
• Unfolded Dimensions: 69.7" x 25.6" x 52"

Included

• Ranger 3.0 Pro electric bike
• Front and rear fenders
• Rear rack
• 54.6V/2A charger
• User manual card
• Key
