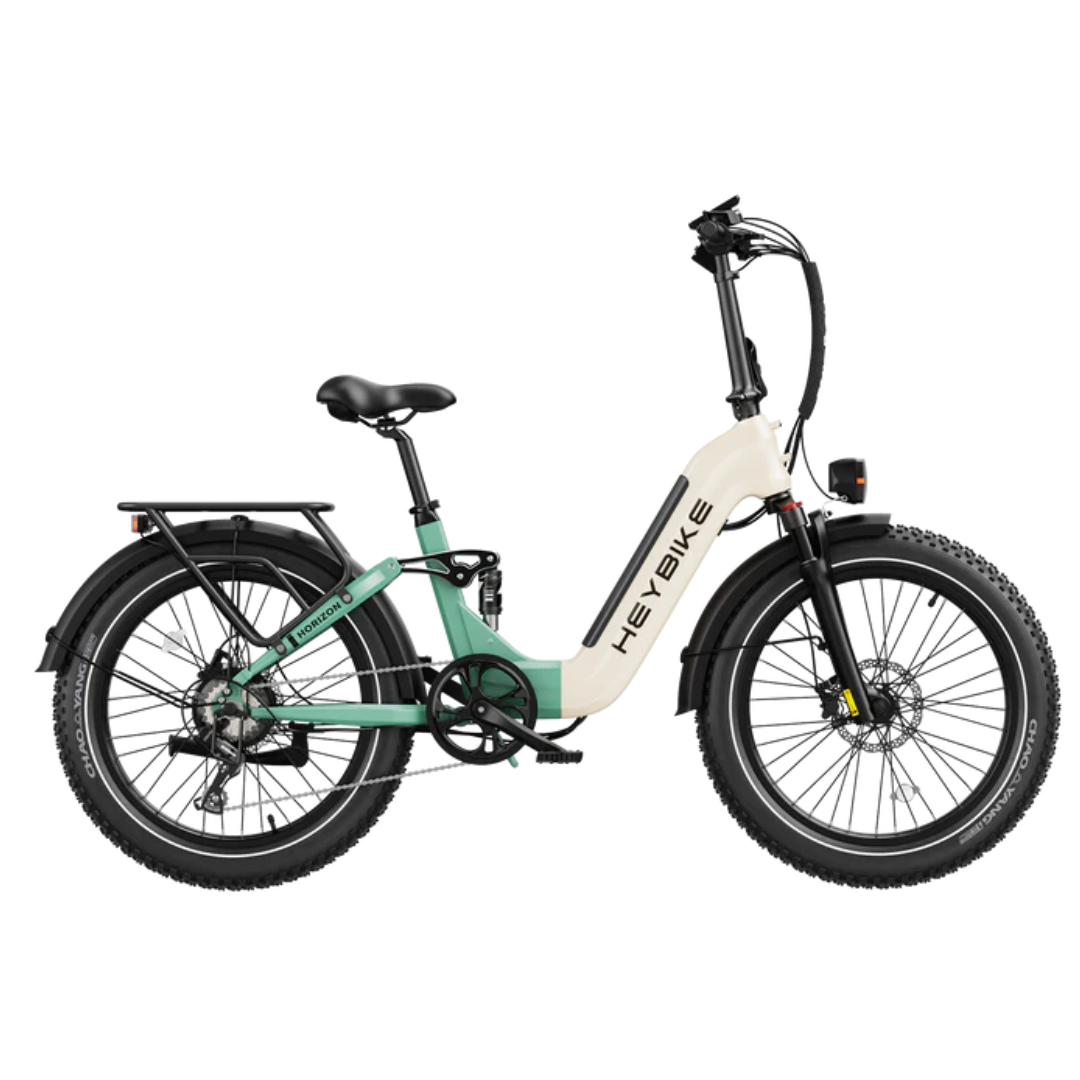

Heybike Horizon Folding Full-Suspension Electric Bike

The Heybike Horizon is a folding full-suspension electric bike designed for commuting, recreational riding, and mixed-terrain use. Its low-step aluminum-alloy frame and compact folding design make it suitable for riders who need a bike that can be stored or transported more easily.

Powered by a 750W brushless geared rear hub motor with a listed peak output of 1400W, the Horizon delivers 80 Nm of torque and a listed maximum speed of 28 mph. Its removable 692Wh lithium-ion battery provides a listed maximum range of up to 55 miles.

The Horizon includes hydraulic front suspension, Horst-link rear suspension, hydraulic disc brakes, Shimano 7-speed shifting, 24" x 4" fat tires, an LCD display, app connectivity, integrated lighting, a rear rack, and a fender. It supports riders from 5'5" to 6'3" and a maximum combined rider and cargo load of 330 lb.

Key Features

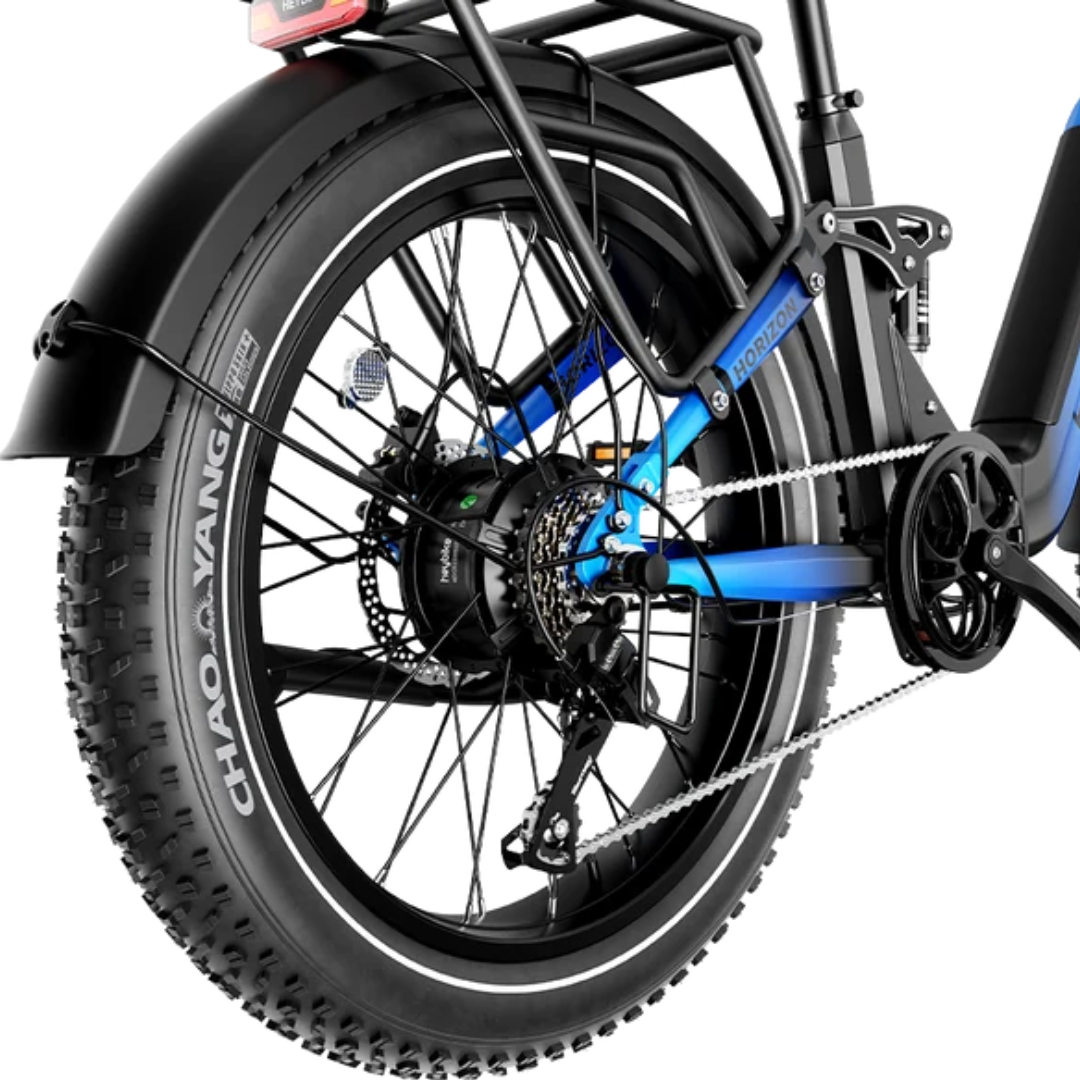

• 750W Hub Motor: Brushless geared rear hub motor provides 750W nominal output, up to 1400W peak output, and 80 Nm of torque.
• 692Wh Removable Battery: Removable lithium-ion battery provides a listed maximum range of up to 55 miles.

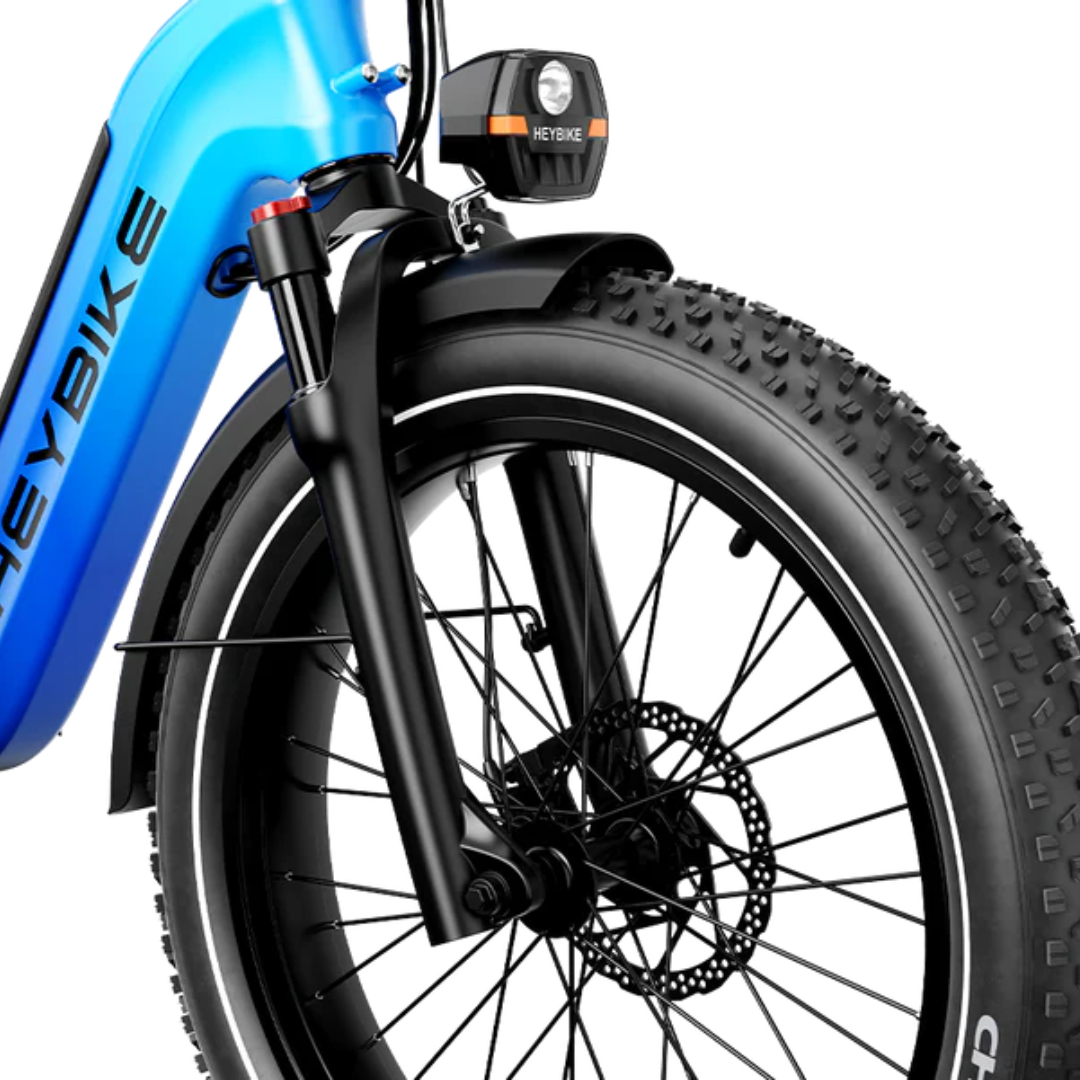

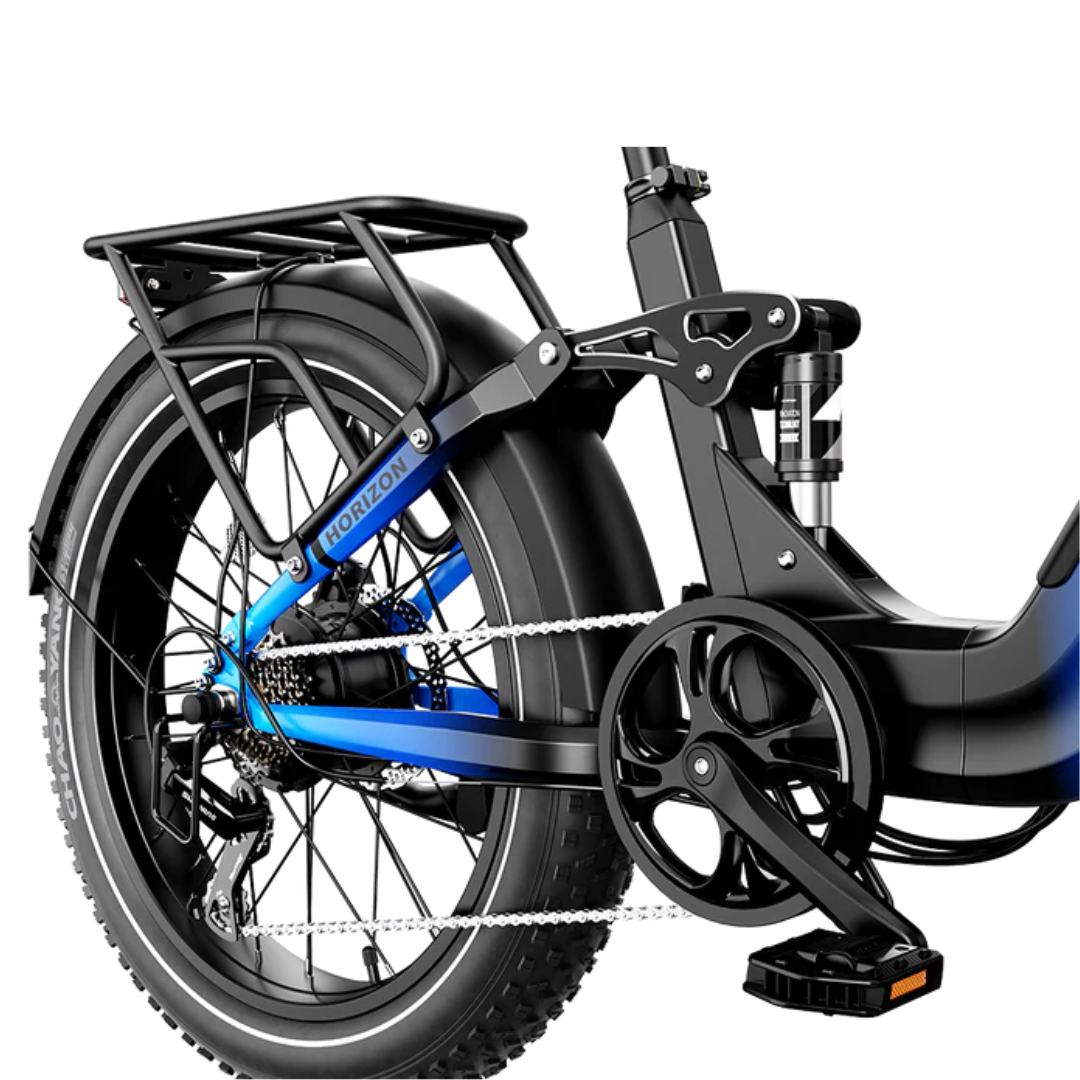

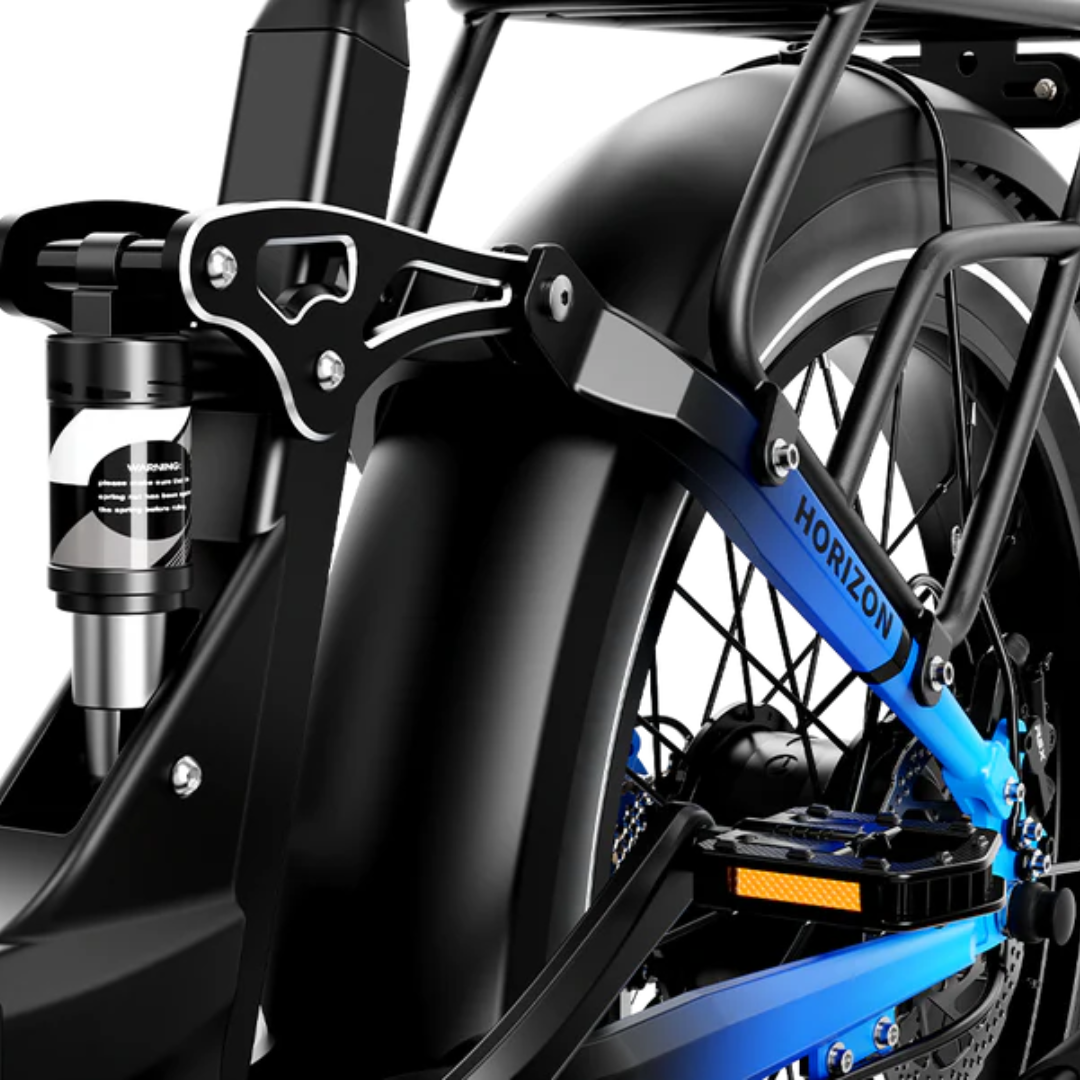

• Full-Suspension System: Combines hydraulic front suspension with Horst-link rear suspension to help reduce impacts on uneven surfaces.
• Compact Folding Design: Folding frame allows the bike to be stored or transported in a more compact configuration.
• 28 mph Maximum Speed: Supports a listed top speed of 28 mph.

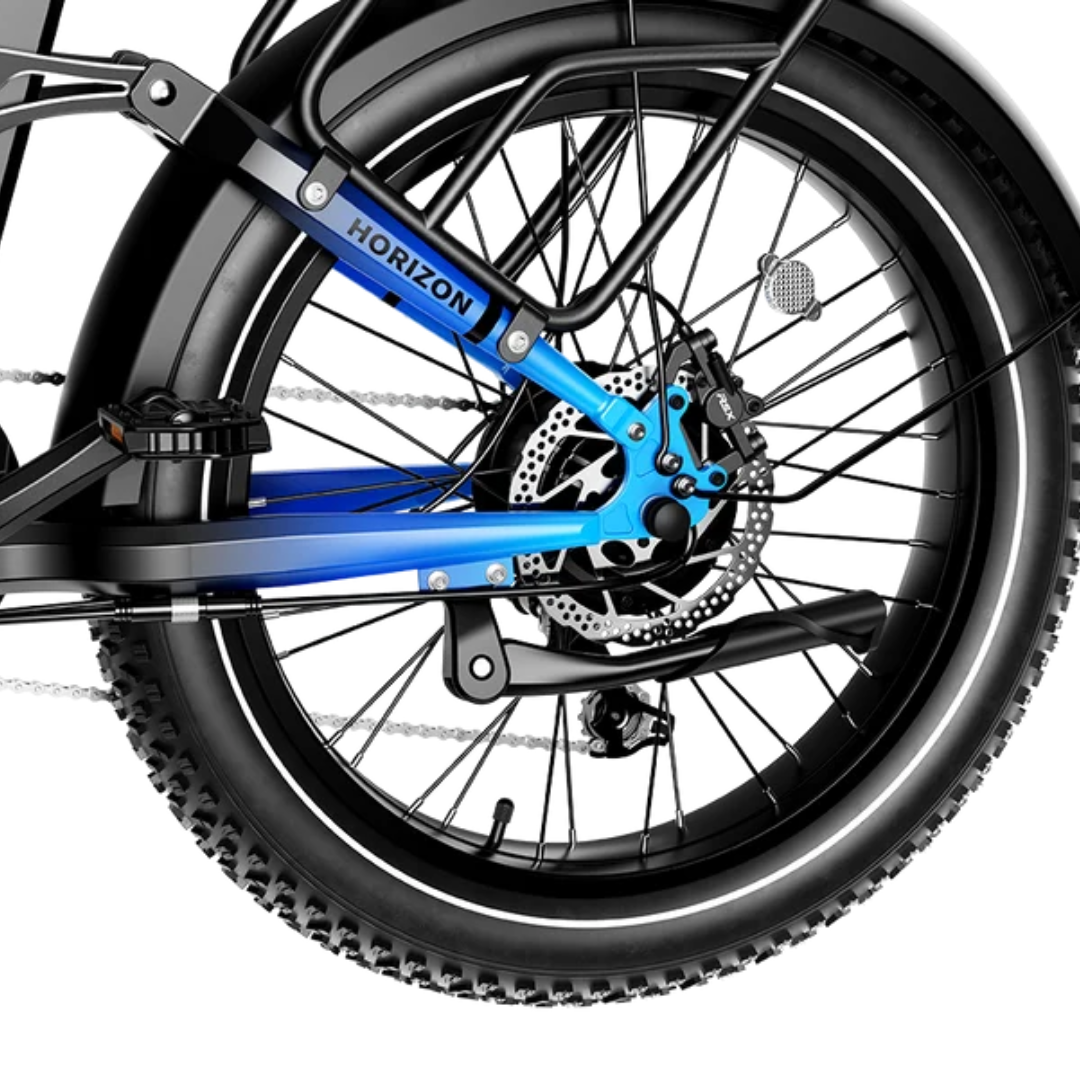

• Hydraulic Disc Brakes: Hydraulic disc brakes provide controlled stopping performance.
• Shimano 7-Speed Drivetrain: Shimano rear derailleur provides seven-speed shifting for different riding conditions.
• 24" x 4" Fat Tires: Puncture-protection fat tires provide traction and riding support across mixed surfaces.
• Heybike App Connection: Connects to the Heybike Smart App for bike controls and personalized settings.

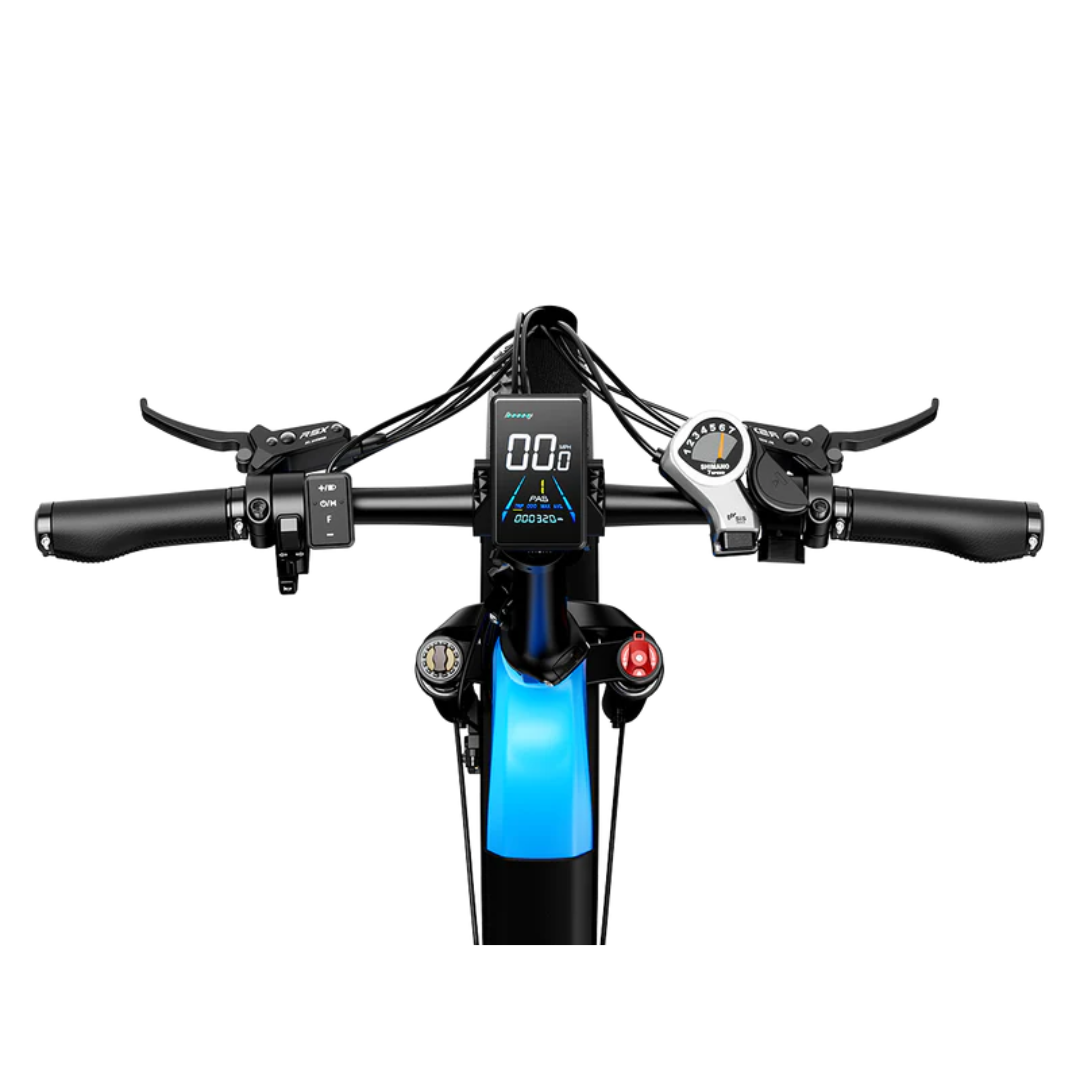

• LCD Display: Integrated display provides access to riding information and pedal-assist settings.
• Integrated Lighting: Includes an automatic LED headlight and an integrated taillight with brake-light functionality.
• Rear Rack and Fender Included: Comes with a rear cargo rack, fender, and the required installation screws.

Specifications

• Frame: Aluminum alloy low-step folding frame
• Suspension: Hydraulic front suspension and Horst-link rear suspension
• Motor: 750W brushless geared rear hub motor, 1400W peak
• Torque: 80 Nm
• Maximum Speed: 28 mph
• Maximum Range: Up to 55 miles
• Battery: 692Wh removable lithium-ion battery
• Charger: 54.6V, 4A output; 100–220V AC input
• Tires: 24" x 4" puncture-protection fat tires
• Spokes: Aluminum alloy
• Brakes: Hydraulic disc brakes
• Rear Derailleur: Shimano 7-speed
• Display: LCD display
• App: Heybike Smart App
• Headlight: Automatic LED headlight
• Taillight: Integrated taillight with brake-light functionality
• Kickstand: Alloy kickstand
• Bike Weight: 79.4 lb
• Maximum Payload Capacity: 330 lb combined rider and cargo weight

Size Guide

• Recommended Rider Height: 5'5"–6'3"
• Maximum Payload Capacity: 330 lb

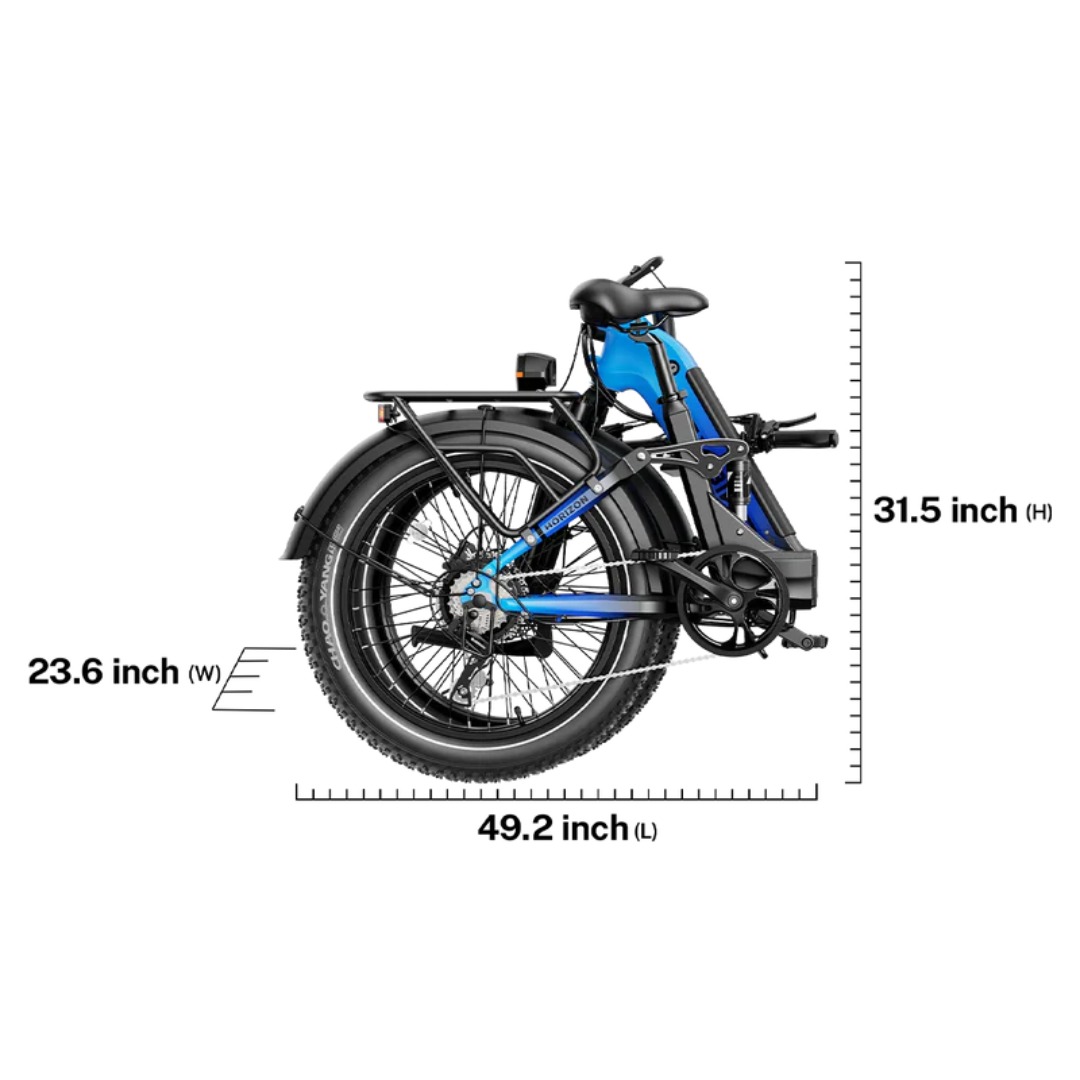

• Folded Dimensions: 49.2" L × 23.6" W × 31.5" H
• Unfolded Dimensions: 75.6" L × 24.4" W × 46.5" H

Included

• Horizon E-Bike
• Rear Rack
• Fender
• Alloy Kickstand
• Rack and Fender Installation Screws
