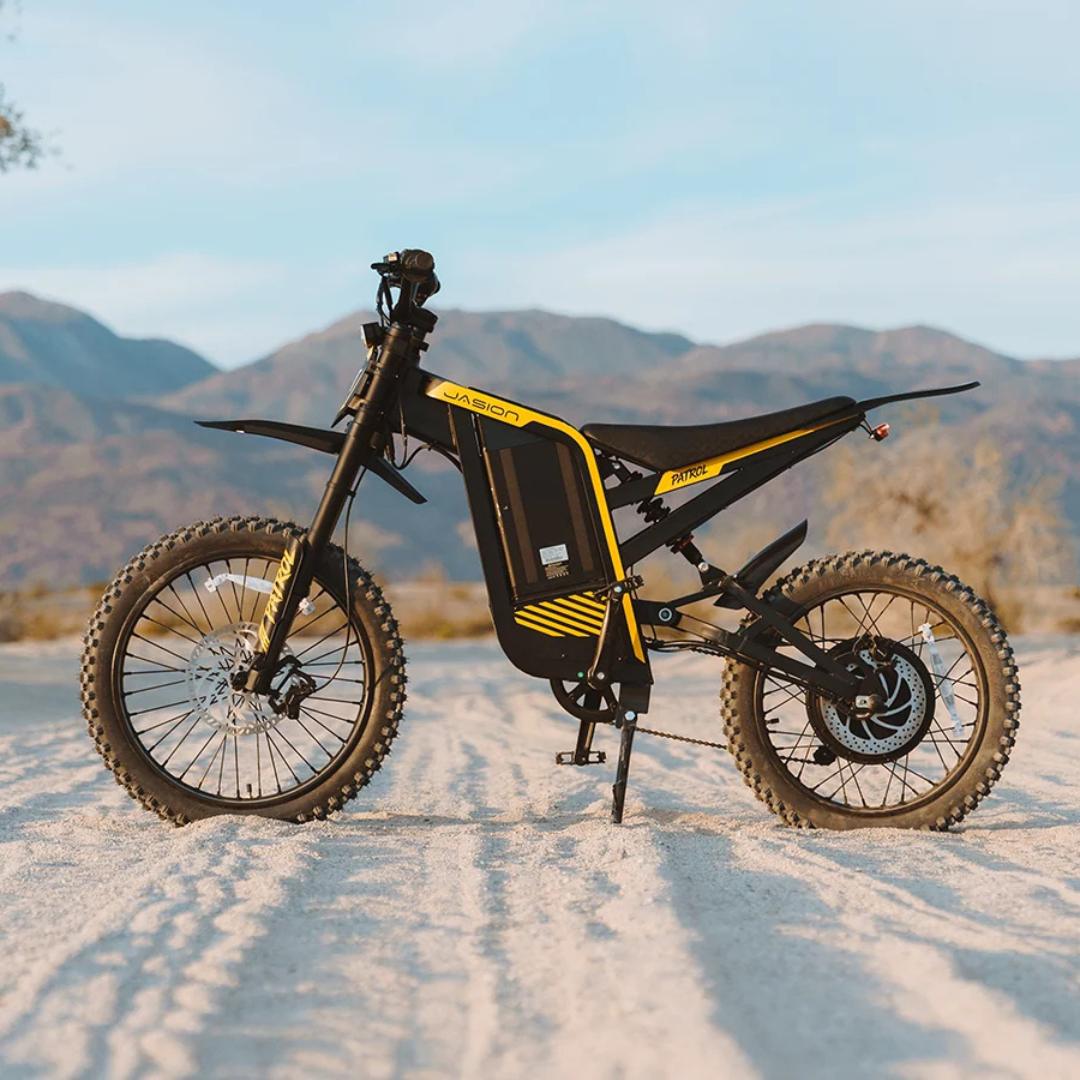

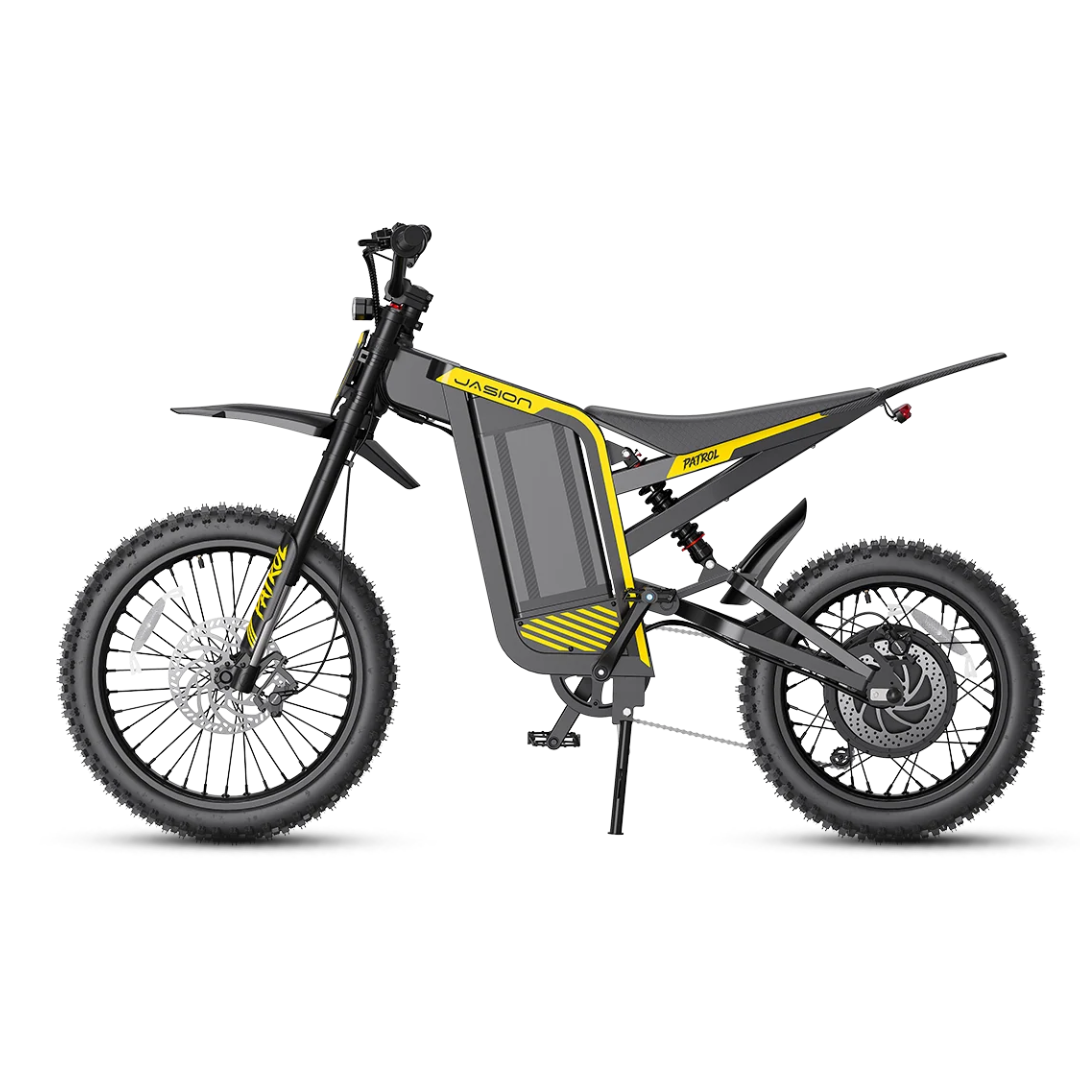

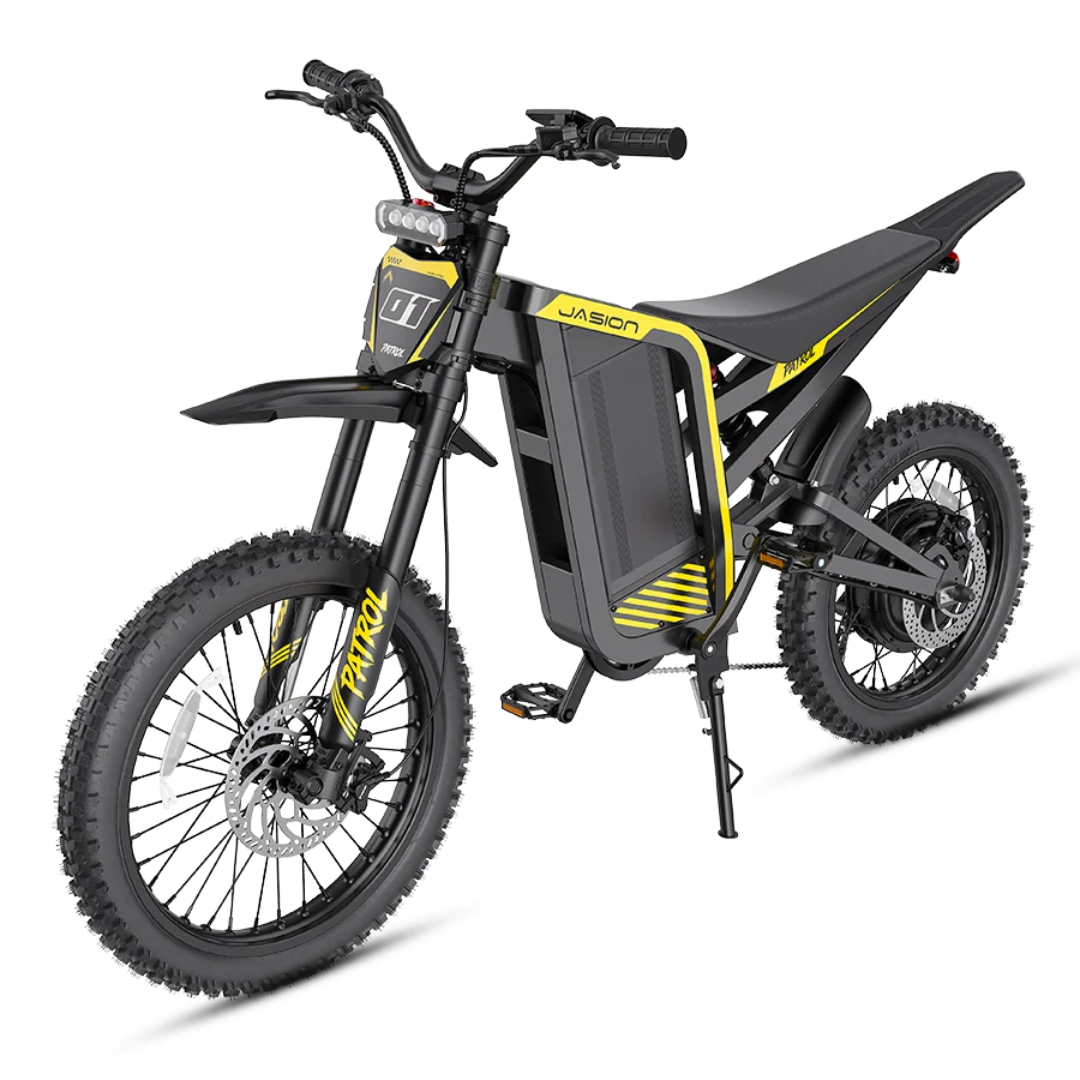

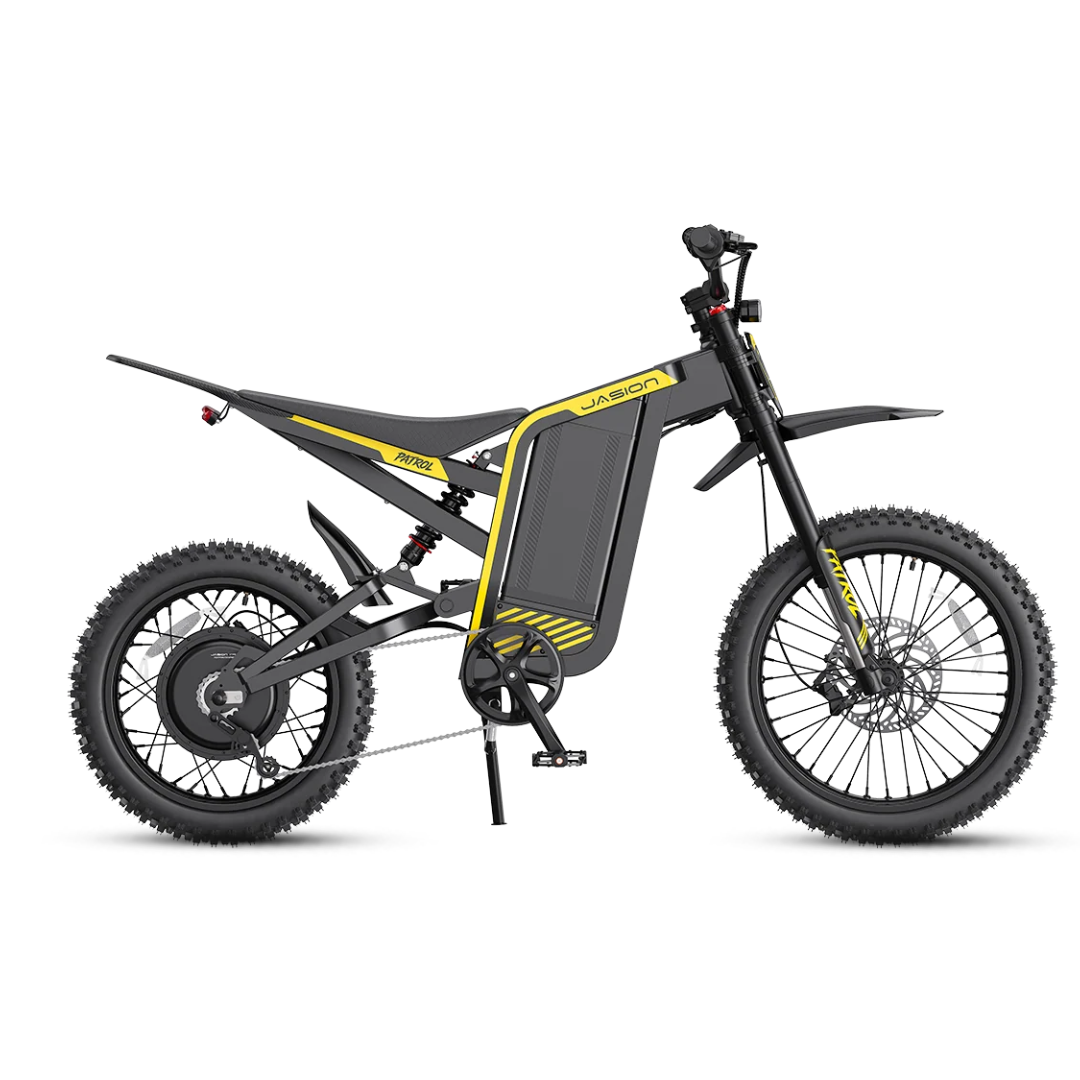

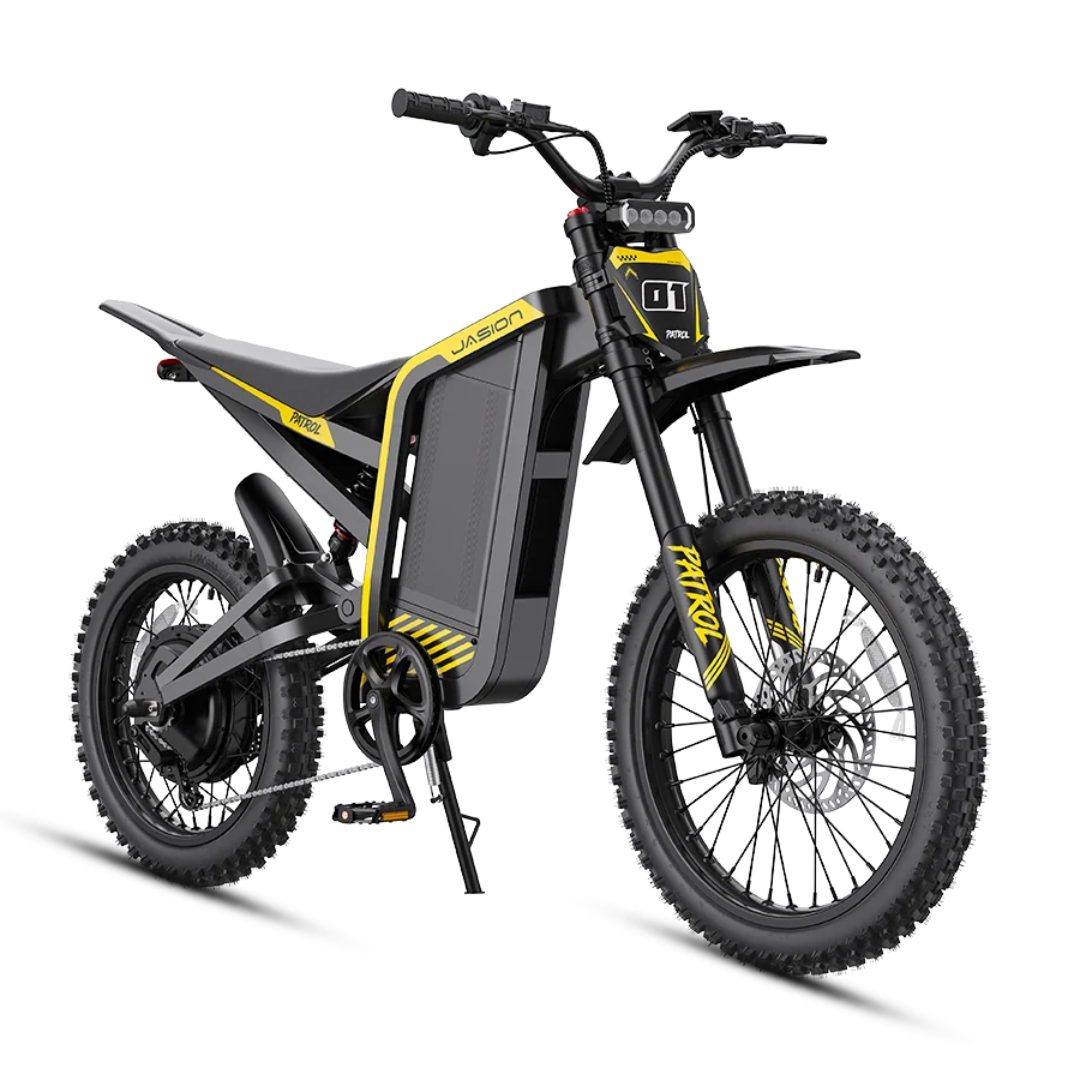

Jasion Patrol 52 4000W Peak Electric Dirt Bike

The Jasion Patrol 52 is a throttle-only electric dirt bike built for genuine off-road riding across dirt, gravel, rocks, and uneven trails rather than everyday street commuting. Its extra-thick, aggressively treaded dirt bike tires, full-suspension chassis, and motorcycle-inspired styling are aimed at riders who want the feel and power of a dirt bike with the practicality of an electric drivetrain. The Patrol 52 is intended for riders 18 and older and arrives 85% assembled.

A brushless rear hub motor delivers up to 4,000W of peak power and 145 N·m of torque, enough to sprint from 0 to 20 mph in roughly 3.5 seconds and reach a stated top speed of 40 mph. The removable 52V 30Ah (1,560Wh) lithium battery provides a maximum range of up to 50 miles per charge, and its fast-charging capability takes it from 15% to 80% in about 3.5 hours, cutting down on downtime between rides. Since the Patrol 52 is throttle-only with no pedal-assist system, all power delivery runs through a full-twist throttle with five selectable levels.

Suspension comes from a 5.9-inch hydraulic front fork with lockout paired with a rear hydraulic shock, tuned to absorb hard impacts across rocks and uneven ground, while hydraulic disc brakes with 7.1-inch rotors provide responsive stopping power. A full-color LCD display shows speed, battery level, and remaining range, and riders can start the bike with the included NFC card or a password entered on the display instead of a traditional key. Integrated lighting includes a headlight, turn signals, a brake light, and a high-visibility LED taillight, and the bike's ergonomically shaped 21-inch seat is designed to keep riders comfortable over longer off-road sessions.

Key Features

• High-Output Motor: Produces up to 4,000W peak power and 145 N·m of torque.
• Removable Battery: The 52V 30Ah, 1,560Wh lithium battery can be removed for convenient charging.
• Full Suspension: Combines a 5.9-inch hydraulic front fork with lockout and a rear hydraulic shock.
• Hydraulic Braking: Hydraulic disc brakes with 7.1-inch rotors provide responsive stopping control.

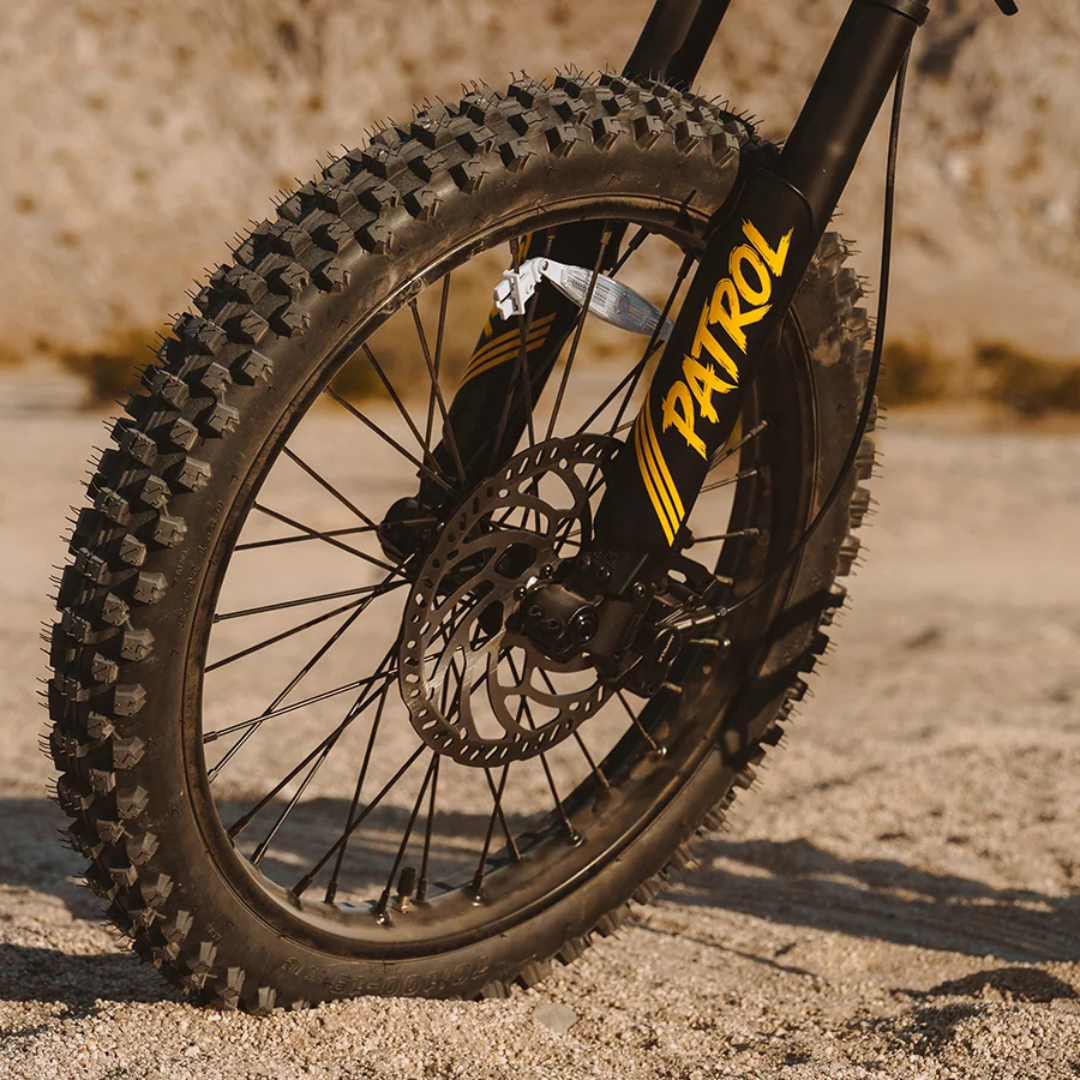

• Dirt Bike Tires: Extra-thick front and rear tires feature aggressive tread for grip on dirt, gravel, rocks, and uneven ground.
• Throttle-Only Operation: Uses a full-twist throttle and does not include a pedal-assist system.
• NFC Access: Supports keyless activation using the included NFC card or password access through the display.

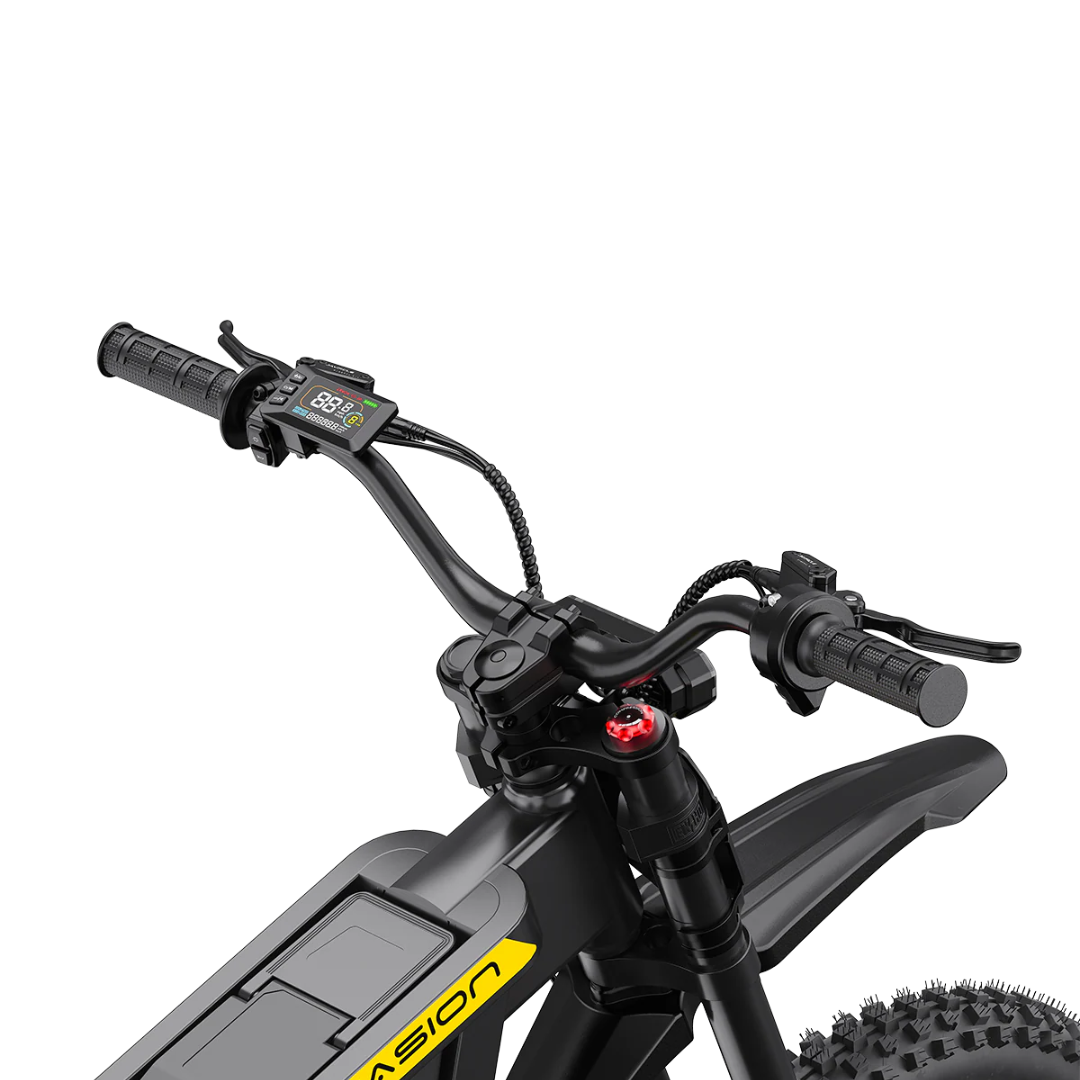

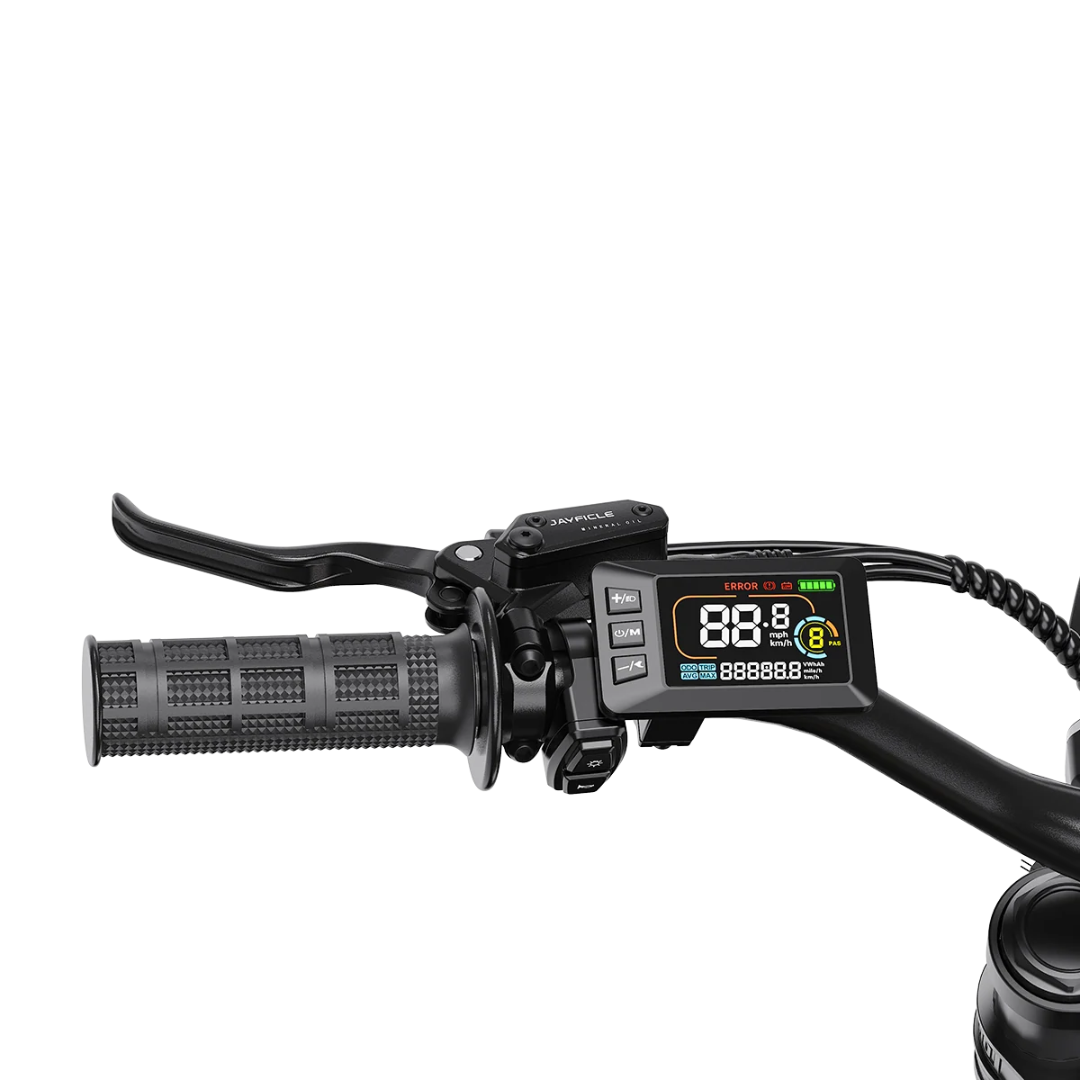

• Color Display: The full-color LCD shows information such as speed, battery level, and remaining range.

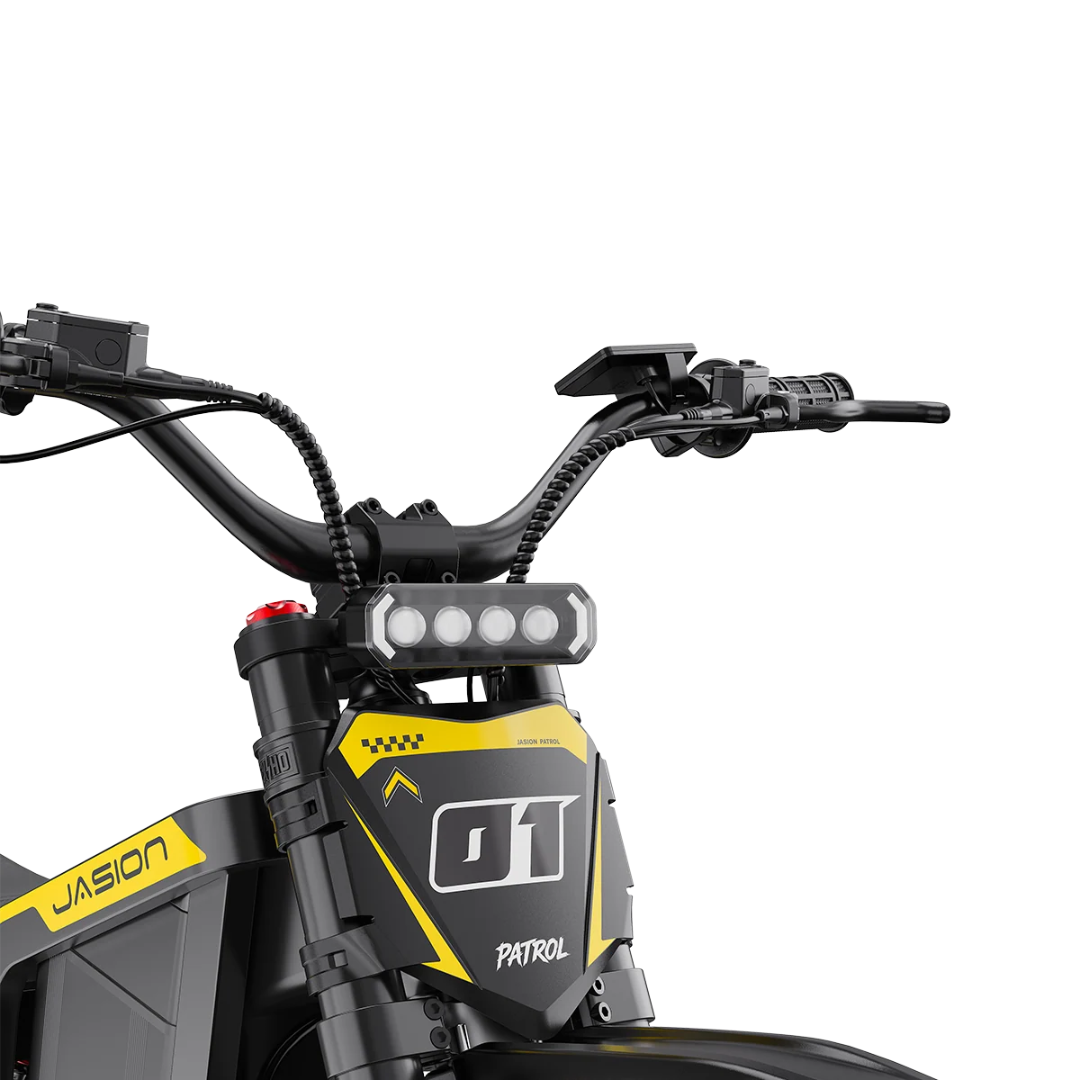

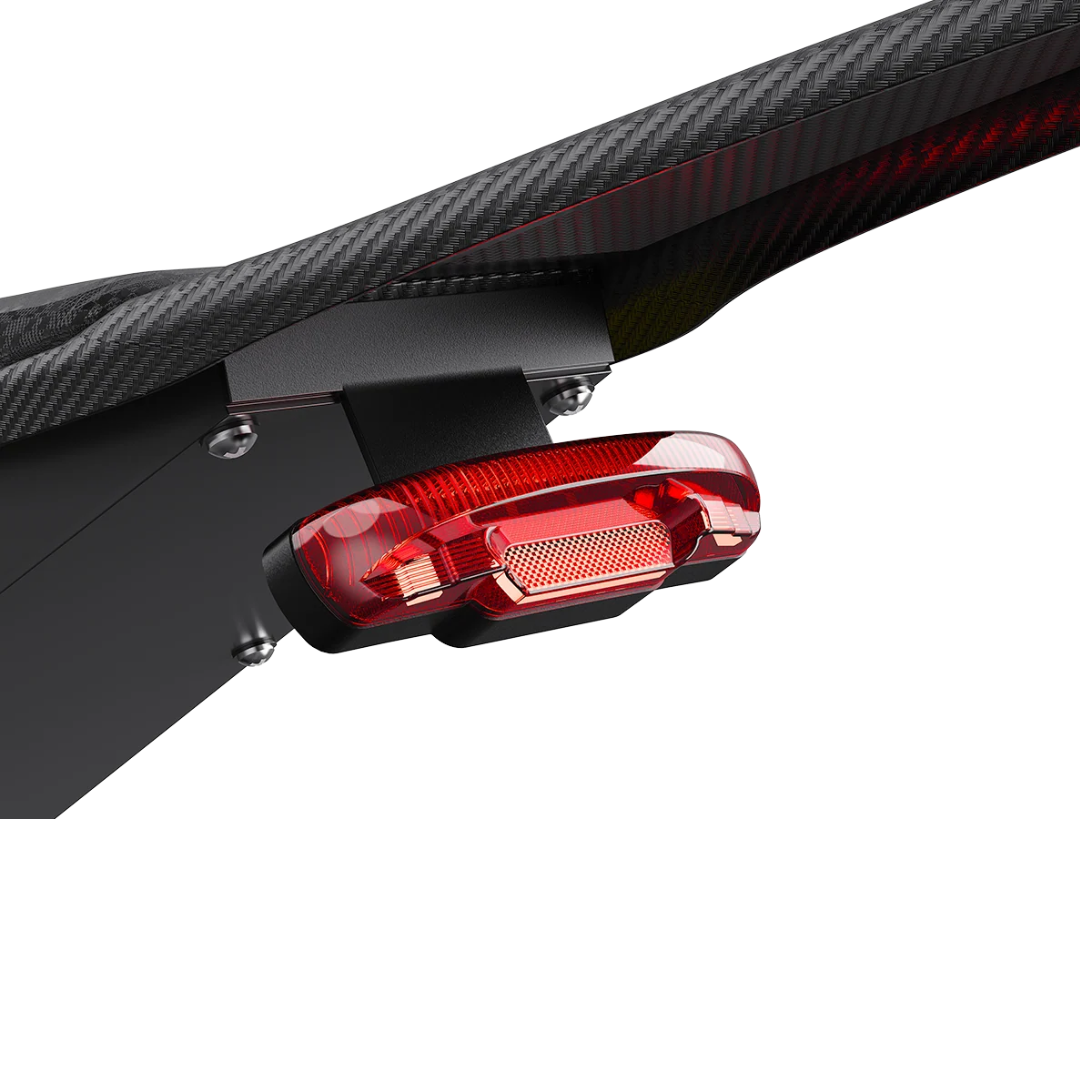

• Integrated Lighting: Includes a headlight, turn signals, brake light, and high-visibility LED taillight.
• Fast Partial Charging: Charges from 15% to 80% in approximately 3.5 hours.

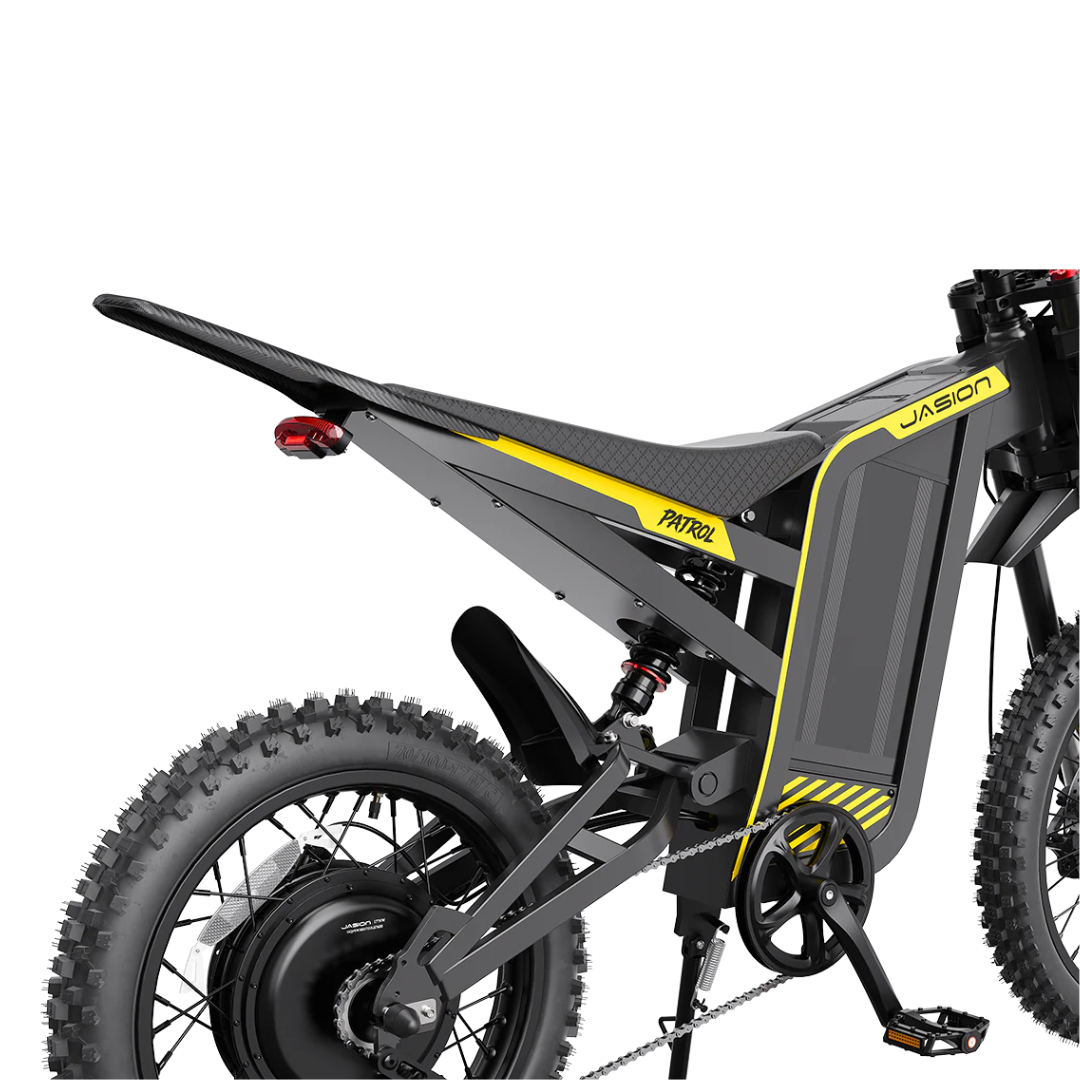

• Long Seat: Features an ergonomically designed 21-inch seat for supportive riding.
• Assembly: Arrives 85% assembled.

Specifications

• Motor: Brushless rear hub motor with up to 4,000W peak power
• Torque: 145 N·m
• Top Speed: 40 mph
• Acceleration: 0–20 mph in 3.5 seconds
• Battery: Removable 52V 30Ah lithium battery
• Battery Capacity: 1,560Wh
• Maximum Range: Up to 50 miles
• Full Charging Time: 7–8 hours
• Partial Charging Time: Approximately 3.5 hours from 15% to 80%
• Charger: Standard US 2.0A charger
• Controller: 52V 70A
• Throttle: Full-twist throttle
• Throttle Levels: 0–5
• Operating Mode: Throttle only; no pedal assist
• Brakes: Hydraulic disc brakes with 7.1-inch rotors
• Suspension: Full suspension
• Front Suspension: 5.9-inch hydraulic fork with lockout
• Rear Suspension: Hydraulic rear shock
• Front Tire: 70/100-19 extra-thick dirt bike tire
• Rear Tire: 70/100-17 extra-thick dirt bike tire
• Display: Full-color LCD with NFC unlocking
• Lights: Headlight, turn signals, brake light, and integrated LED taillight
• Maximum Payload: 330 lb
• Product Weight: 115 lb
• Folding Frame: No
• Minimum Rider Age: 18 years

Size Guide

• Recommended Rider Height: 5 ft 7 in to 6 ft 7 in
• A — Total Length: 72.4 in
• B — Handlebar Height: 43 in
• C — Wheelbase: 47.6 in
• D — Seat Height: 32 in
• E — Seat Length: 21 in
• F — Wheel Diameter: 70/100-19 in
• G — Bike Height: 43.3 in
• H — Ground Clearance: 5 in

Included

• Patrol electric dirt bike × 1
• Fenders × 2
• Rear rack × 1
• Charger × 1
• Toolkit × 1
• Pedals × 2
• Kickstand × 1
• Manual QR code card × 1
• NFC card × 1
• Patrol sticker × 1
• Jasion bike cap × 1
• Front light × 1
• Front board × 1
• Front wheel × 1
• Front disc brake caliper mounting bolts × 1 set
