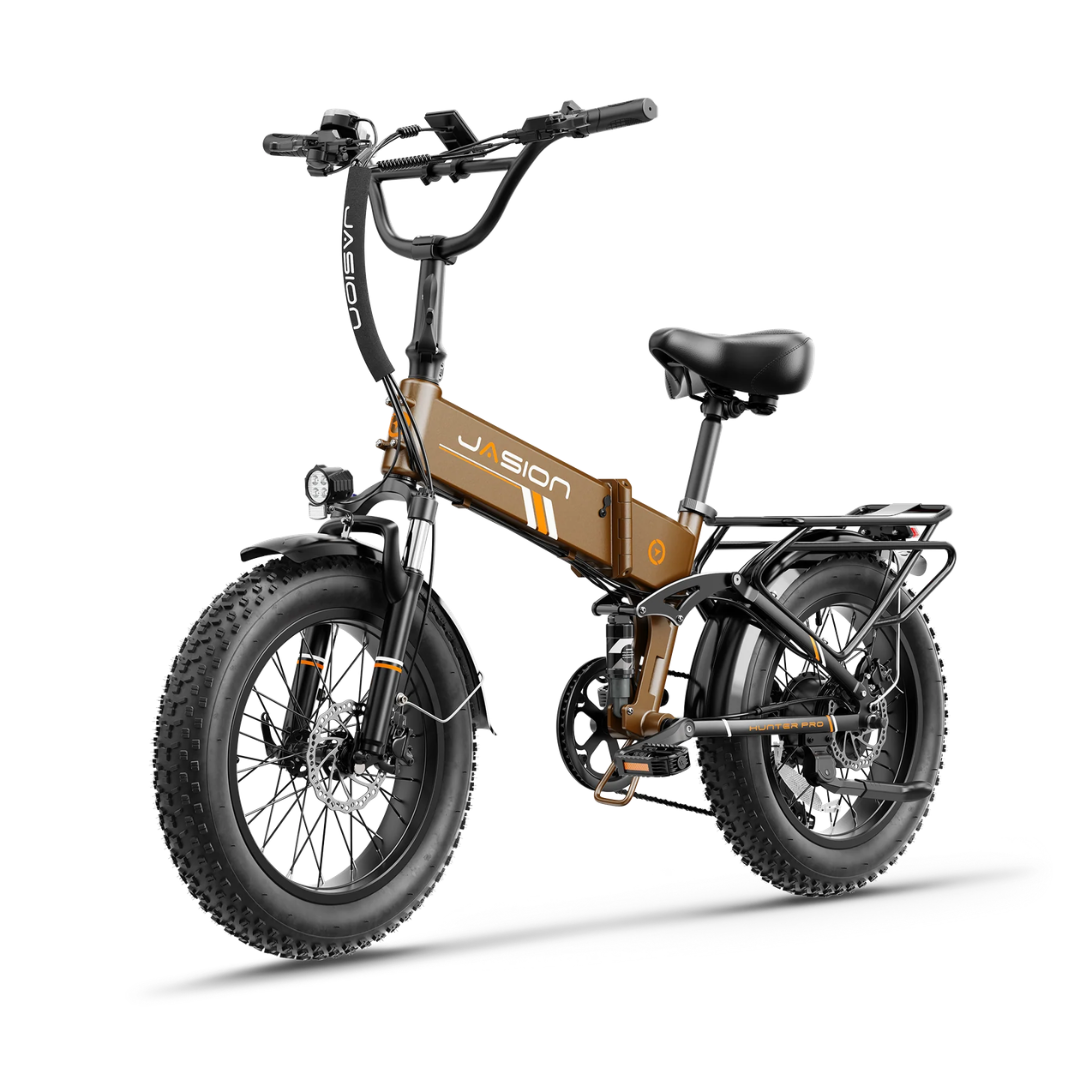

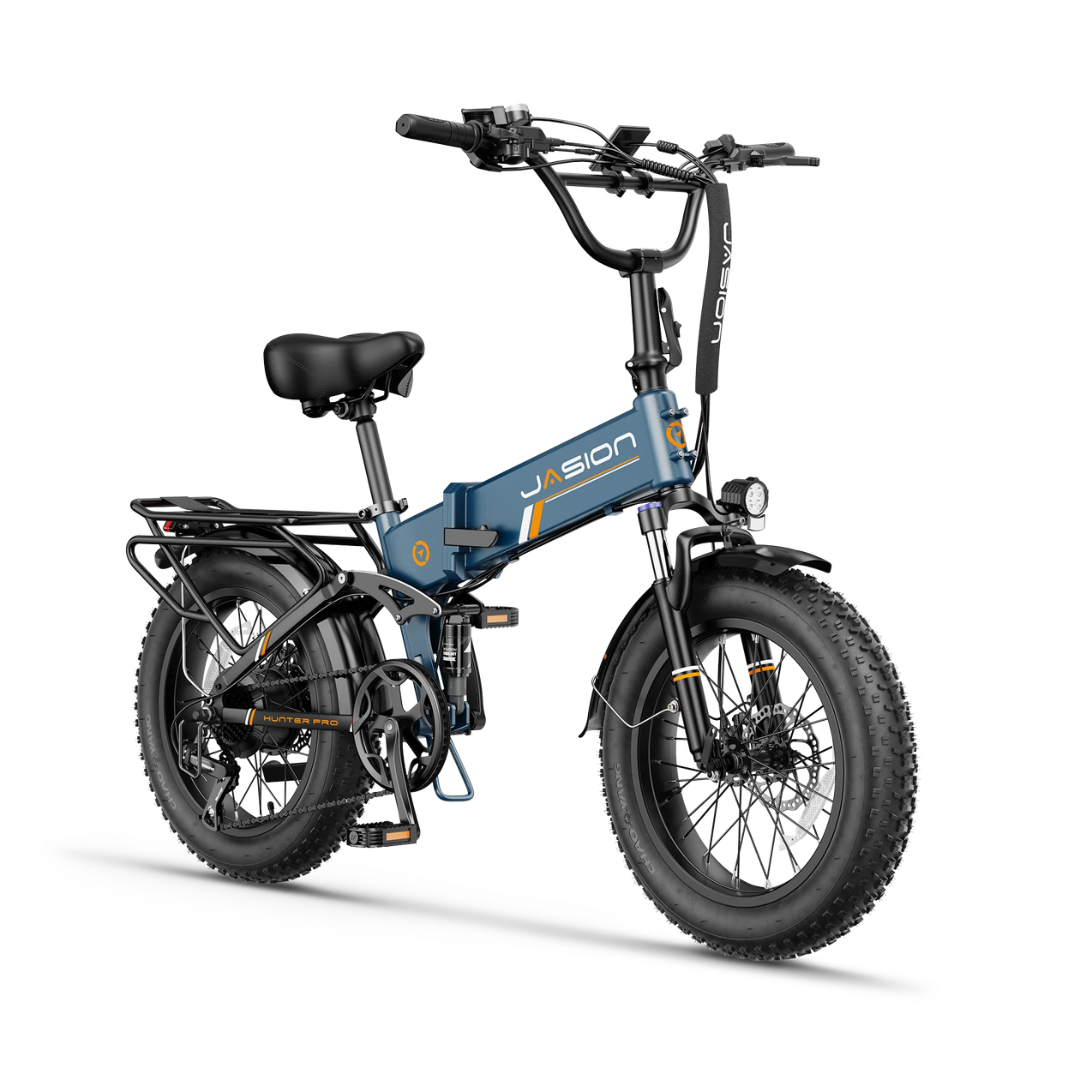

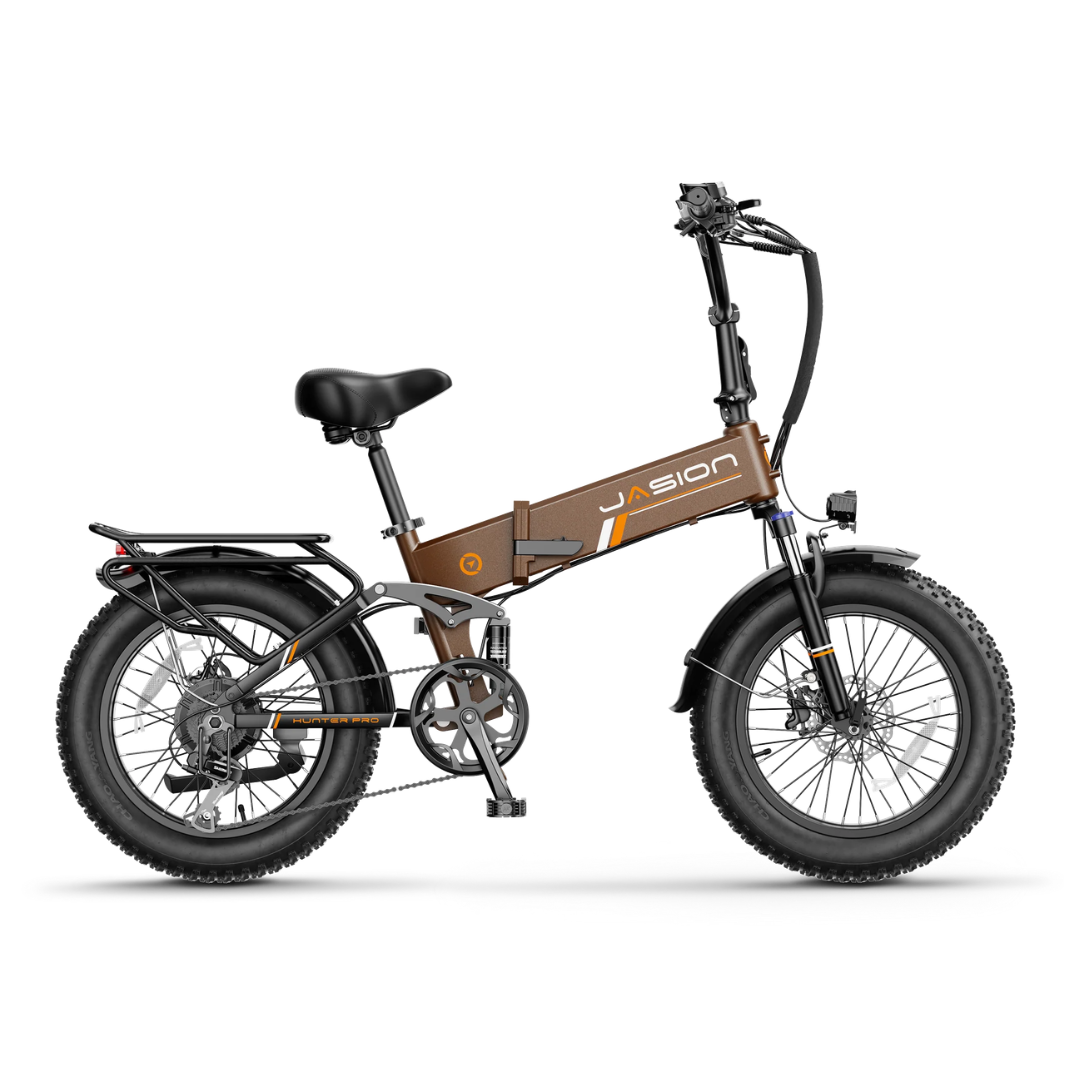

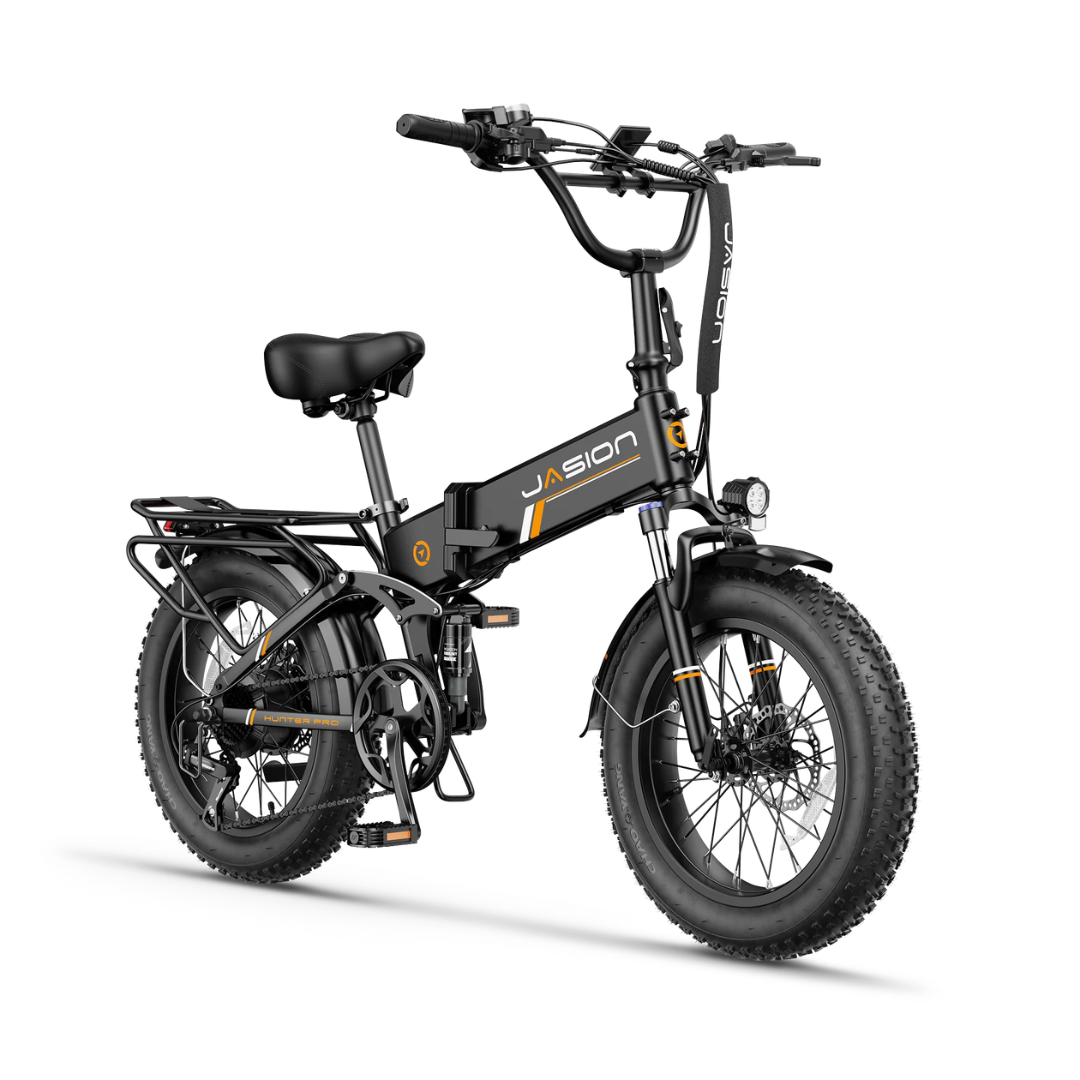

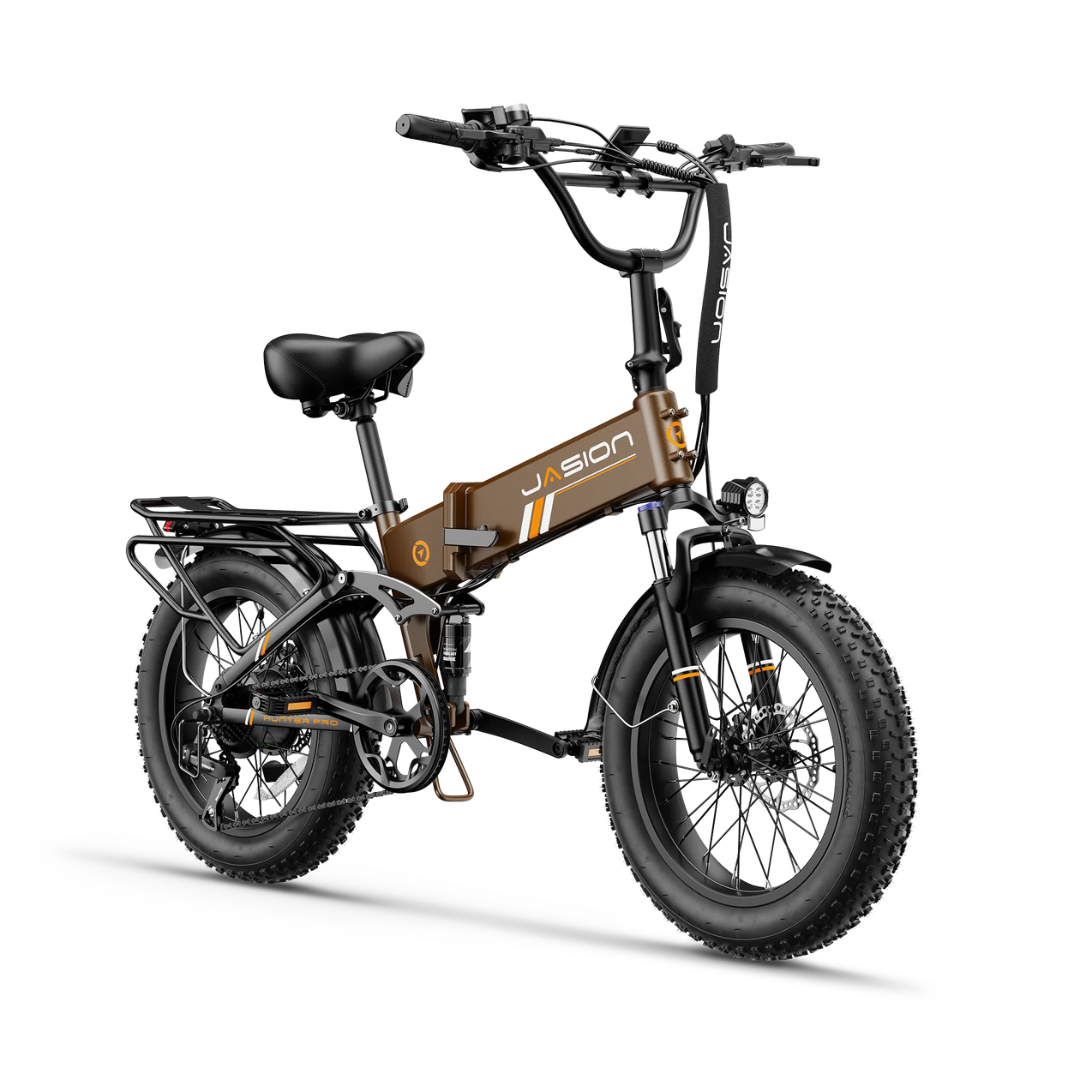

Jasion Hunter Pro Folding Full-Suspension Fat-Tire Electric Bike

The Jasion Hunter Pro is a folding, full-suspension fat-tire electric bike built for riders who want one bike that folds down for easy transport and storage but still holds up to genuine off-road use. Its 20 x 4-inch puncture-resistant tires and full-suspension setup are designed to handle city streets, dirt roads, and rugged trails without sacrificing the compact folding frame that makes it easy to stash in a car trunk, closet, or RV.

Power comes from a brushless hub motor rated at 1,000W with a peak output of 1,800W and 95 N·m of torque, enough to accelerate from 0 to 20 mph in about 5 seconds and reach a top speed over 30 mph with pedal assist. The 48V 15Ah (720Wh) battery is built for distance, delivering a stated maximum range of up to 80 miles per charge, while a Shimano 7-speed drivetrain, five pedal-assist levels, and a motorcycle-style twist throttle give riders flexible control over how much effort they put in.

The Hunter Pro's full-suspension system pairs a 7.1-inch adjustable hydraulic front fork with a Horst-Link rear suspension design, which adds a rear pivot near the chainstay to help the suspension better manage bumps and rebound across rough terrain. Dual hydraulic disc brakes provide responsive stopping power in varied weather, and an LCD display keeps riders informed of speed and battery status. Integrated turn and brake signals, an oversized ergonomic saddle for reduced fatigue on longer rides, and a rear cargo rack for hauling gear round out the package, and the Hunter Pro can also connect to a smartphone app for monitoring battery status, tracking rides, and adjusting settings.

Key Features

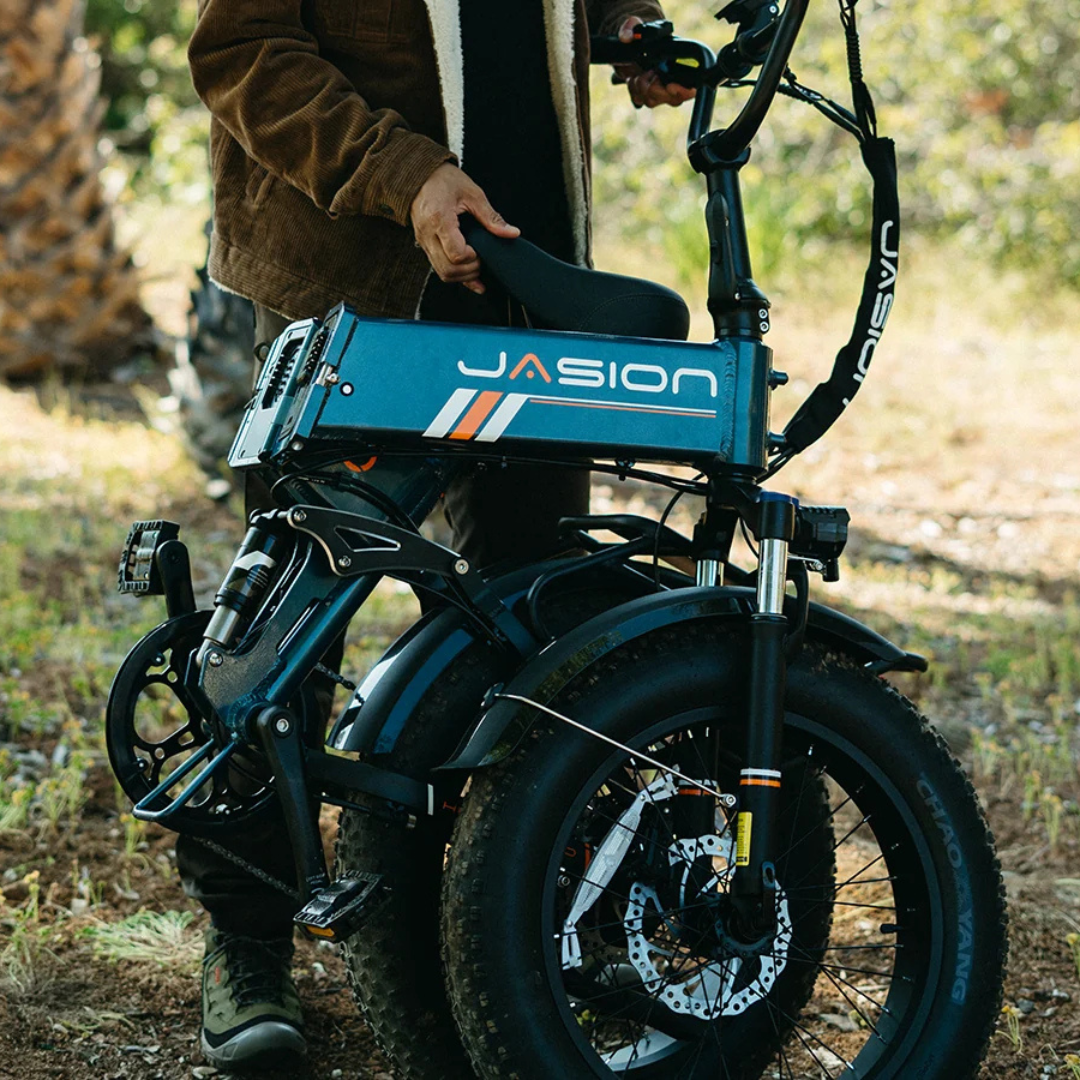

• Folding Design: The frame folds into a more compact size for transportation and storage.
• Motor Performance: Produces 1,000W of rated power and up to 1,800W peak power with 95 N·m of torque.
• Long-Range Battery: The 48V 15Ah, 720Wh battery provides a stated maximum range of up to 80 miles.
• Full Suspension: Features a Horst-Link rear suspension and an adjustable hydraulic front suspension system.
• Hydraulic Braking: Dual hydraulic disc brakes provide responsive stopping control in varied weather and terrain conditions.
• All-Terrain Tires: Equipped with 20 × 4-inch puncture-resistant fat tires for grip and stability across city streets and rugged trails.
• Shimano Drivetrain: A Shimano 7-speed drivetrain supports smooth shifting across different riding conditions.
• Twist Throttle: The motorcycle-style twist throttle provides direct motor assistance.
• Pedal Assistance: Includes five pedal-assist levels plus throttle operation.
• Smartphone Connectivity: Allows riders to monitor the battery, track rides, customize settings, and plan routes using a smartphone.
• Integrated Signals: Turning and braking signals provide clear directional and stopping indications.

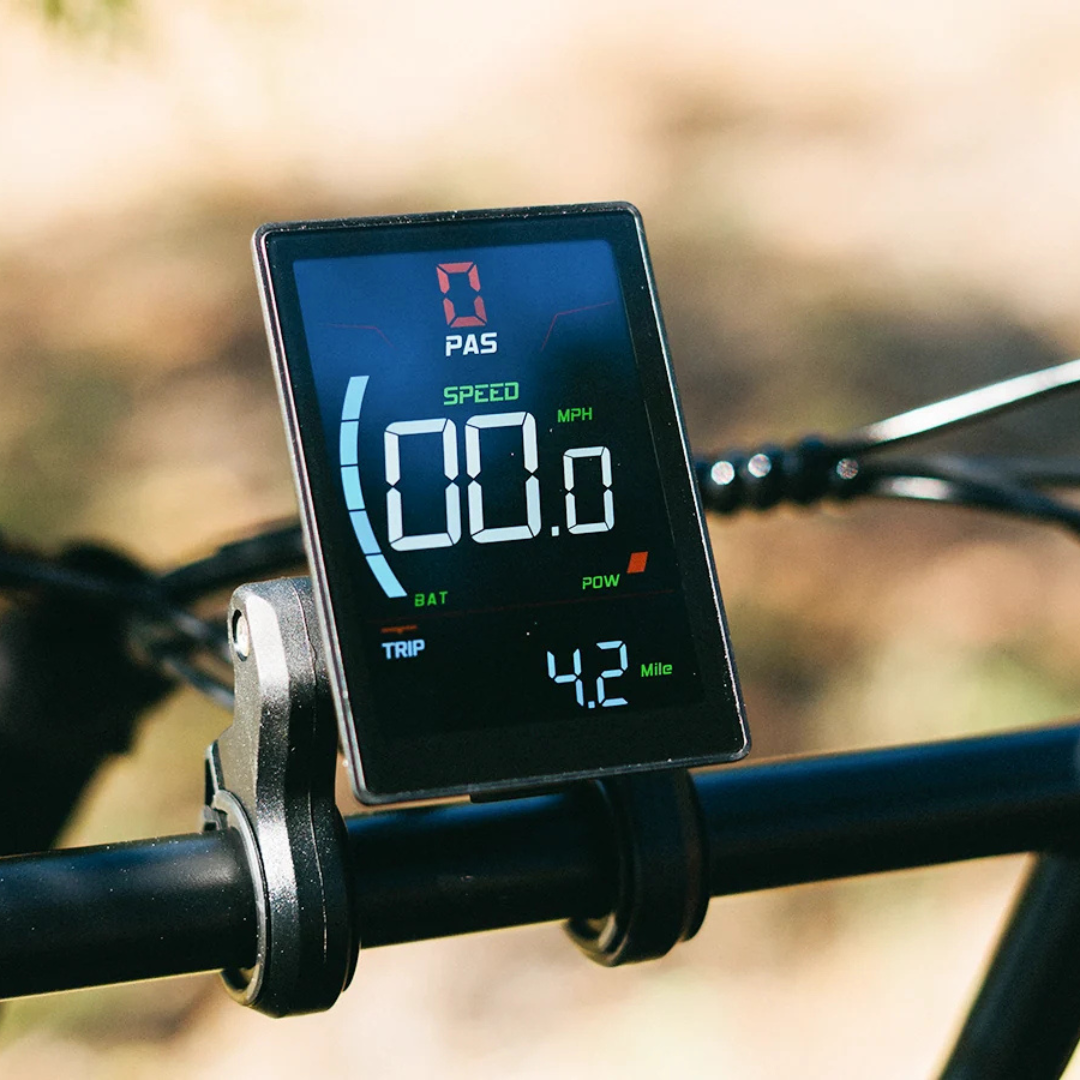

• LCD Display: Displays essential riding information.
• Oversized Saddle: The ergonomic saddle is designed to provide support and reduce fatigue during longer rides.
• Rear Cargo Rack: Provides a platform for carrying suitable groceries, outdoor gear, and other cargo.

Specifications

• Motor: 1,000W rated, 1,800W peak brushless hub motor
• Torque: 95 N·m
• Top Speed: Over 30 mph
• Acceleration: 0–20 mph in 5 seconds
• Battery: 48V 15Ah
• Battery Capacity: 720Wh
• Maximum Range: Up to 80 miles
• Charging Time: 7–8 hours
• Charger: Standard US 2.0A charger
• Controller: 54.6V/32A
• Throttle: Twist throttle
• Sensor: Cadence sensor
• Pedal Assist: Levels 0–5
• Operating Modes: Pedal assist and throttle
• Drivetrain: Shimano 7-speed
• Brakes: Dual hydraulic disc brakes
• Suspension: Full suspension with locking and adjustment
• Front Suspension: 7.1-inch adjustable hydraulic fork
• Rear Suspension: Horst-Link suspension
• Tires: 20 × 4-inch puncture-resistant fat tires
• Display: LCD display
• Lights: Turning lights and brake lights
• Maximum Payload: 400 lb
• Product Weight: 82 lb
• Folding Frame: Yes
• Package Dimensions: 59 in L × 11.4 in W × 29.3 in H
• Overall Dimensions: 66.9 in L × 24.8 in W × 45.3 in H

Size Guide

• Size: One Size
• Recommended Rider Height: 5 ft 1 in to 6 ft 3 in
• A — Handlebar Length: 27.5 in
• B — Seat Tube Length: 4.7 in
• C — Chainstay: 16.9 in
• D — Ground Clearance: 5.9 in
• E — Wheelbase: 44 in
• F — Total Length: 67 in
• G — Wheel Diameter: 23.2 in
• H — Handlebar Height from Floor: 46 in
• I — Minimum Seat Height from Floor: 30 in
• J — Maximum Seat Height from Floor: 37 in
• K — Folded Size: 39.8 in × 25.6 in × 31.5 in

Included

• Hunter Pro electric bicycle × 1
• Fenders × 2
• Rear rack × 1
• Charger × 1
• Toolkit × 1
• Pedals × 2
• Kickstand × 1
• User manual × 1
