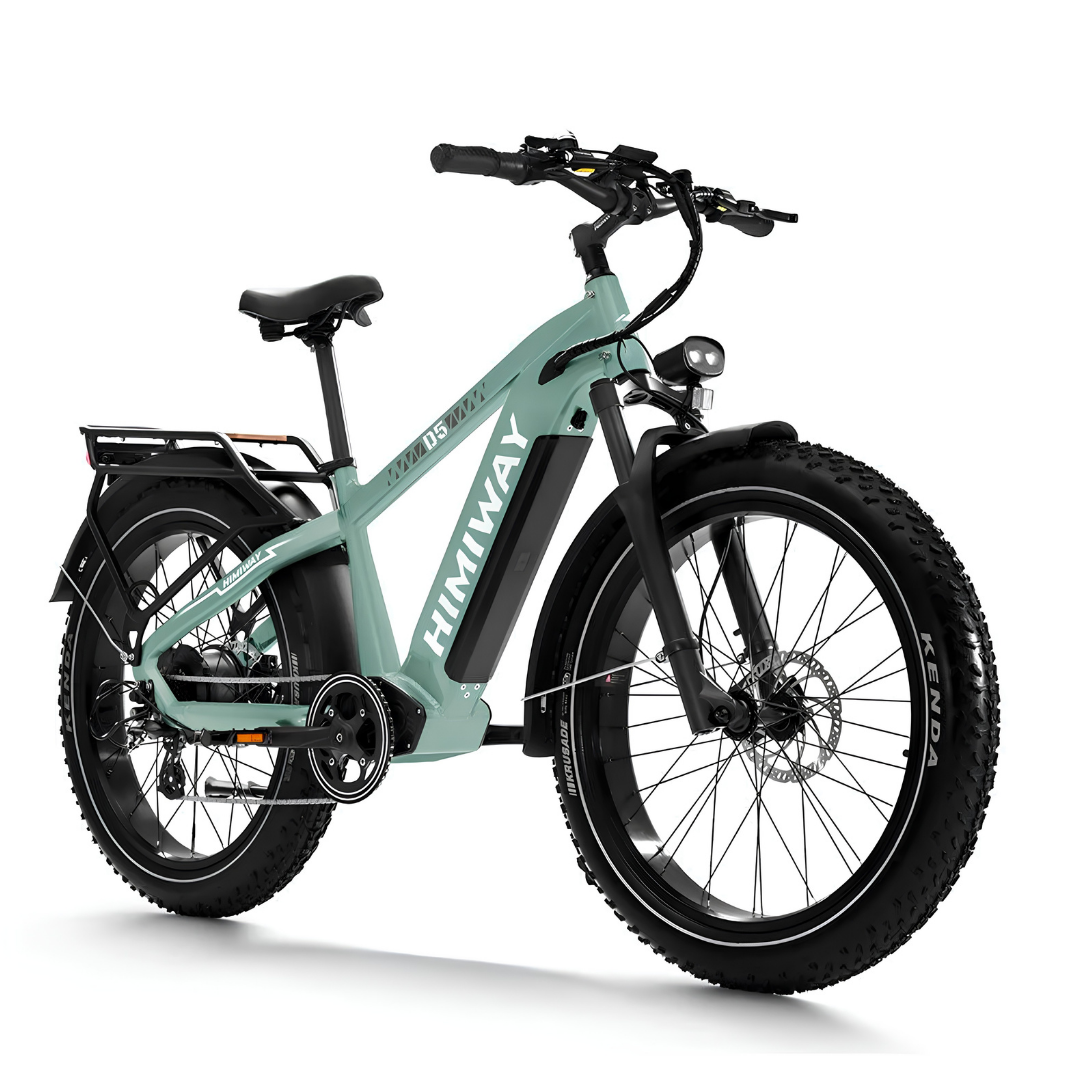

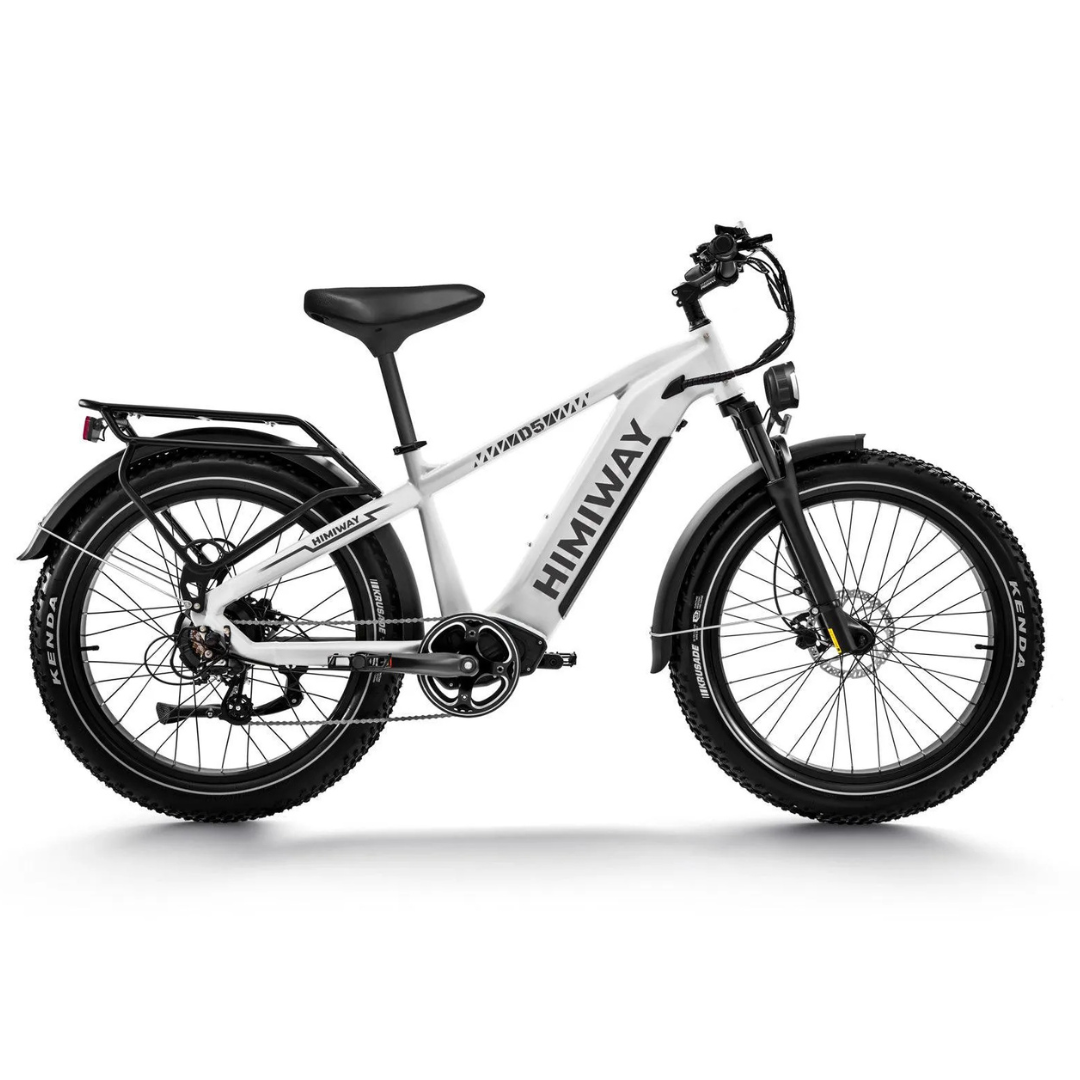

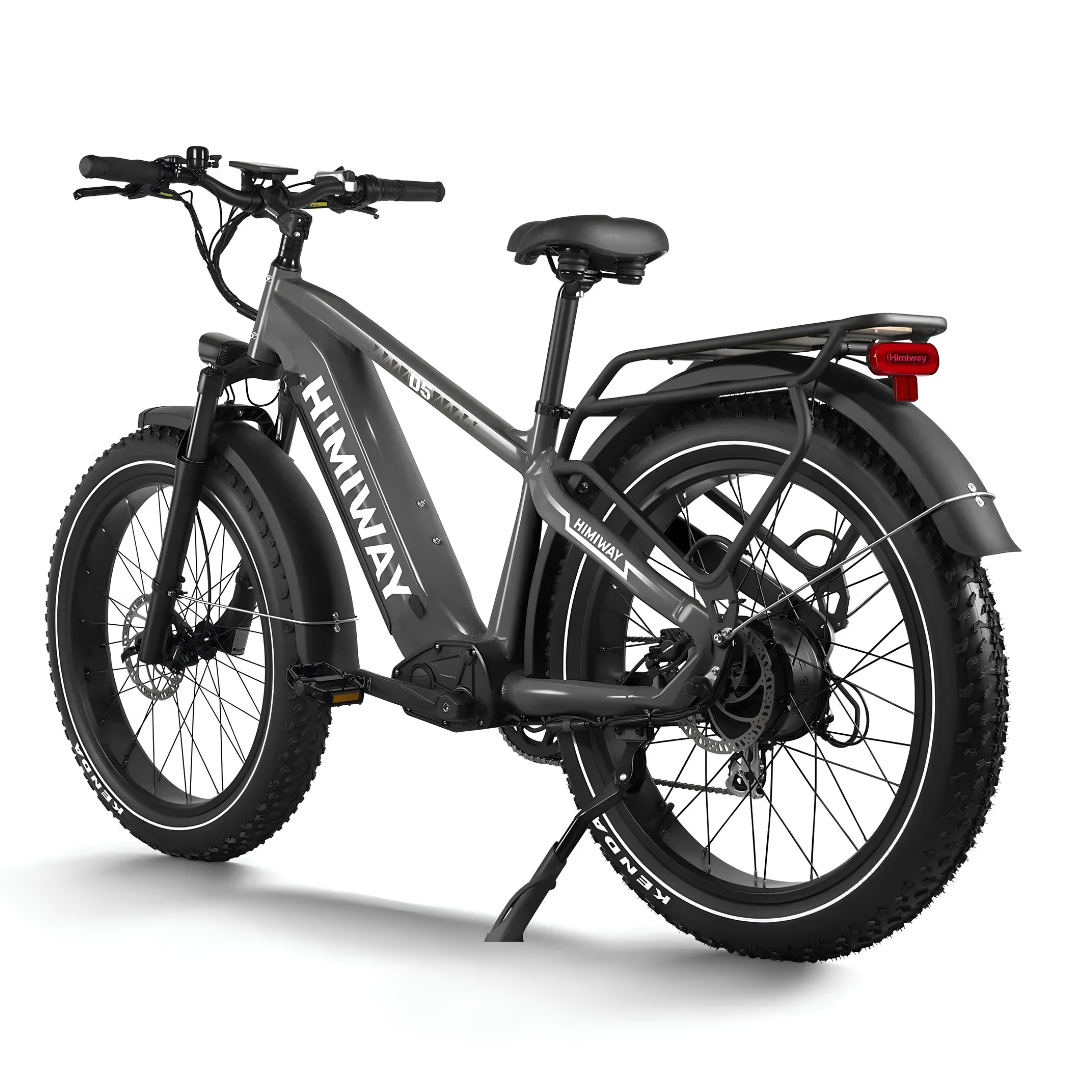

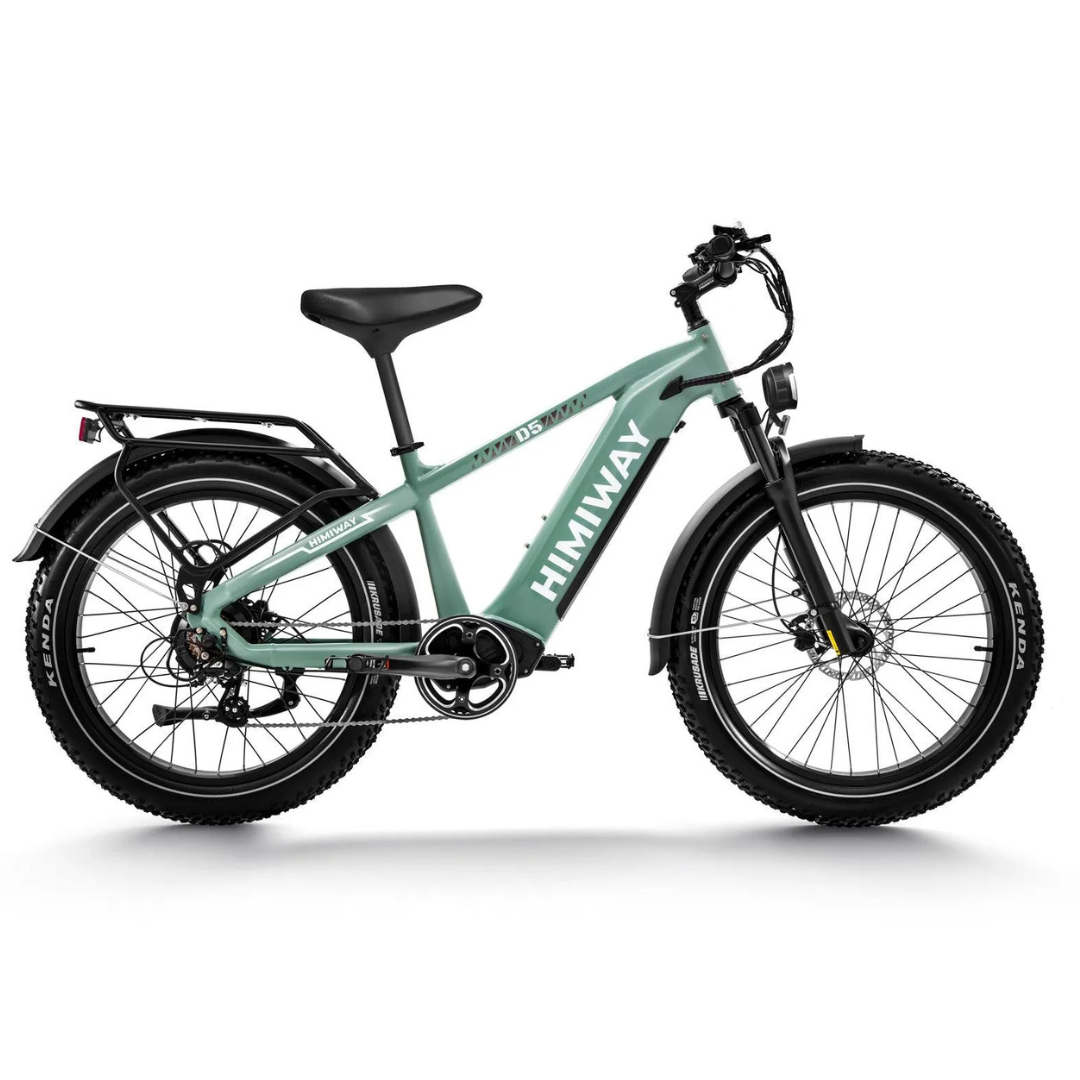

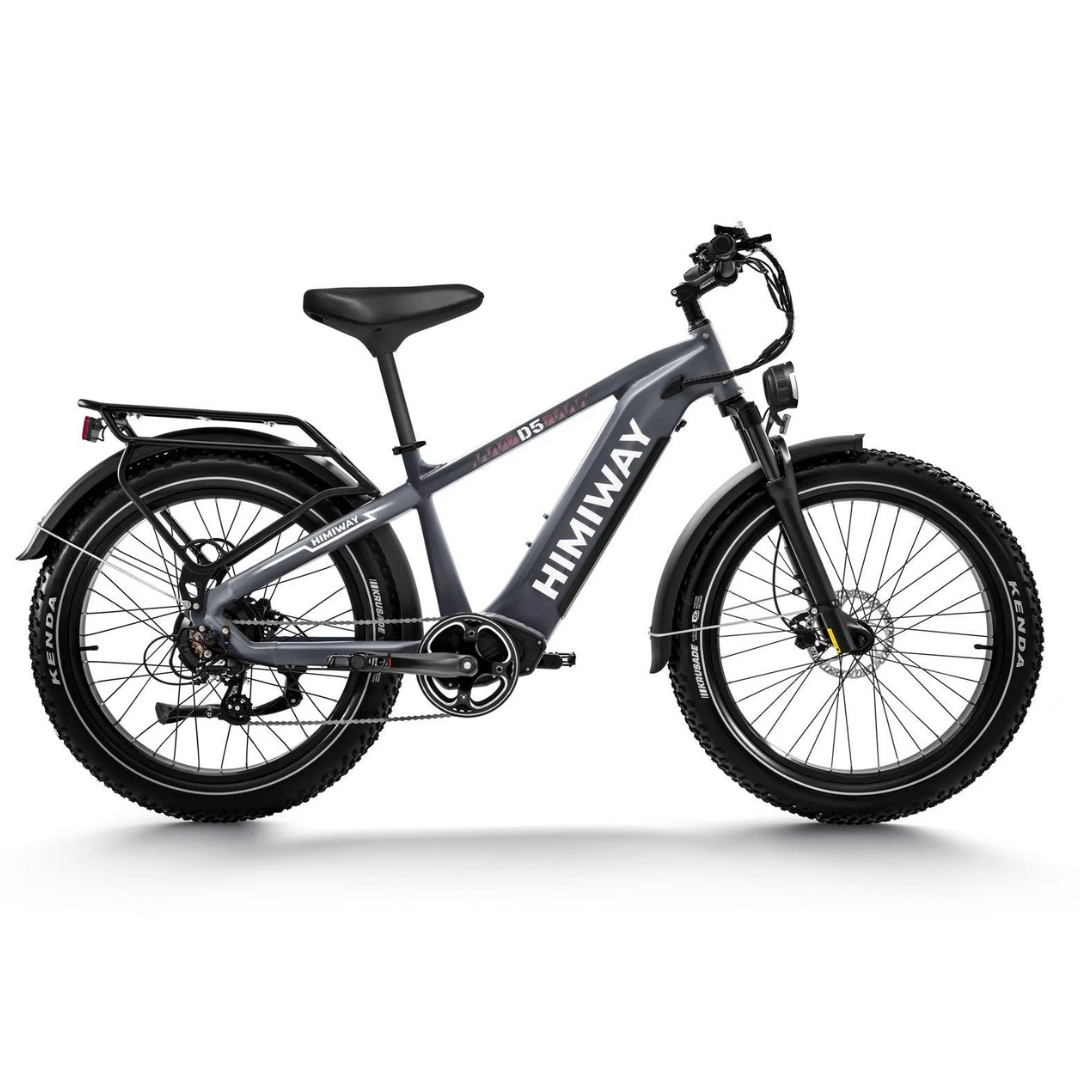

Himiway D5 Zebra All-Terrain Electric Fat Bike

The Himiway D5 is an all-terrain electric fat bike built for riders who need stable performance across city streets, trails, snow, sand, mud, and rugged outdoor paths. Its 6061 aluminum frame, 26 x 4.0" Kenda fat tires, and 400 lb max payload capacity make it a strong option for everyday riding and outdoor use.

Powered by a 750W brushless gear motor and a Samsung/LG 48V 20Ah battery, the D5 delivers a listed 60–80 mile range. It also includes a torque sensor, speed sensor, and brake sensor for responsive electric assistance while riding.

The D5 includes hydraulic brakes, a 48V LED light, LCD display with USB charger, thumb throttle, Shimano Altus 7-speed groupset, rear rack, protection fender kit, and heavy-duty aluminum kickstand for a complete all-terrain riding setup.

Key Features

• All-Terrain Fat Bike Design: Built with 26 x 4.0" Kenda fat tires for riding across rugged roads, trails, snow, sand, and muddy paths.
• 750W Brushless Gear Motor: 750W motor provides electric riding support for all-terrain use.
• Samsung/LG 48V 20Ah Battery: 960Wh Samsung/LG battery supports a listed 60–80 mile range.
• Torque Sensor: Torque sensor supports responsive pedal assistance based on rider input.
• Hydraulic Brakes: Tektro hydraulic brakes provide controlled braking performance.
• LCD Display with USB Charger: LCD display includes a USB charger for added convenience.
• Shimano Altus 7-Speed Groupset: Shimano Altus M310 7-speed drivetrain supports gear control across different terrain.
• 48V LED Light: 48V LED light supports visibility while riding.
• 400 lb Payload Capacity: Upgraded frame supports a listed 400 lb max payload capacity.

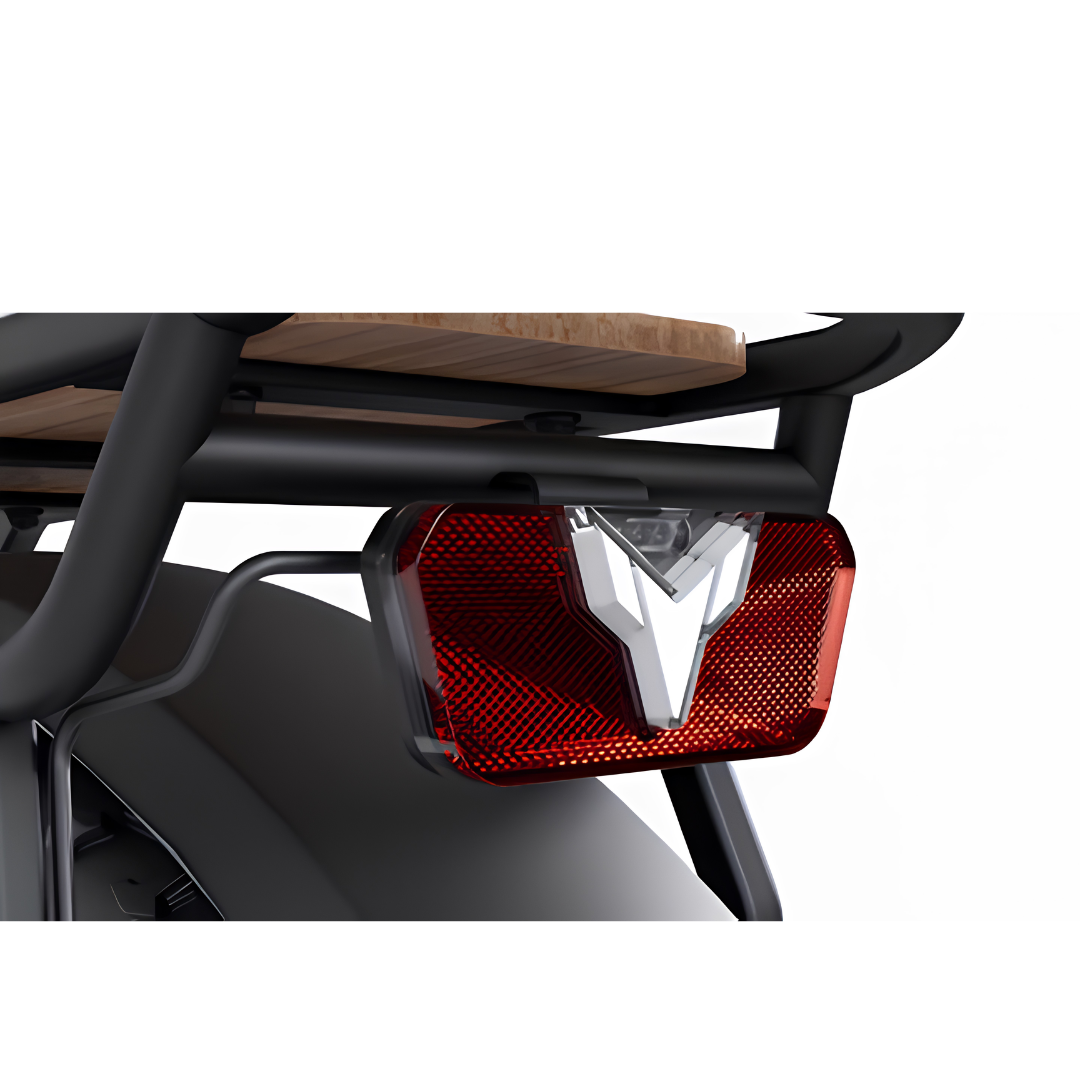

• Included Rear Rack and Fender Kit: Comes with rear rack and protection fender kit.

Specifications

• Frame: 6061 Aluminum frame
• Headset: Neco H156EM, 1.13" x 1.73"–2.20" x 1.18"
• Fork: TRAMA 26" FAT34-26-HLO, 3.7" travel, 0.35" x 5.3" quick release
• Front Wheel: Rim MD-147 26 x 4.0", 36H, 12G A/V; 12G 10.0" / 10.1" stainless spoke; MB015-92 hub
• Rear Wheel: Rim MD-147 26 x 4.0", 36H, 12G A/V; 12G 8.4" stainless spoke; 48V 750W Himiway hub motor
• Tires: Kenda 26 x 4.0"
• Battery: Samsung/LG 48V 20Ah
• Motor: 750W brushless gear motor
• Display: LCD display with USB charger

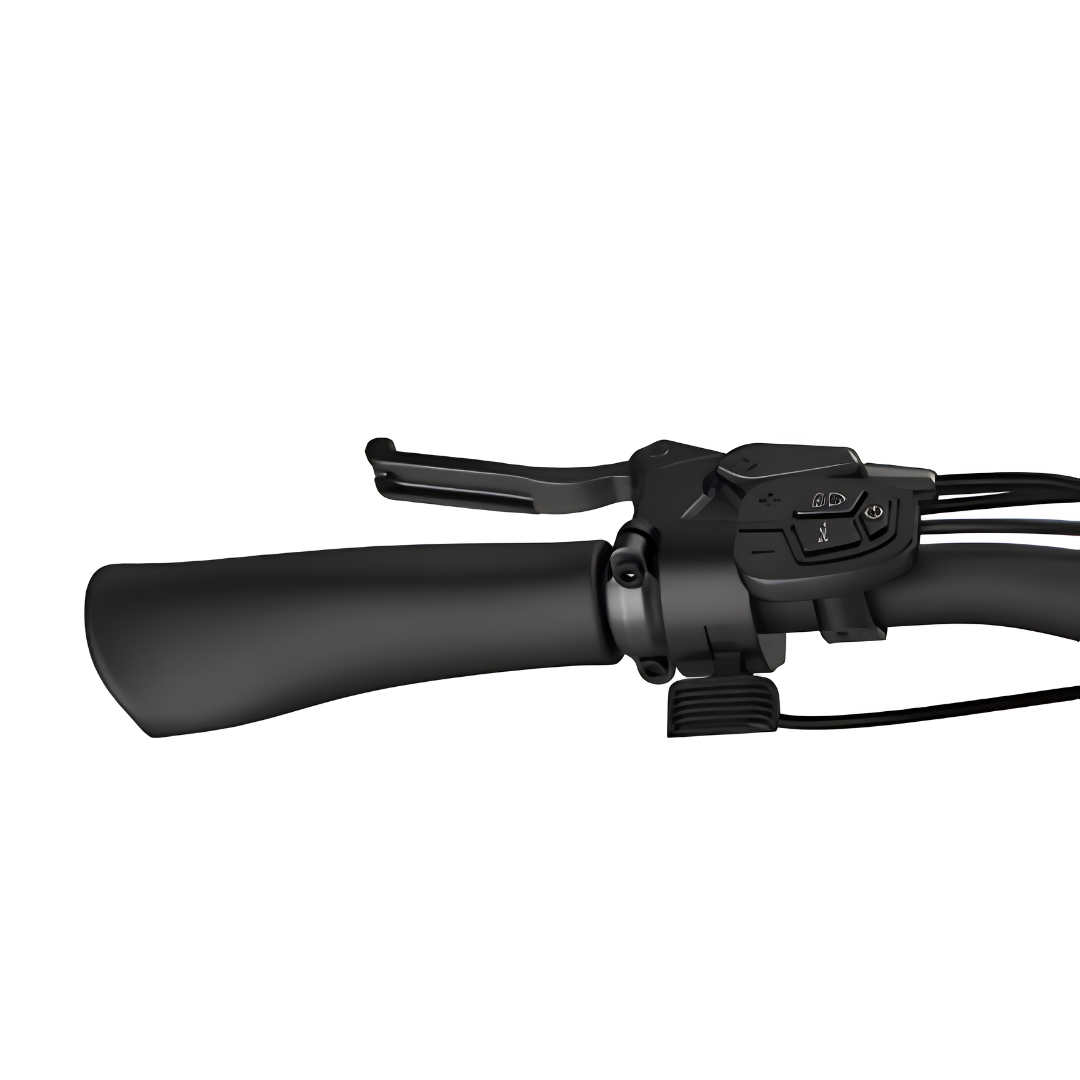

• Throttle: Thumb throttle
• Sensors: Torque sensor, speed sensor, brake sensor
• Crankset: Prowheel EB-01-242A-S1 6.7" crankarm, 44T BCD104 chain ring
• Freewheel: Shimano MF-TZ500-7 14-28T
• Chain: Anti-Rust KMC Z8.3 EPT 120L
• Groupset: Shimano Altus M310 7-speed

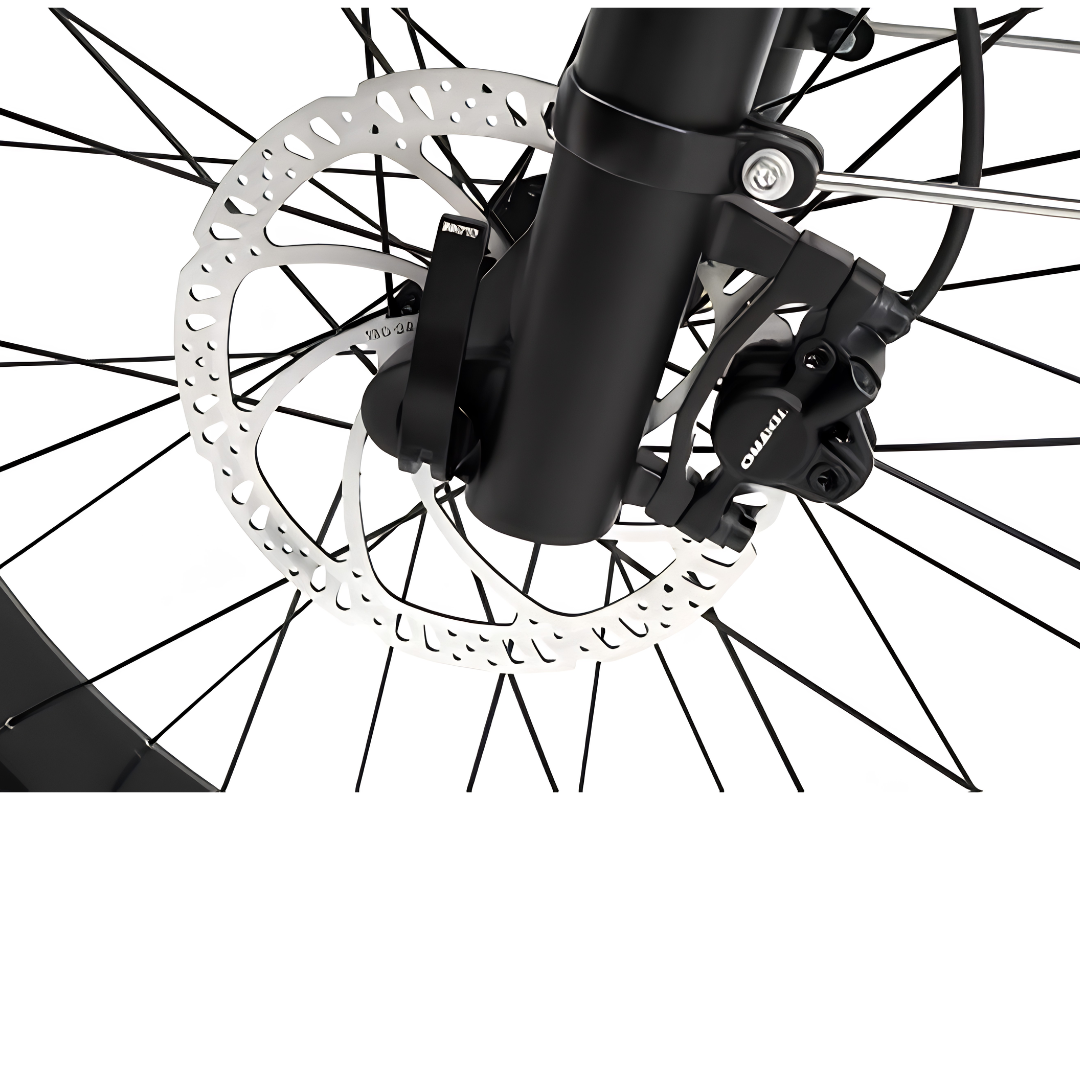

• Front Brake: Tektro HD-E3520 hydraulic brake
• Rear Brake: Tektro HD-E3520 hydraulic brake
• Rotors: Tektro TR180-52, 7.1" front and rear
• Stem: Zoom TDS-C269-8FOV, 1.25" x 3.5"
• Handlebar: Promax HB-3188, 0.87" x 1.25" x 27.6"
• Seatpost: Himiway Seatpost
• Saddle: Himiway Saddle
• Pedal: Aluminum pedal

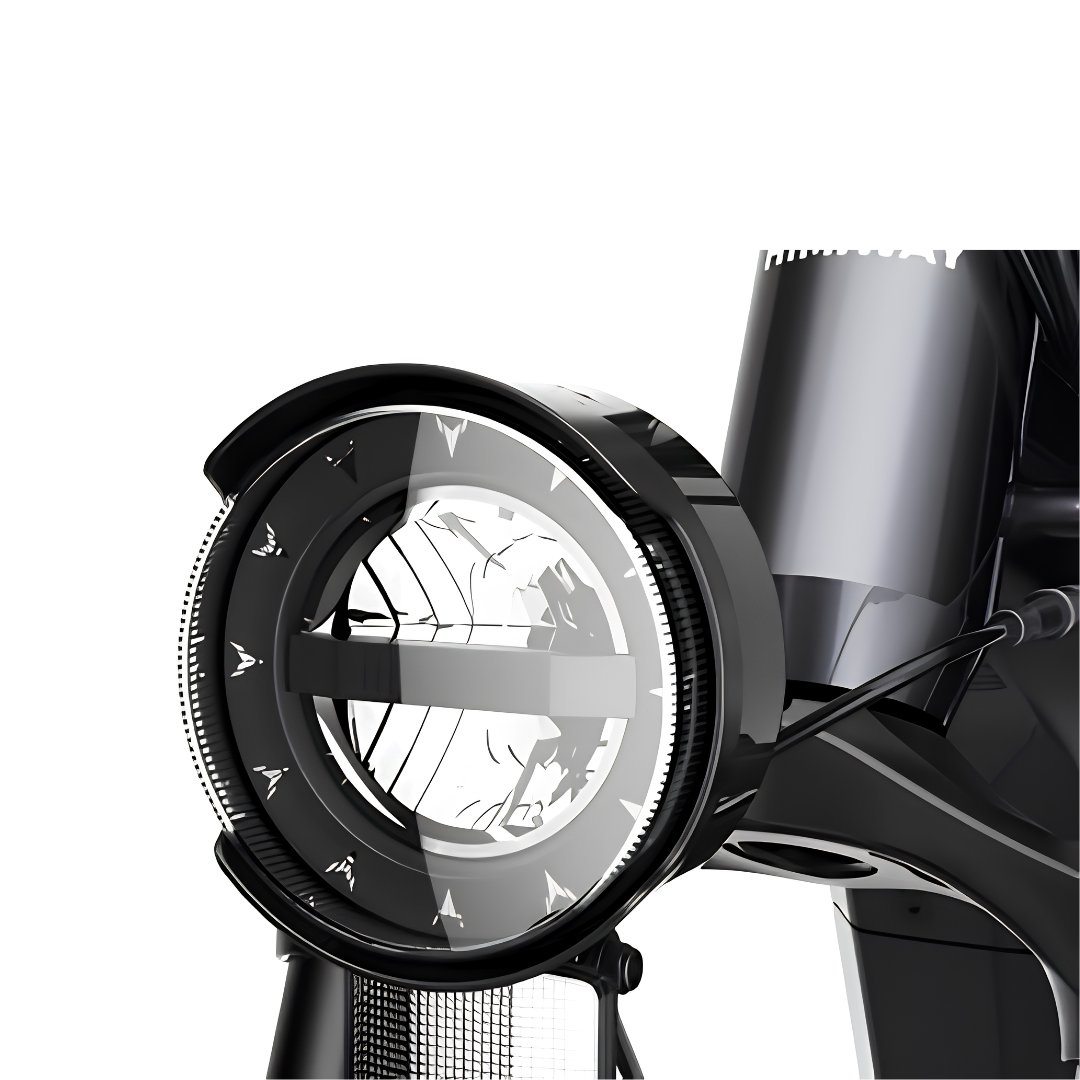

• Lights: 48V LED light
• Kickstand: Heavy-duty aluminum kickstand
• Range: 60–80 miles
• Controller: 48V / 22A
• Charger: U.S. standard 3.0A fast charger
• Rider Height: 5'3"–6'5"
• Weight: 79 lb with battery
• Max Payload Capacity: 400 lb

Size Guide

• Recommended Height: 5'3"–6'5"
• A Total Length: 78.7"
• B Handlebar Height: 47"
• C Handlebar Length: 28"
• D Wheelbase: 49.2"
• E Wheel Diameter: 28.7"
• F Minimum Seat Height: 20.9"
• G Maximum Seat Height: 31.4"
• H Chain Stay Length: 19"
• I Frame Stack: 24.6"
• J Frame Reach: 17.8"
• K Effective Top Tube Length: 24.4"
• L Head Tube Length: 5.5"
• M Head Angle: 65°
• N Standover Height: 31.1" Step-over

Included

• E-bike
• Protection Fender Kit
• Rear Rack
• 16 in 1 Repair Tool
• Charger
