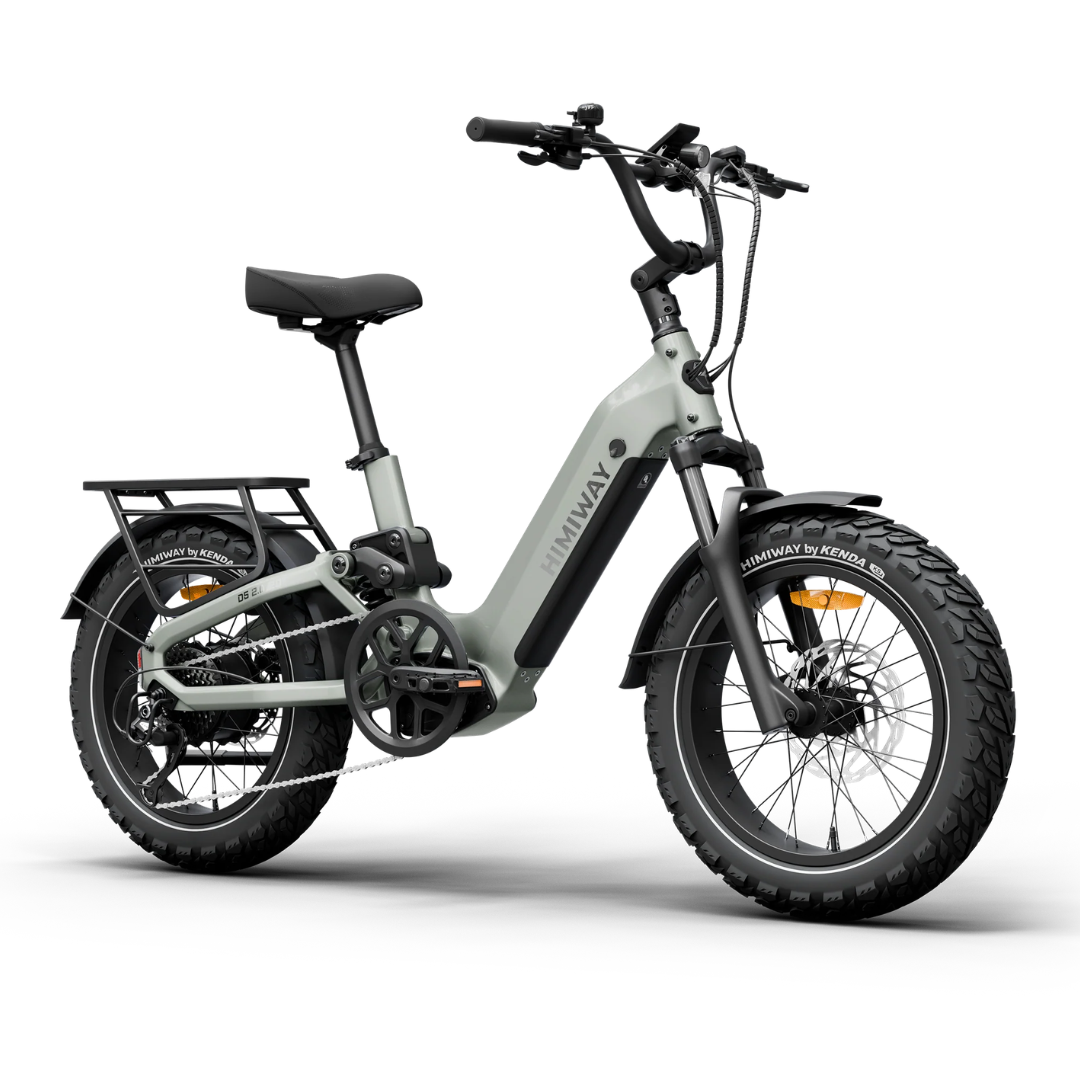

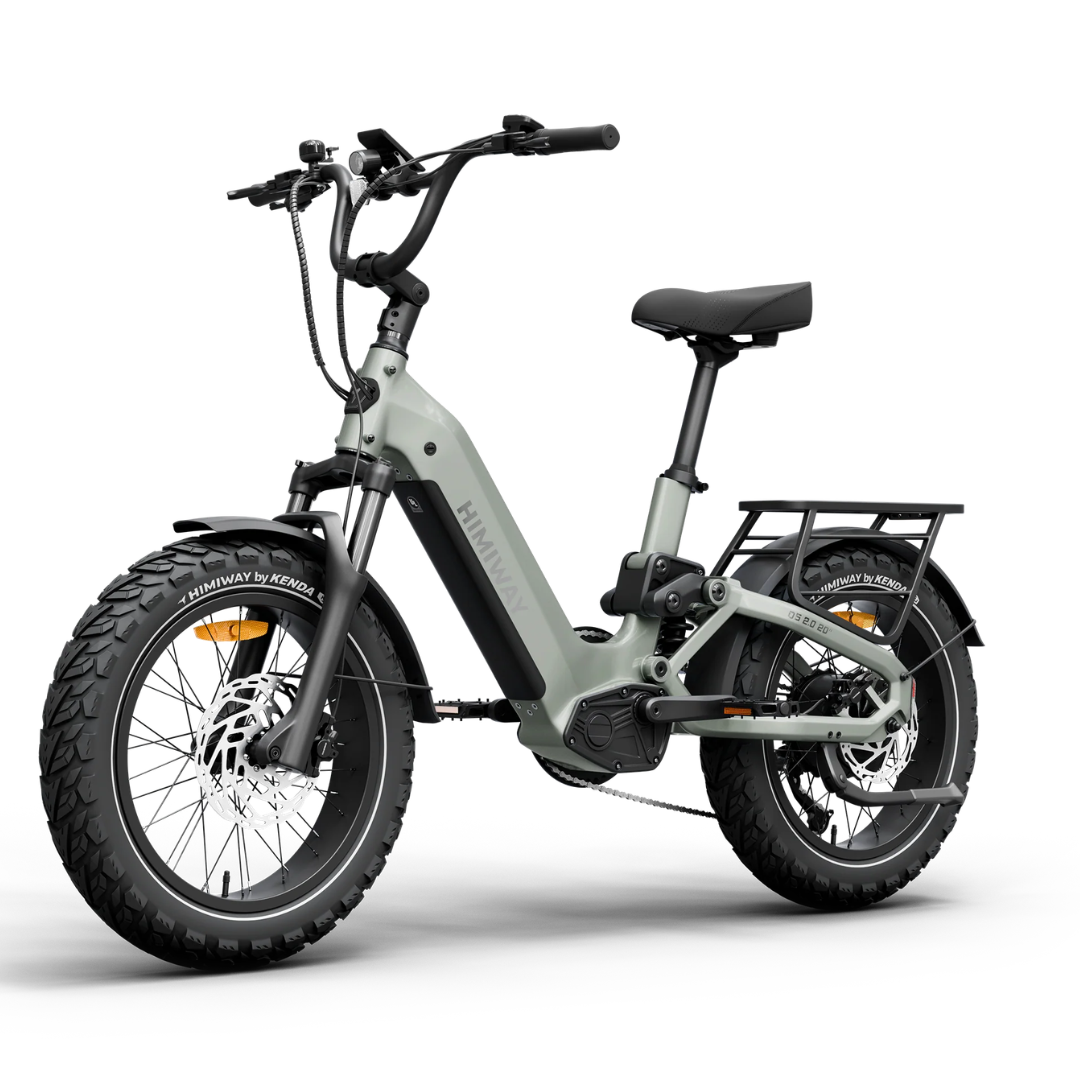

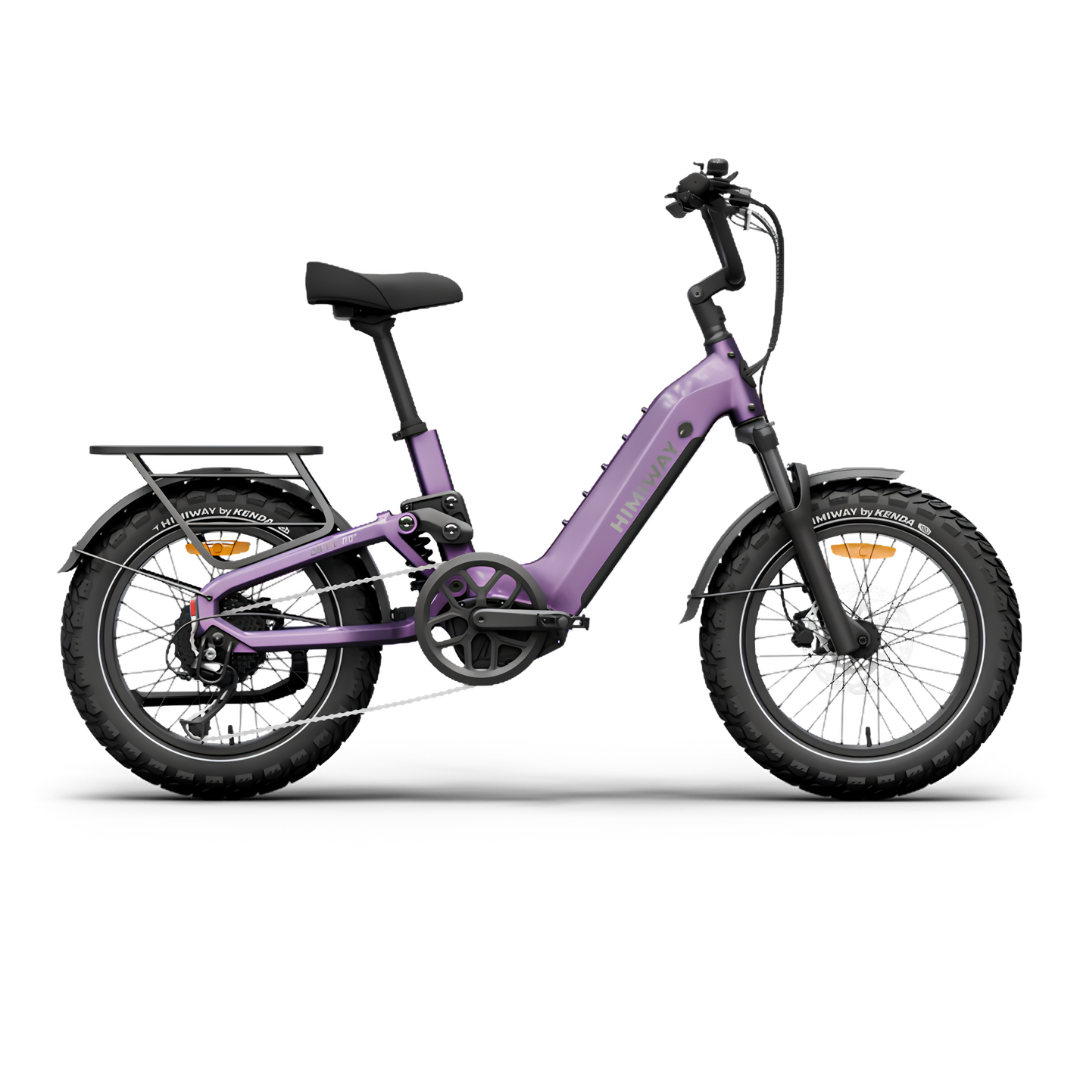

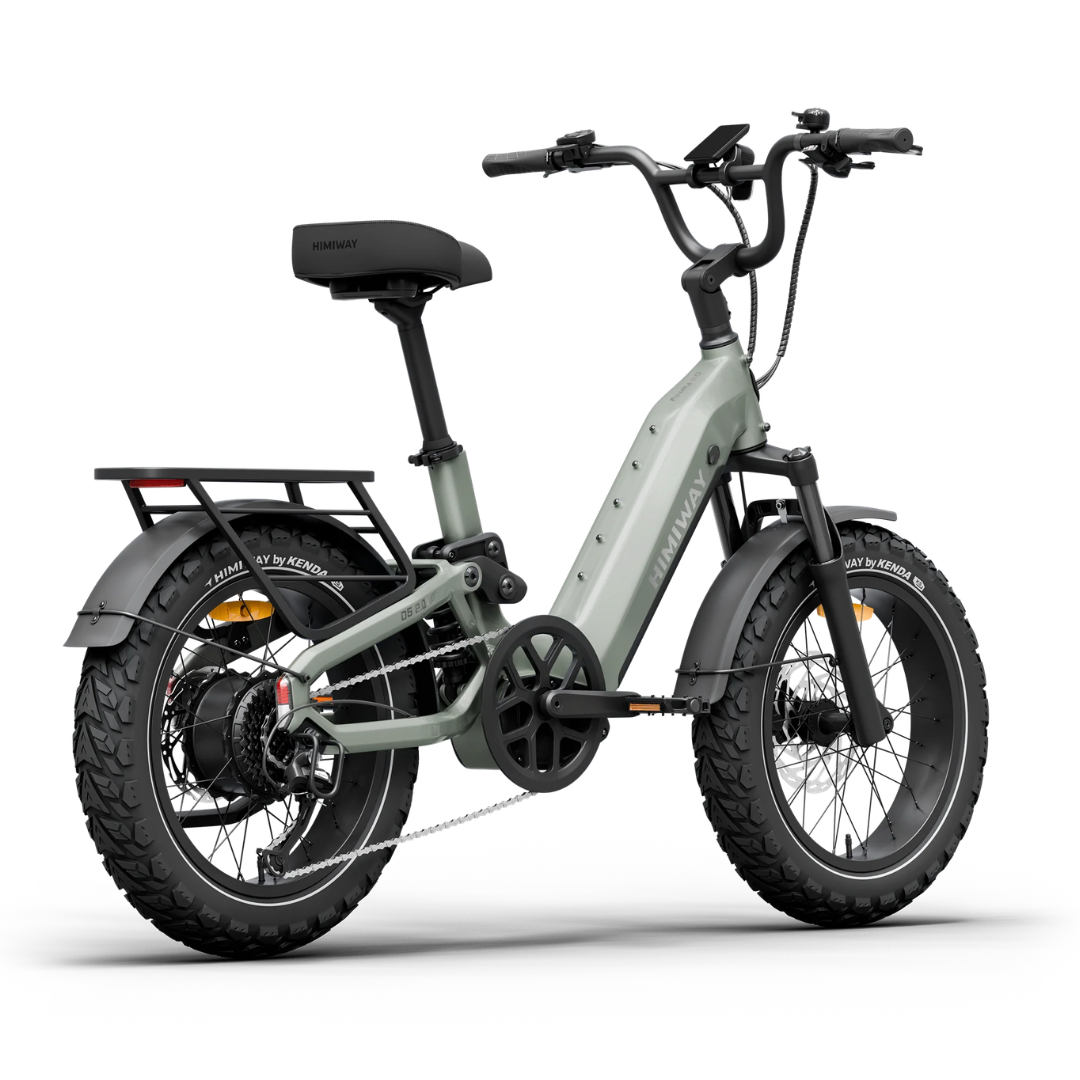

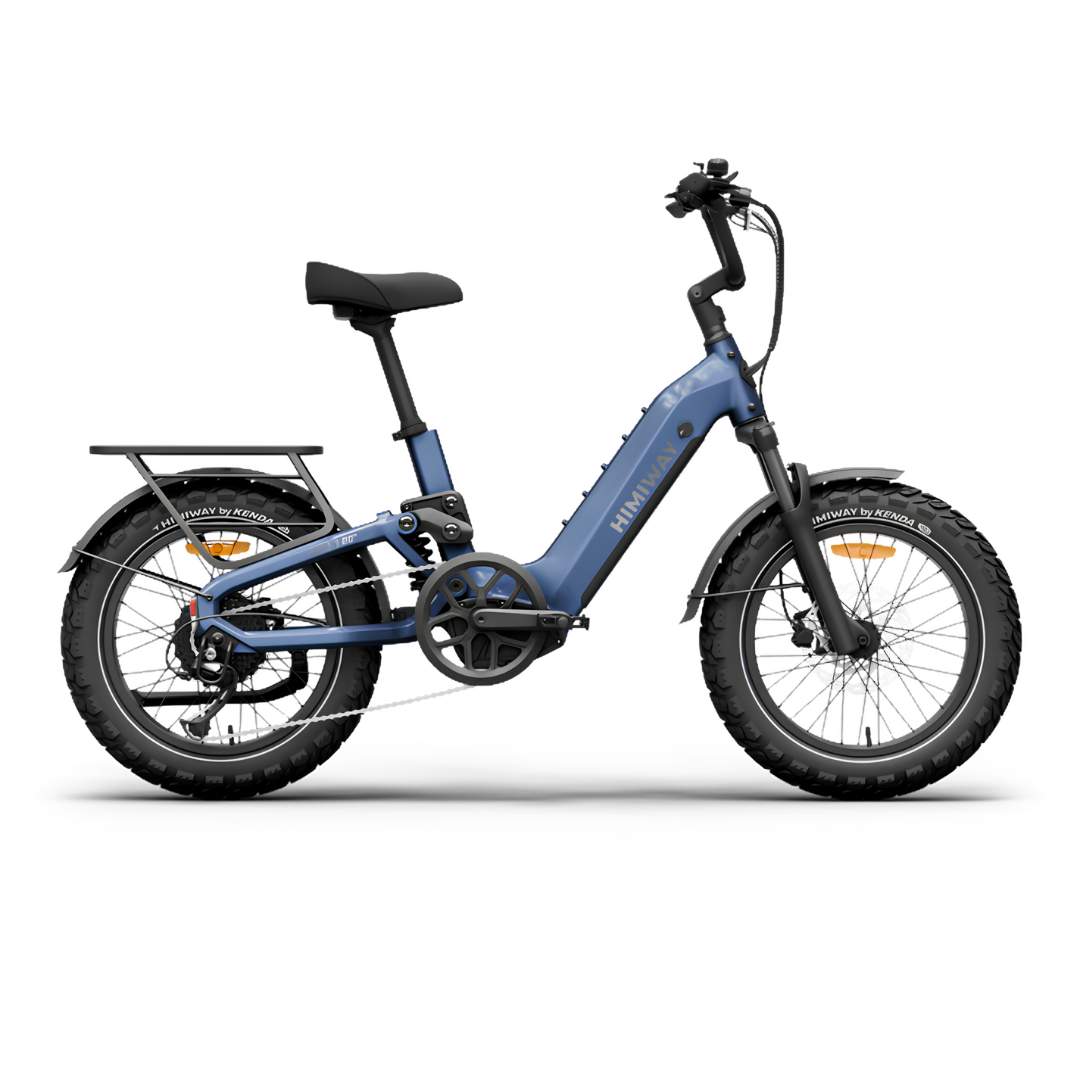

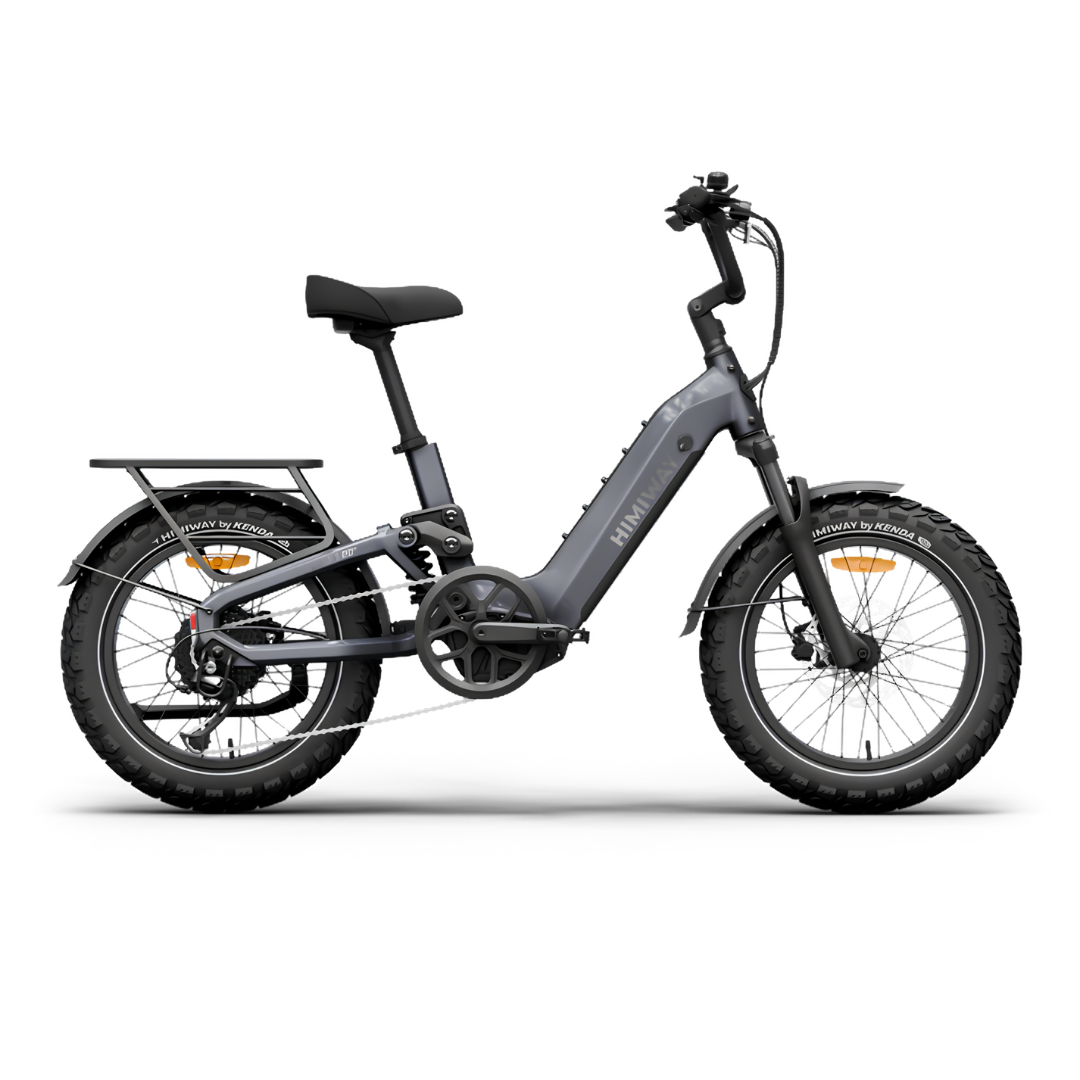

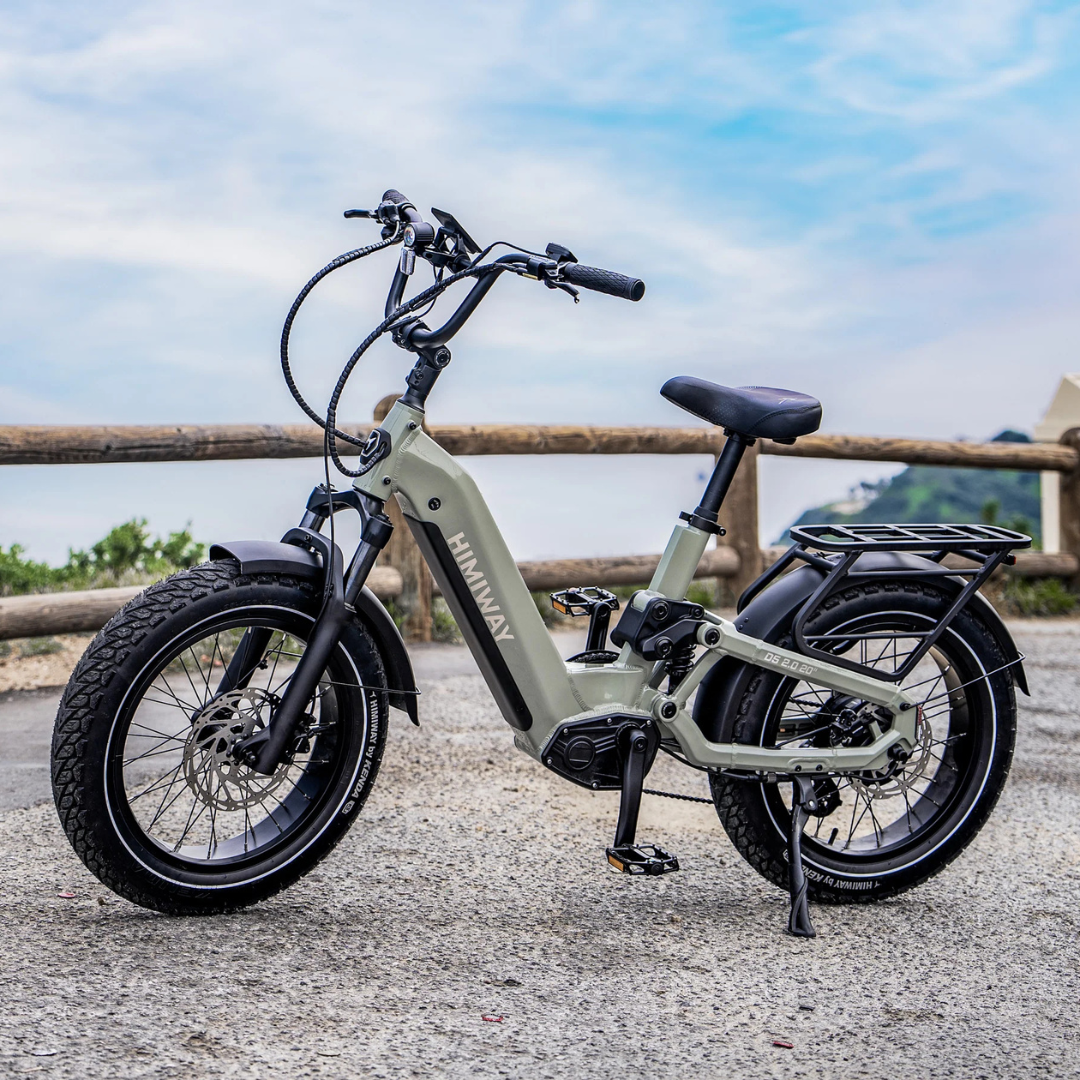

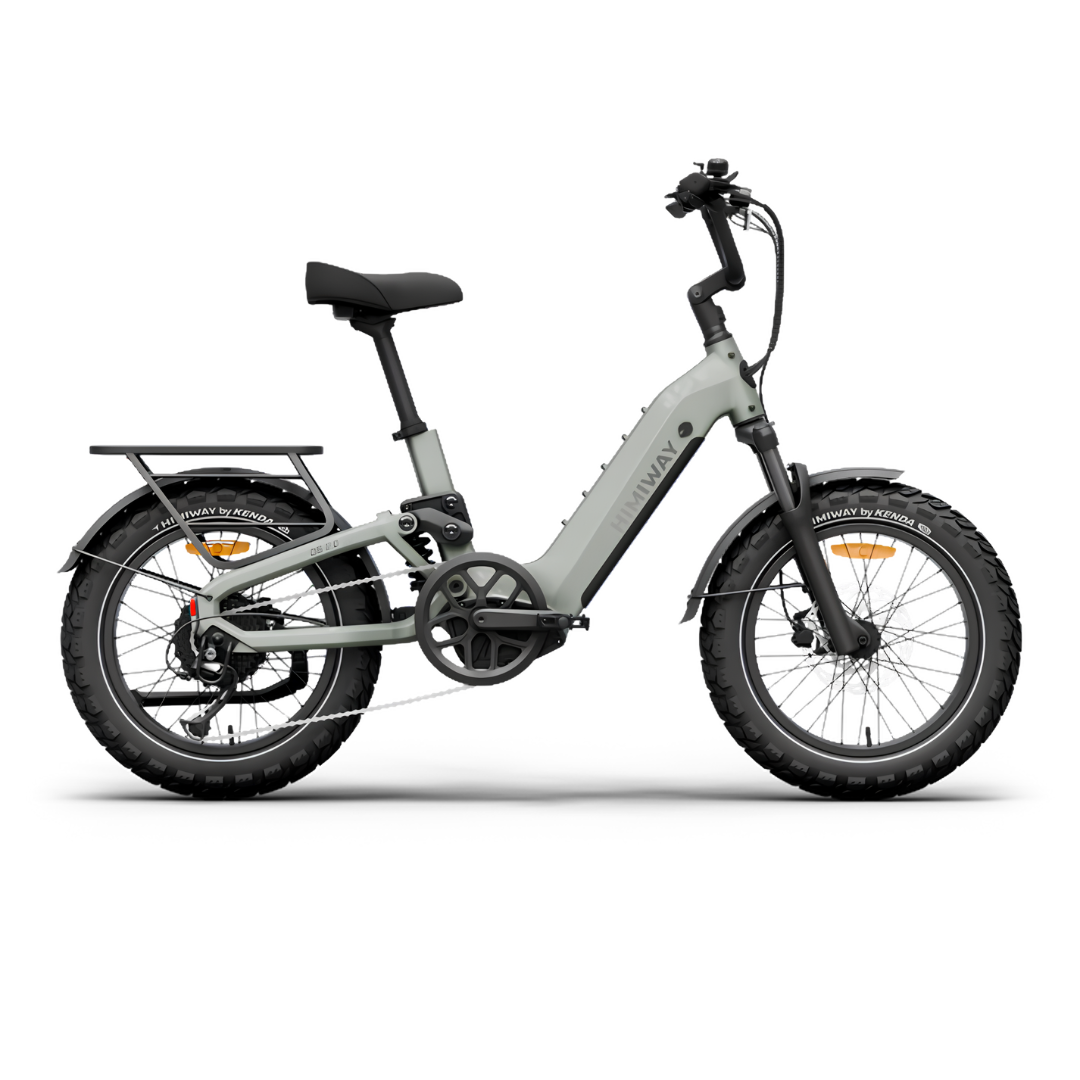

Himiway D5 2.0 20" Fat Tire Full Suspension Electric Bike

The Himiway D5 2.0 20" is a compact full-suspension electric bike built for riders who want comfort, control, and easier handling. Its step-thru frame, compact 20" wheels, and low standover height make mounting and maneuvering more accessible for daily rides, recreational cycling, and uneven terrain.

Powered by a 48V 750W motor with 90Nm of torque, the D5 2.0 20" delivers strong pedal assistance while keeping the ride easy to control. The switchable torque and cadence sensor system lets riders choose between a more responsive ride feel or smoother steady assistance.

The bike includes full suspension, 20x4.0" Kenda fat tires, Tektro hydraulic disc brakes, an adjustable stem, a memory foam comfort saddle, integrated lighting, and a 440 lb bike load capacity for a stable and comfortable riding experience.

Key Features

• Compact Step-Thru Design: The compact 20" wheel design and low standover height make the bike easier to mount, control, and maneuver.
• Full Suspension Comfort: The frame includes rear wheel travel and a hydraulic suspension fork with lock-out to help smooth out rough roads, gravel paths, and uneven terrain.
• 750W Motor: The 48V 750W motor delivers 90Nm of torque for confident acceleration and hill-climbing assistance.
• Torque / Cadence Switchable Sensor: Riders can switch between torque and cadence sensing for two different riding experiences.
• Auto Pedal Assist: Auto Pedal Assistant and 5 PAS levels provide flexible support for different riding conditions.
• 20x4.0" Fat Tires: Kenda x Himiway fat tires with K-Shield puncture resistance and reflective sidewalls help support stability and visibility.
• Tektro Hydraulic Disc Brakes: Hydraulic disc brakes with power cutoff levers provide controlled braking performance.
• Color Display: The 3.5" full-color display shows ride information clearly and includes Bluetooth, high brightness, and adjustable angle support.
• Integrated Lighting: The bike includes a high-output integrated front LED light and rear light with braking indicator.
• Comfort Cockpit: The adjustable stem, ergonomic grips, quick-release seatpost clamp, and memory foam comfort saddle support a more comfortable riding position.
• High Load Capacity: The bike supports a 440 lb bike load capacity and a 120 lb rear rack load capacity.

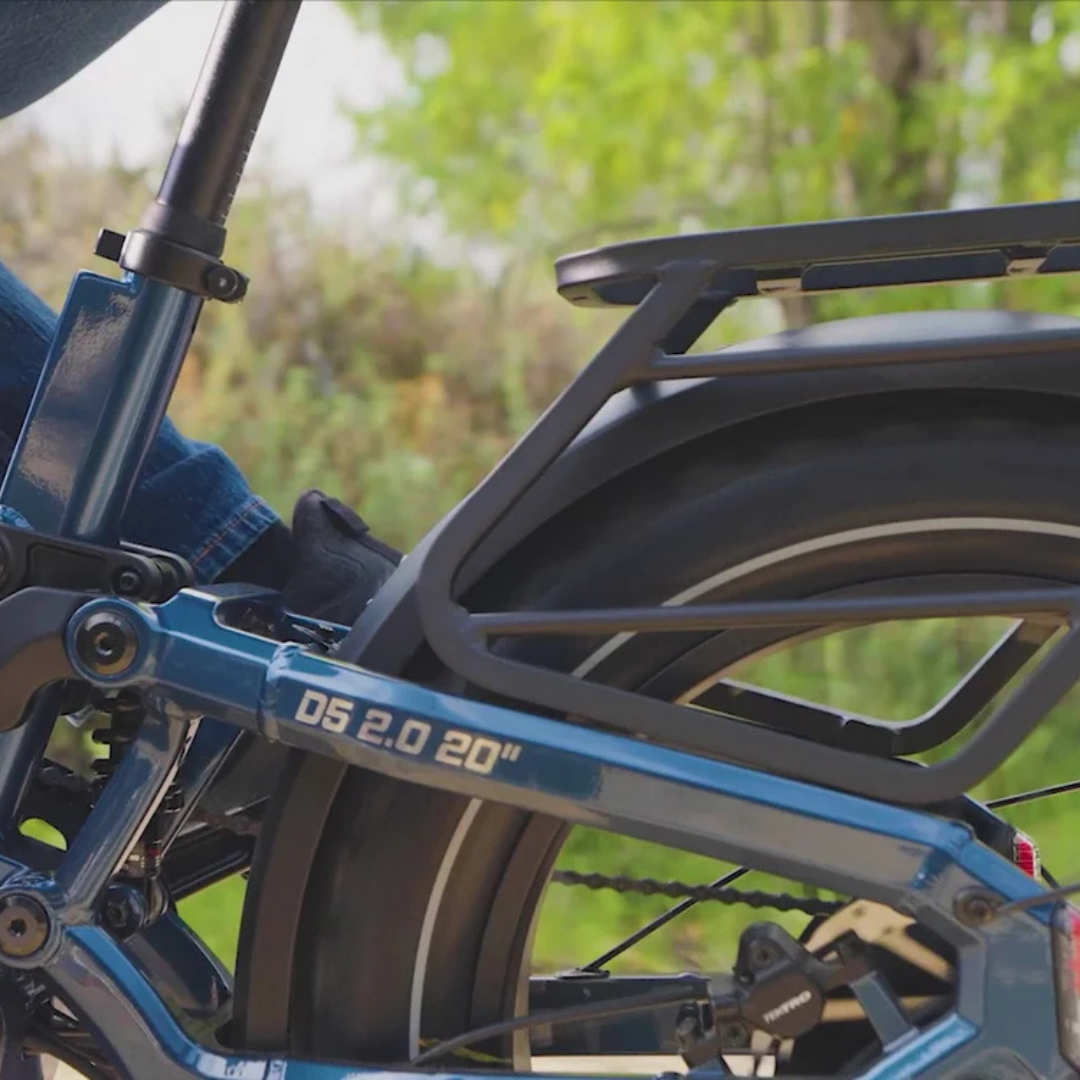

• Included Rear Rack and Fenders: The bike comes with a MIK HD compatible alloy rear rack and front and rear full-coverage fenders.

Specifications

• Frame: Aluminum Alloy, Rear Wheel 3.9" Travel
• Fork: Himiway Hydraulic Suspension 3.5" Travel with Lock-out

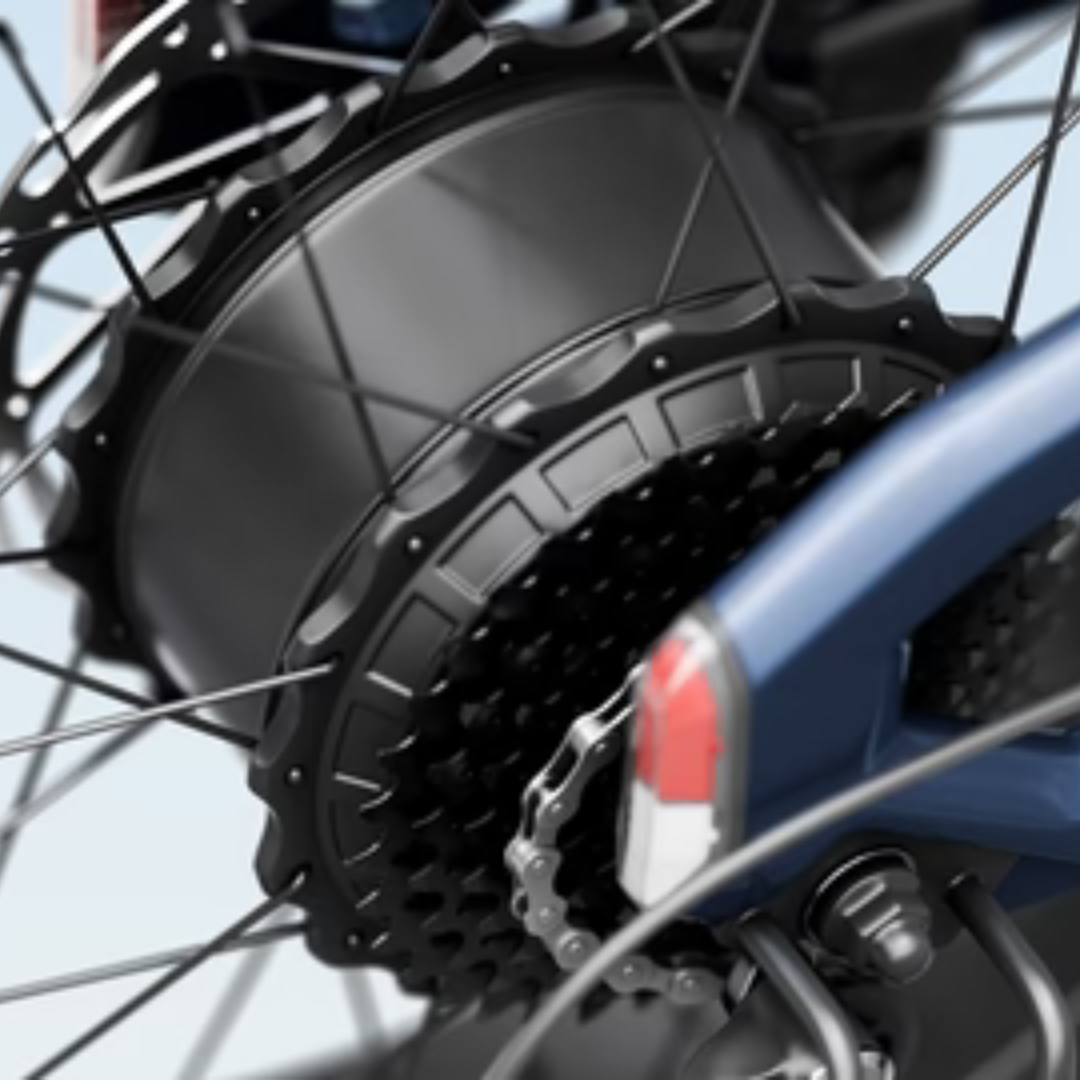

• Motor: 48V, 750W, 90Nm
• Battery: 48V, 15Ah, IPX6, Certificated by UL 2271
• Cell: Samsung/LG 21700 cell, Certificated by UL 2580
• Charger: 48V, 3.0A Fast Charger

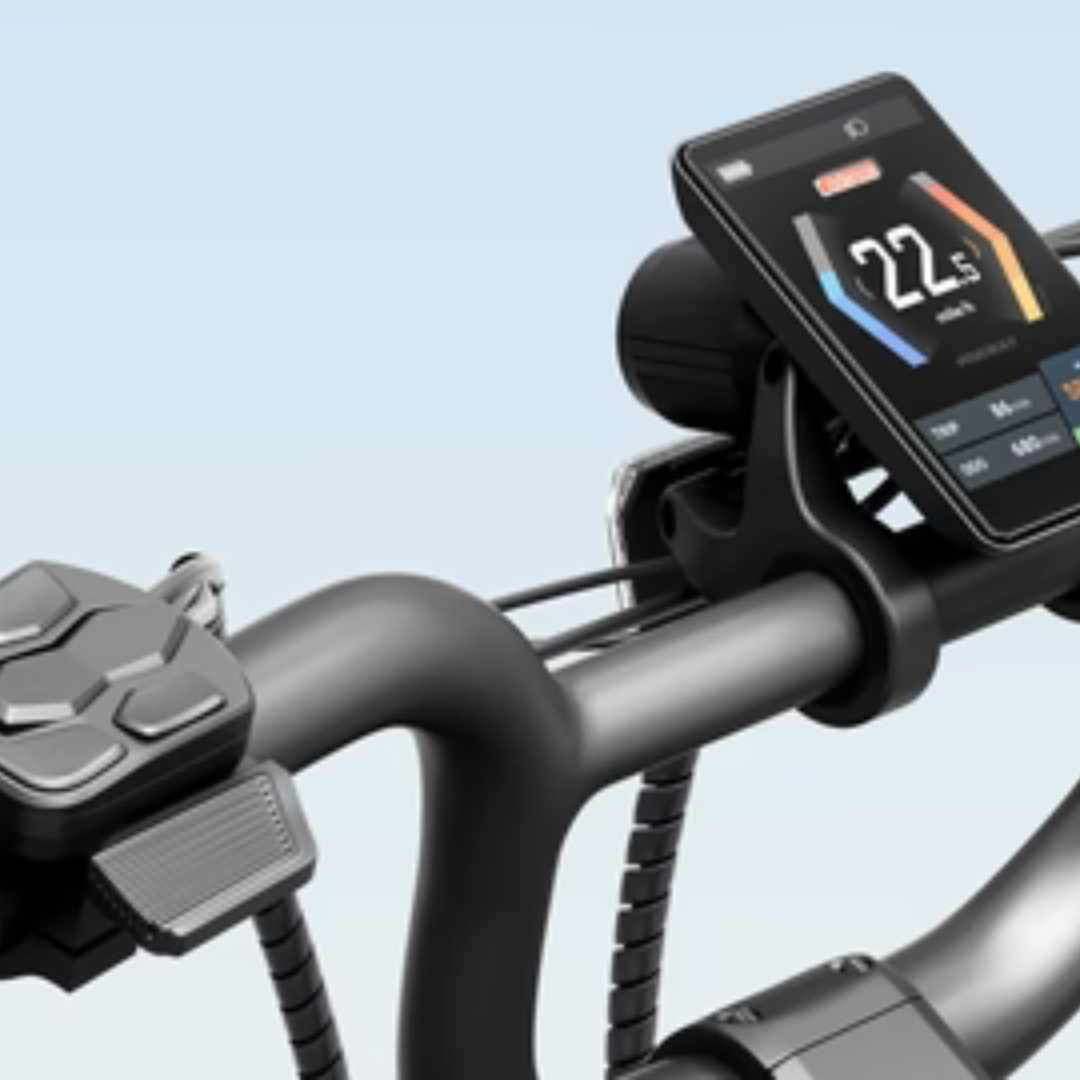

• Display: 3.5" Full Color, High Brightness, Bluetooth, Adjustable Angle
• Sensor: Torque / Cadence Switchable

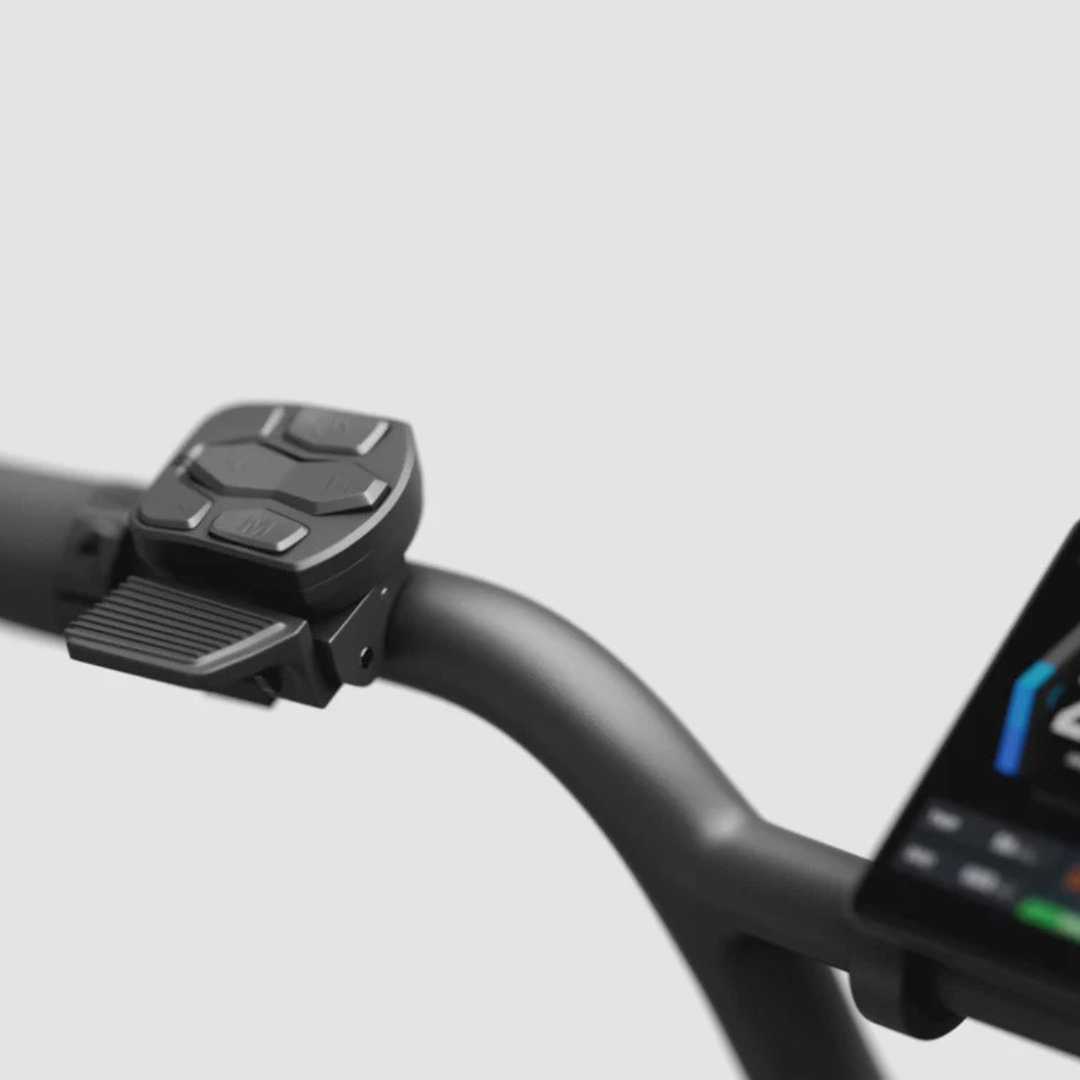

• Throttle: Ergonomic Thumb Throttle
• Pedal Assist: Auto Pedal Assistant + 5 PAS Levels
• Walk Mode: 1.9–3.7 MPH
• Front Light: 130 Lux / 800 LM High-Output Integrated LED, Adjustable Angle
• Rear Light: Braking Indicator, rear light steady/flash, integrated with the frame
• Waterproof Rating: IPX5 whole bike, IPX6 battery
• Max Speed Default: 20 MPH
• Max Speed Adjustable Range: 4–28 MPH
• Class: 1/2/3
• Throttle Range: 40 Miles
• Pedal Assist Range: 70 Miles
• Chainrings: 52T Narrow Wide Chainring
• Crankset: Aluminum Alloy, 6.7"
• Freewheel: 8-speed, 11-34T
• Rear Derailleur: SHIMANO 8-speed
• Shift Lever: SHIMANO 8-speed
• Chain: 8-speed
• Brake: Tektro Hydraulic Disc Brake
• Rotors: 8.0" Front / 7.1" Rear
• Brake Levers: Aluminum Alloy, with power cutoff
• Rims: Aluminum alloy
• Front Hub: Aluminum alloy, Anti-Theft Quick Release
• Tire: 20x4.0" Kenda x Himiway, K-Shield Puncture-Resistant, Reflective Sidewalls
• Handlebar: Aluminum Alloy, 1.25" diameter, 26.0" width
• Grips: Durable ergonomic grips, lockable

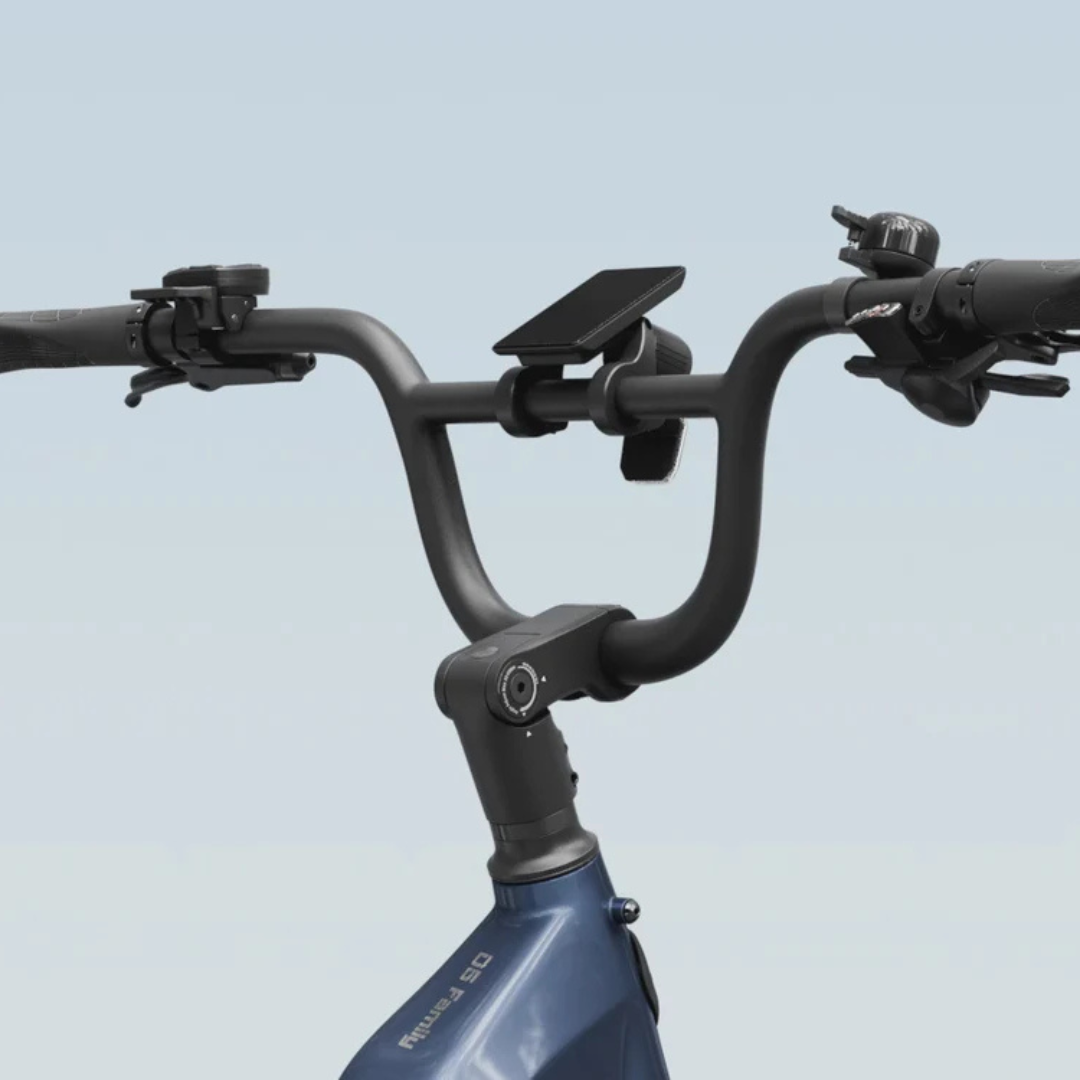

• Stem: 0–60° Adjustable, Aluminum Alloy, 1.25" diameter, 2.4" length

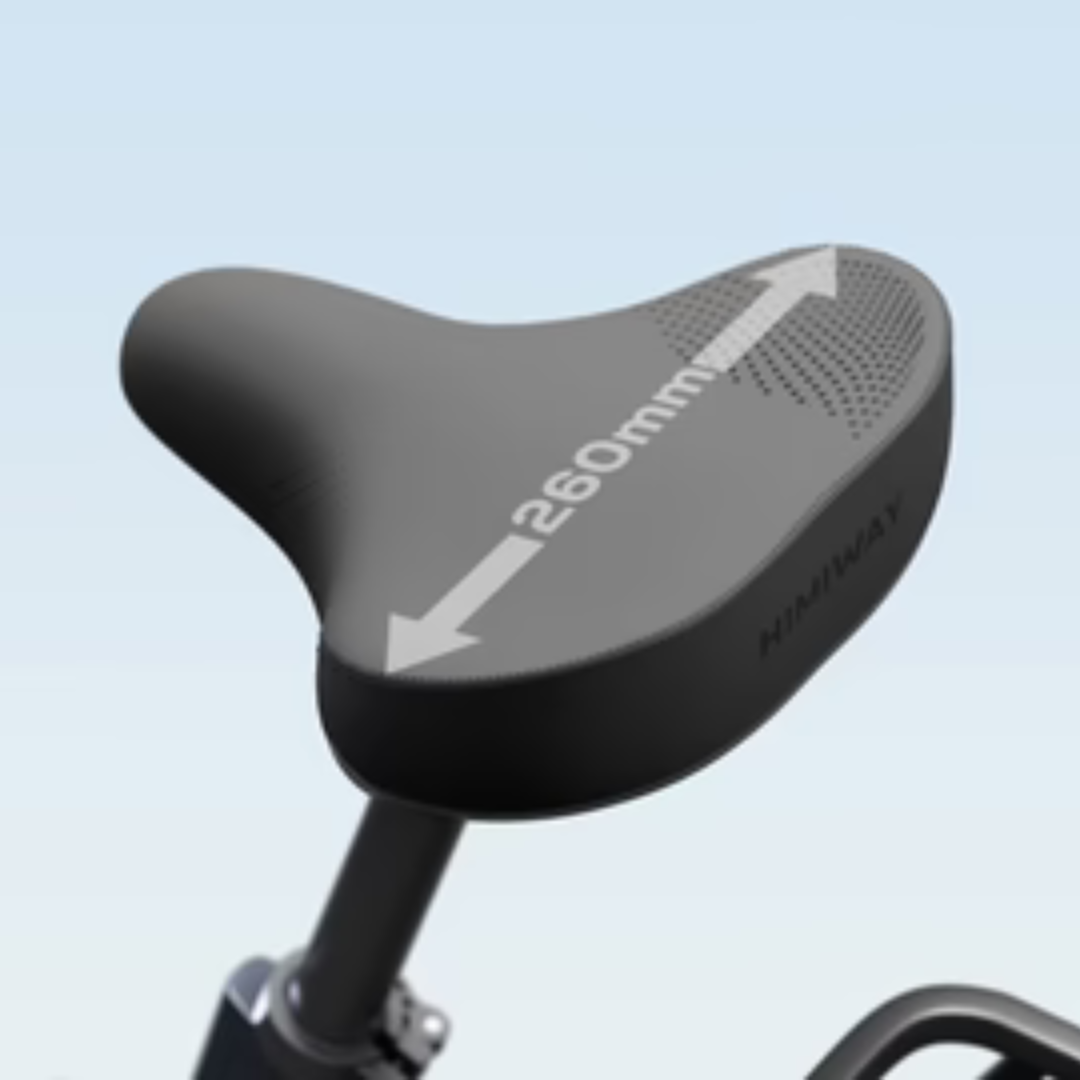

• Saddle: Memory Foam comfort ergonomic seat
• Seatpost: Aluminum Alloy, 1.33" diameter, 13.8" length
• Clamp: Aluminum Alloy, quick release
• Fenders: Plastic, Front and Rear Full Coverage
• Rear Rack: MIK HD Compatible Alloy
• Pedals: Aluminum alloy
• Kickstand: Aluminum Alloy, included, rear mount
• Bike Weight: 80 lbs
• Bike Load Capacity: 440 lbs
• Rider Weight Limit: 265 lbs
• Rear Rack Load Capacity: 120 lbs
• UL Certification: UL 2849

Size Guide

• Size: Regular
• Recommended Rider Height: 4'11"–6'3"
• A Total Length: 70"
• B Handlebar Height: 44"
• C Handlebar Width: 28.3"
• D Wheelbase: 46.5"
• E Wheel Diameter: 23.3"
• F Min Seat Height: 30.7"
• G Seat Adjustment Height: 9"
• H Chain Stay Length: 18.9"
• I Frame Stack: 20.6"
• J Frame Reach: 16.8"
• K Effective Top Tube: 24.3"
• L Head Tube Length: 5.9"
• M Head Angle: 68°
• N Standover Height: 16.9"

Included

• E-bike
• Protection Fender Kit
• Rear Rack
• 16 in 1 Repair Tool
• Charger
• Manual

Product Support

• Easy to Assemble
