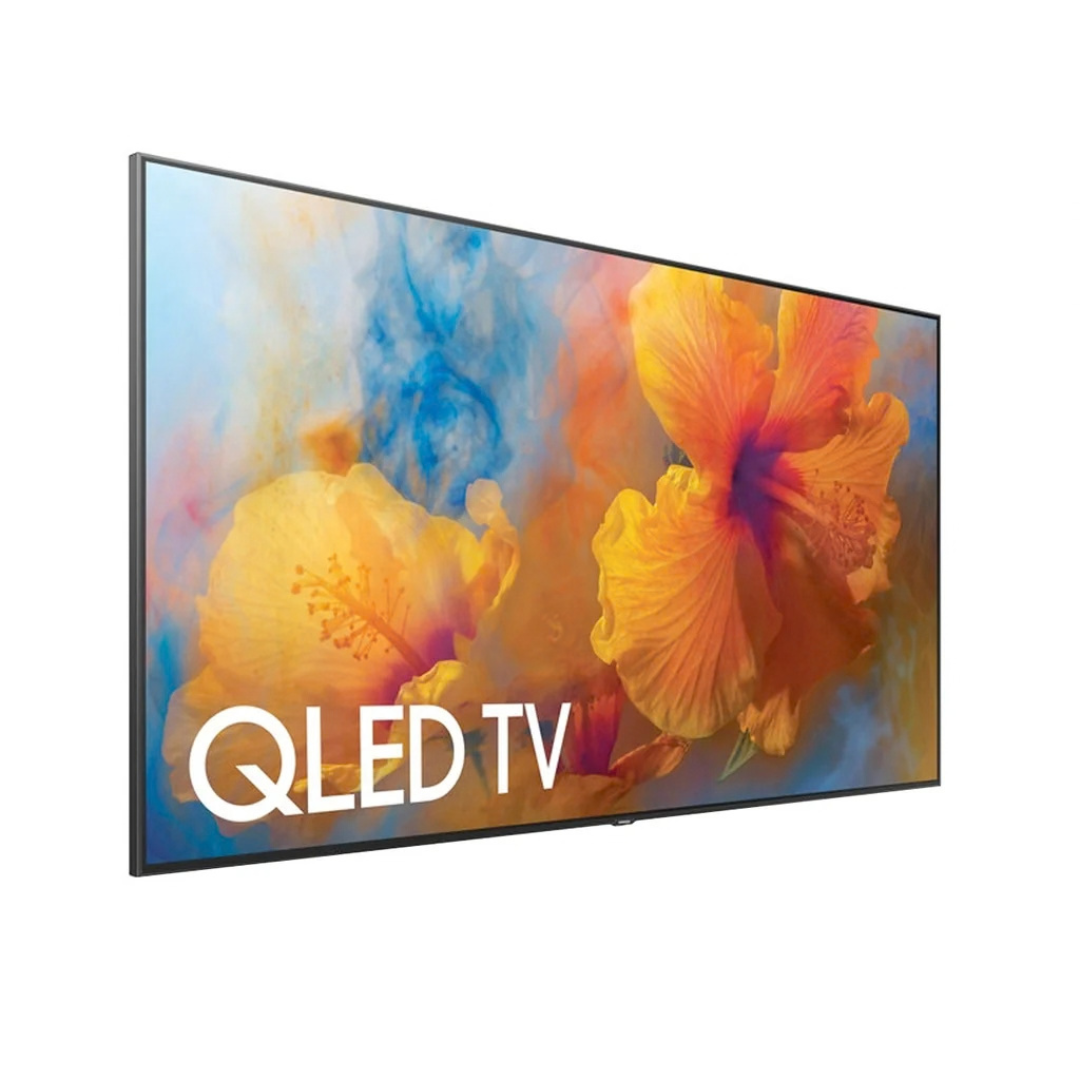

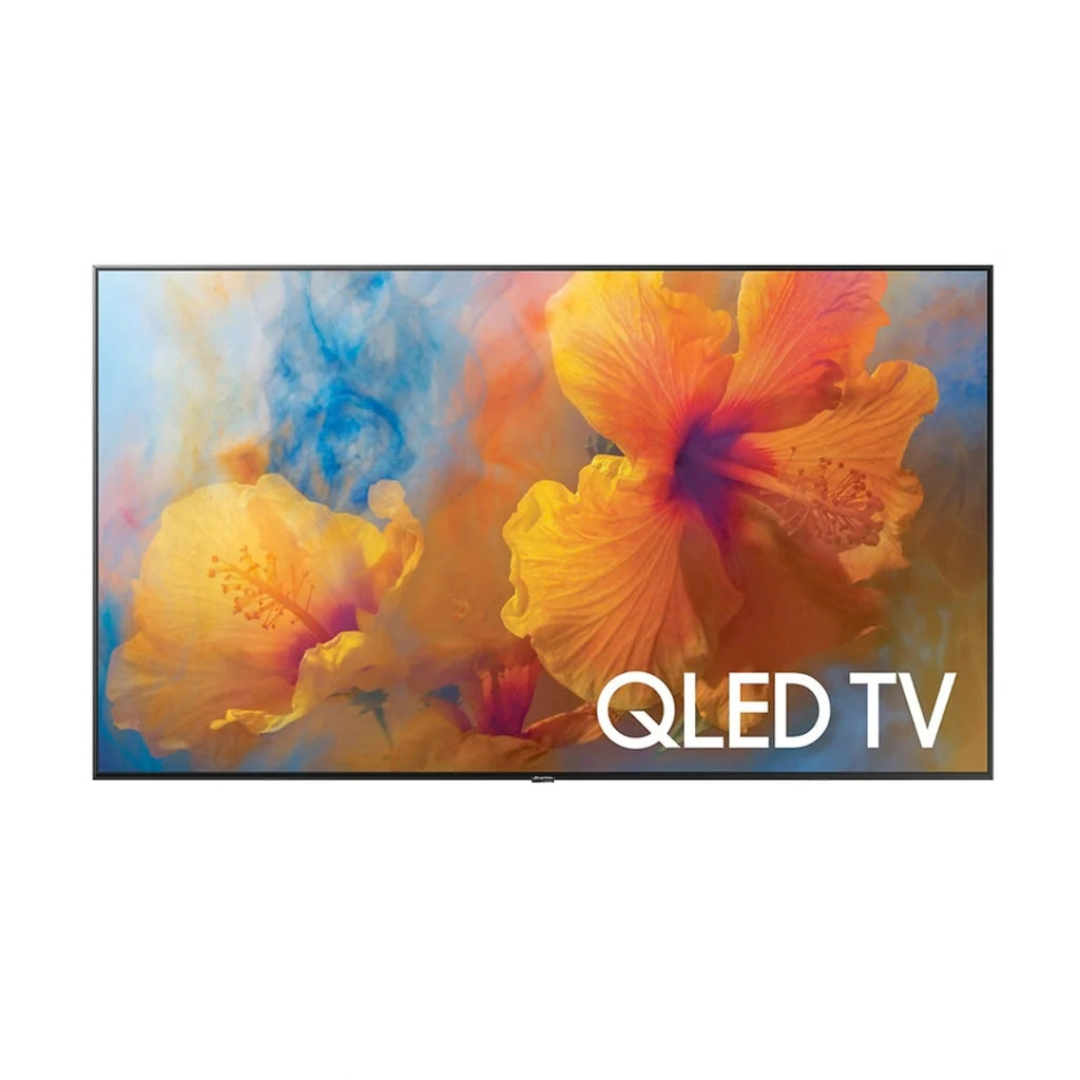

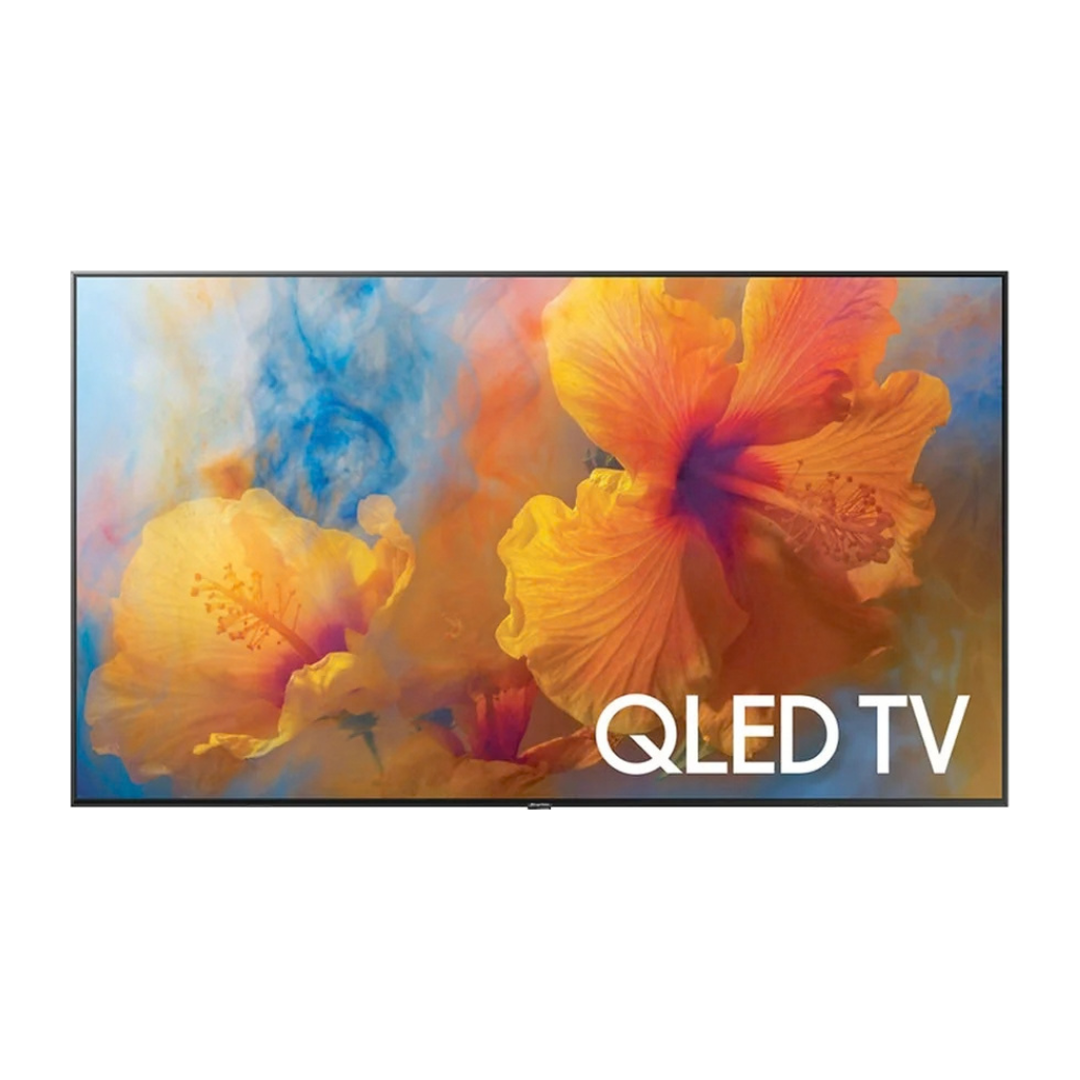

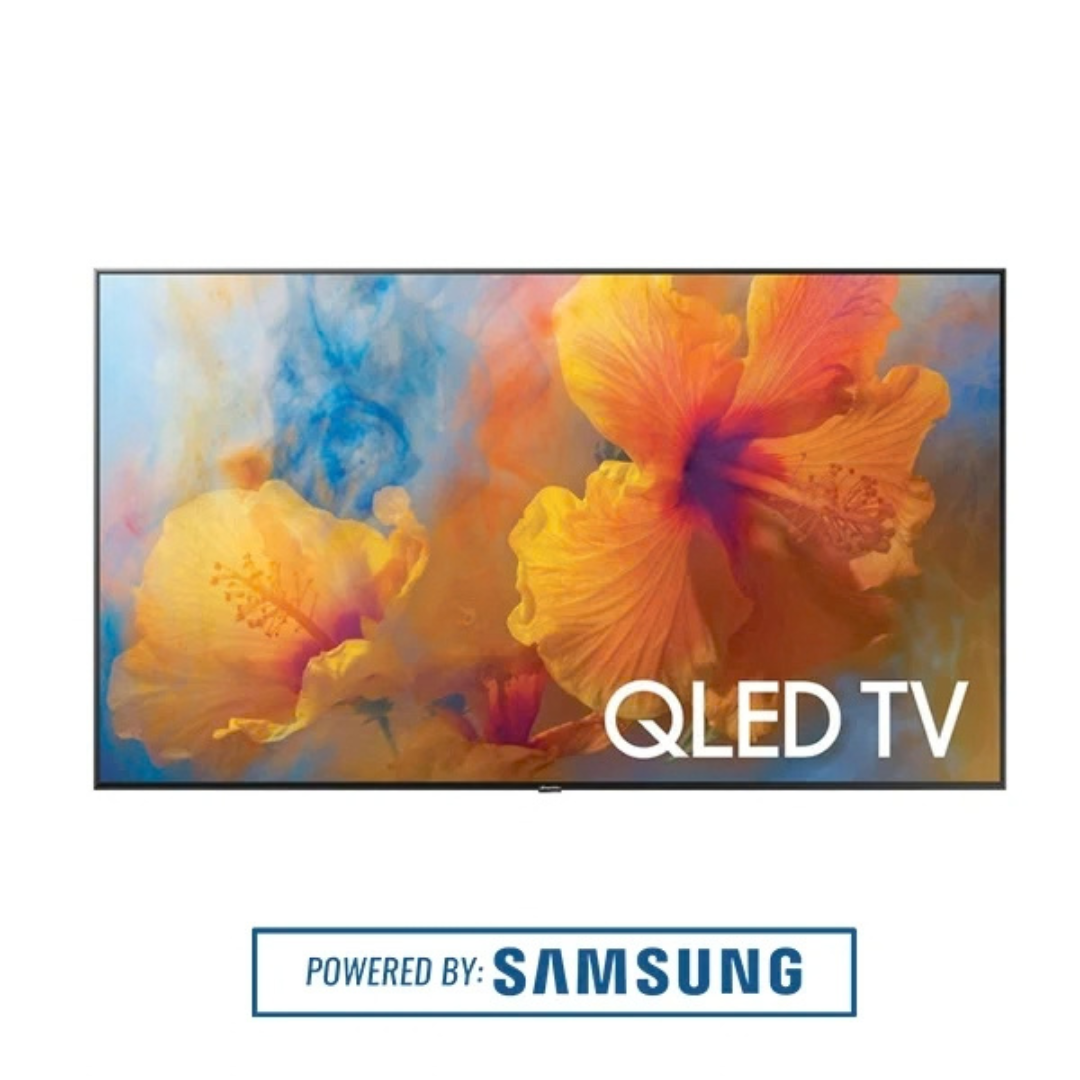

MirageVision Partial Sun Outdoor TV – Ruby Series

This partial-sun outdoor television combines UHD 4K resolution with a high-brightness Quantum Mini LED Full Array display. It is designed for outdoor entertainment spaces such as patios, porches, pool areas, and outdoor kitchens with partial-sun exposure.

The display uses Quantum Dot and HDR picture technologies, along with proprietary outdoor calibration that adjusts brightness, color, gamma, and contrast for daytime outdoor viewing. Its Samsung-based smart platform provides built-in streaming and connected entertainment capabilities.

Available in five screen sizes, the television supports wired and wireless connections along with Ex-Link and IP control. Each size has its own dimensions, weight, mounting pattern, power requirements, shipping measurements, SKU, and selling price.

Key Features

• Partial-Sun Application: Configured for outdoor installations exposed to partial sunlight.
• Quantum Dot Technology: Supports expanded color reproduction through a Samsung-based QLED display platform.
• HDR Picture Processing: Enhances contrast and visible detail across bright and dark portions of the picture.
• Outdoor Picture Calibration: Proprietary MPET calibration adjusts brightness, color, gamma, and contrast for outdoor daytime viewing.
• Smart Entertainment: Built-in smart-TV functionality provides access to supported apps and streaming content.
• Integrated Device Control: Supports connected entertainment equipment through Ex-Link and IP control.
• Exterior Design: Features a thin-bezel profile with a clean black finish.

Specifications

• Resolution: UHD 4K
• Peak Brightness: 1,000 nits
• Sustained Brightness: 900 nits
• Environmental Rating: IP55
• Operating Temperature: 50°F to 122°F
• Smart TV Operating System: Tizen
• OEM Platform: Samsung
• Backlight Type: Quantum Mini LED Full Array
• Inputs: Four HDMI inputs, USB, tuner, and Ethernet
• Wireless Connectivity: Wi-Fi 6 and Bluetooth 5.3
• Control Type: Ex-Link (RS-232) and IP control
• Additional I/O: Optical audio and eARC
• 55-Inch Product Weight: 29 lb
• 55-Inch Maximum Power Consumption: 185 watts
• 55-Inch VESA Mount Pattern: 300 × 200, M8
• 55-Inch Carton Shipping Weight: 44 lb
• 65-Inch Product Weight: 38 lb
• 65-Inch Maximum Power Consumption: 260 watts
• 65-Inch VESA Mount Pattern: 400 × 300, M8
• 65-Inch Carton Shipping Weight: 77 lb
• 75-Inch Product Weight: 51 lb
• 75-Inch Maximum Power Consumption: 300 watts
• 75-Inch VESA Mount Pattern: 400 × 300, M8
• 75-Inch Carton Shipping Weight: 95 lb
• 85-Inch Product Weight: 71 lb
• 85-Inch Maximum Power Consumption: 340 watts
• 85-Inch VESA Mount Pattern: 600 × 400, M8
• 85-Inch Carton Shipping Weight: 120 lb
• 100-Inch Product Weight: 130 lb
• 100-Inch Maximum Power Consumption: 430 watts
• 100-Inch VESA Mount Pattern: 600 × 400, M8
• 100-Inch Carton Shipping Weight: 201 lb

Size Guide

• 55-Inch TV Dimensions: 48.2 in W × 27.9 in H × 3.1 in D
• 55-Inch Carton Dimensions: 54 × 32 × 6 in
• 65-Inch TV Dimensions: 56.8 in W × 32.7 in H × 3.1 in D
• 65-Inch Carton Dimensions: 68 × 12 × 43 in
• 75-Inch TV Dimensions: 65.6 in W × 37.7 in H × 3.1 in D
• 75-Inch Carton Dimensions: 77 × 12 × 48 in
• 85-Inch TV Dimensions: 74.4 in W × 44.2 in H × 3.1 in D
• 85-Inch Carton Dimensions: 86 × 13 × 52 in
• 100-Inch TV Dimensions: 87.8 in W × 50.1 in H × 3.3 in D
• 100-Inch Carton Dimensions: 96 × 15 × 63 in

Included

• Outdoor television
• Protective TV cover
• Remote control
• Manual
• Hardware pack

Product Support

MirageVision Ruby Series Specification Sheet (PDF)
