MirageVision Full Sun Outdoor TV – Platinum Series

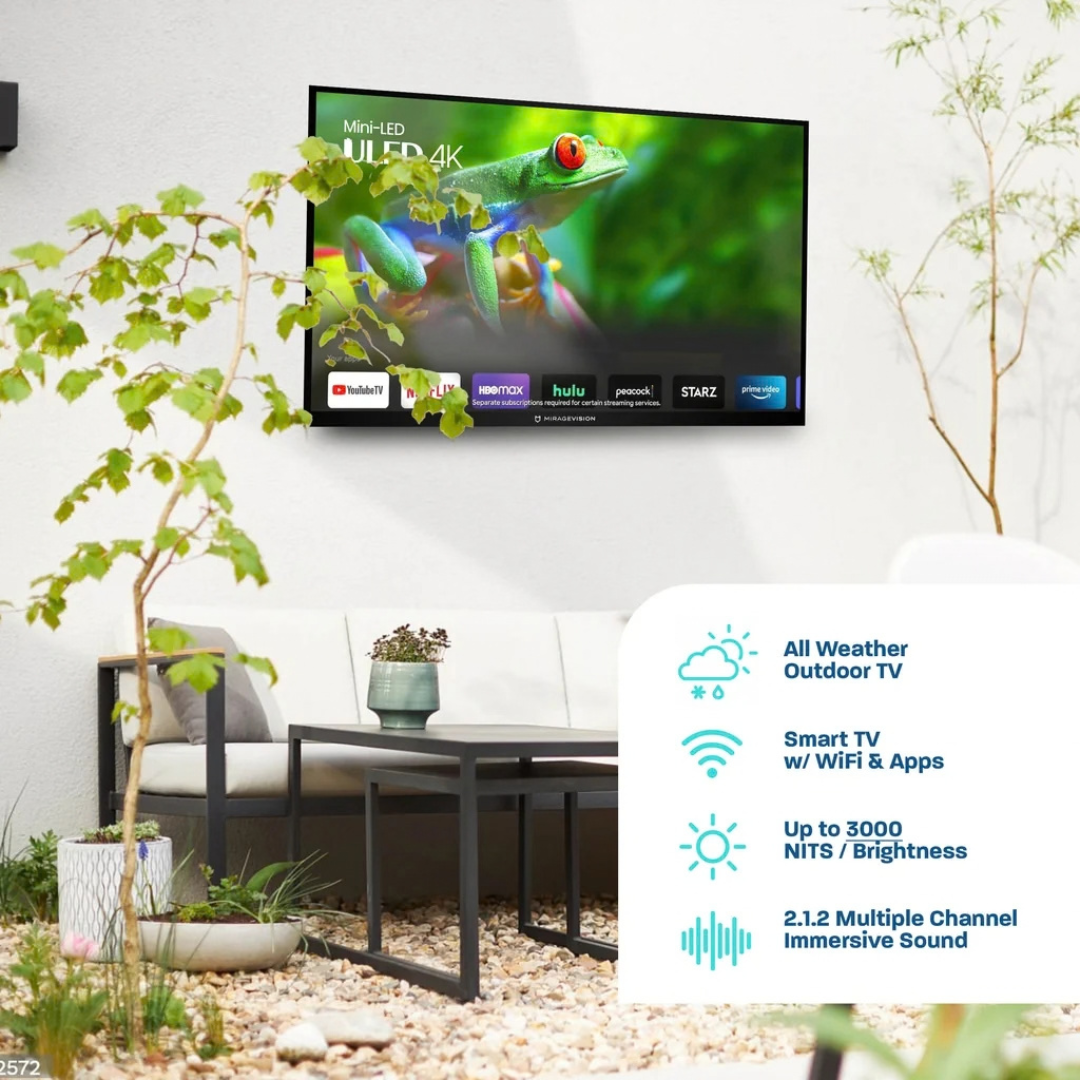

This full-sun outdoor television is designed for outdoor viewing areas exposed to direct sunlight. Its high-brightness display, UHD 4K resolution, outdoor-rated enclosure, and wide operating-temperature range support year-round installation in demanding residential and commercial environments.

RGB MiniLED backlighting, precise local dimming, broad HDR format support, and Quantum Dot technology deliver detailed images with enhanced contrast and vivid color. Integrated smart entertainment and multichannel audio provide a complete viewing experience without requiring a separate streaming platform or sound system.

Key Features

• Full-Sun Application: Designed for outdoor viewing locations exposed to direct sunlight.
• Precise Local Dimming: Provides greater backlight control for enhanced contrast and HDR presentation.
• Quantum Dot Color: Produces more than one billion shades of color across supported content.
• Wide HDR Support: Compatible with Dolby Vision, HDR10, HDR10+, and HLG formats.
• Integrated Smart Entertainment: Google smart TV functionality provides access to supported streaming content and apps.
• Built-In Multichannel Audio: A 50-watt, 2.1.2-channel audio system with Dolby Atmos delivers integrated sound.

Specifications

• Resolution: UHD 4K
• 55-Inch Brightness: 2,800-nit peak brightness and 2,100-nit sustained brightness
• 65-, 75-, 85-, and 100-Inch Brightness: 3,000-nit peak brightness and 2,500-nit sustained brightness
• Outdoor Rating: IP55
• Operating Temperature: 50°F to 122°F
• OEM Platform: MV-TV – BOE
• Backlight: RGB MiniLED
• Wireless Connectivity: Wi-Fi 6E and Bluetooth 5.4
• Control: Serial/IP, Control4, and CEC
• Additional Audio Connections: Optical and eARC
• 55-Inch Inputs: Three HDMI inputs, USB, NexGen tuner, composite input, and Ethernet
• 55-Inch Product Weight: 34 lb
• 55-Inch VESA Mounting Pattern: 400 × 400 mm with M6 hardware
• 55-Inch Carton Shipping Weight: 55.1 lb
• 65-Inch Inputs: Three HDMI inputs, USB, NexGen tuner, composite input, Ethernet, and DisplayPort
• 65-Inch Product Weight: 54 lb
• 65-Inch VESA Mounting Pattern: 400 × 400 mm with M6 hardware
• 65-Inch Carton Shipping Weight: 95 lb
• 75-Inch Inputs: Three HDMI inputs, USB, NexGen tuner, composite input, Ethernet, and DisplayPort
• 75-Inch Product Weight: 76 lb
• 75-Inch VESA Mounting Pattern: 600 × 300 mm with M8 hardware
• 75-Inch Carton Shipping Weight: 140 lb
• 85-Inch Inputs: Three HDMI inputs, USB, NexGen tuner, composite input, Ethernet, and DisplayPort
• 85-Inch Product Weight: 105 lb
• 85-Inch VESA Mounting Pattern: 600 × 400 mm with M8 hardware
• 85-Inch Carton Shipping Weight: 180 lb
• 100-Inch Inputs: Three HDMI inputs, USB, NexGen tuner, composite input, Ethernet, and DisplayPort
• 100-Inch Product Weight: 156 lb
• 100-Inch VESA Mounting Pattern: 1000 × 600 mm with M8 hardware
• 100-Inch Carton Shipping Weight: 230 lb

Size Guide

• 55-Inch Product Dimensions: 48.4 in W × 28.1 in H × 3.3 in D
• 55-Inch Carton Dimensions: 54.7 in W × 33.7 in H × 7.3 in D
• 65-Inch Product Dimensions: 57.0 in W × 33.0 in H × 2.9 in D
• 65-Inch Carton Dimensions: 68 in W × 46 in H × 13 in D
• 75-Inch Product Dimensions: 65.7 in W × 37.9 in H × 2.9 in D
• 75-Inch Carton Dimensions: 78 in W × 52 in H × 13 in D
• 85-Inch Product Dimensions: 74.6 in W × 43 in H × 2.9 in D
• 85-Inch Carton Dimensions: 88 in W × 57 in H × 15 in D
• 100-Inch Product Dimensions: 88.1 in W × 52.4 in H × 2.7 in D
• 100-Inch Carton Dimensions: 95 in W × 66 in H × 17 in D

Included

• Outdoor television
• Television cover

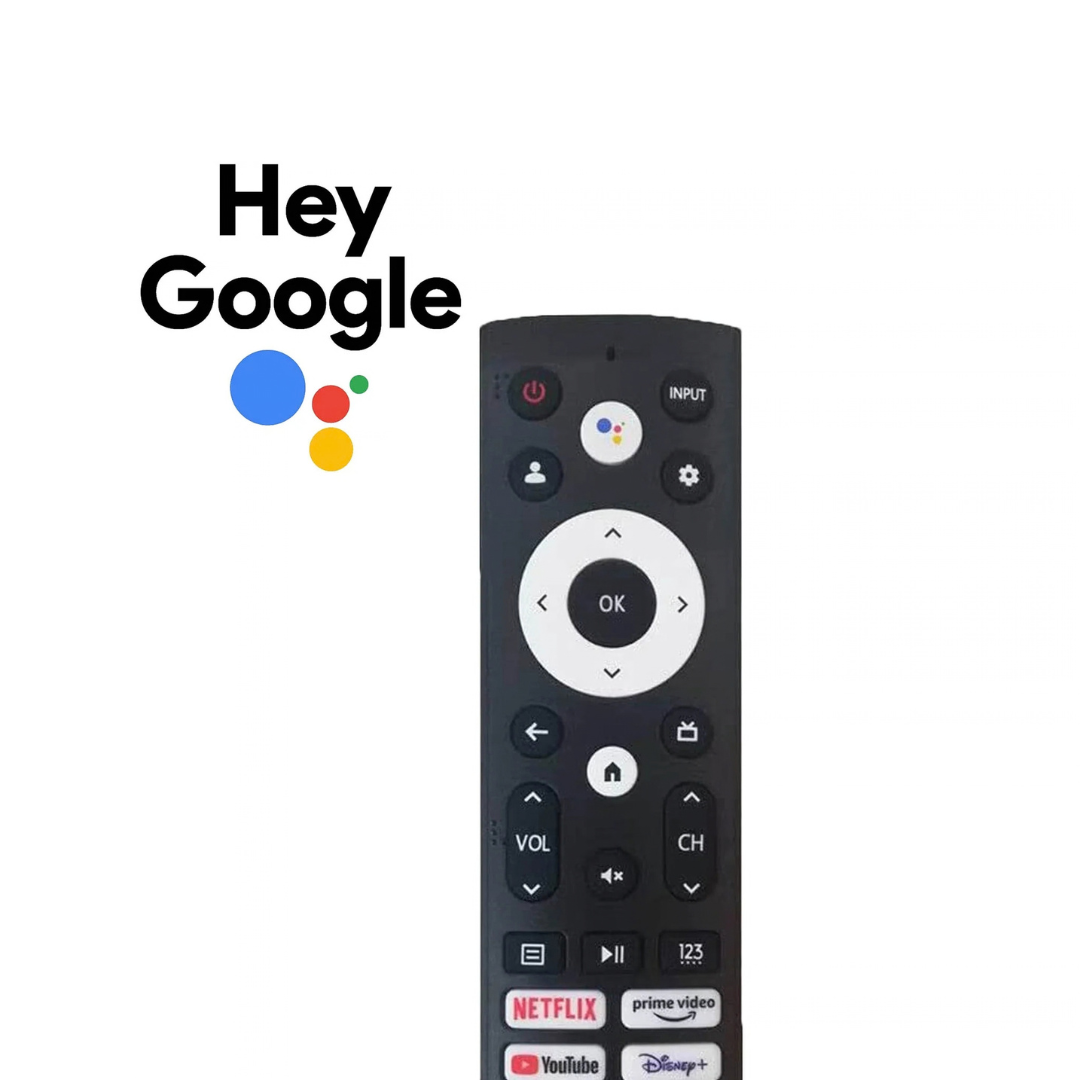

• Remote control
• Manual
• Hardware pack

Product Support

MirageVision Platinum Series Specification Sheet (PDF)
