Elina Pilates Physio Master Instructor with Tower | Pilates Reformer

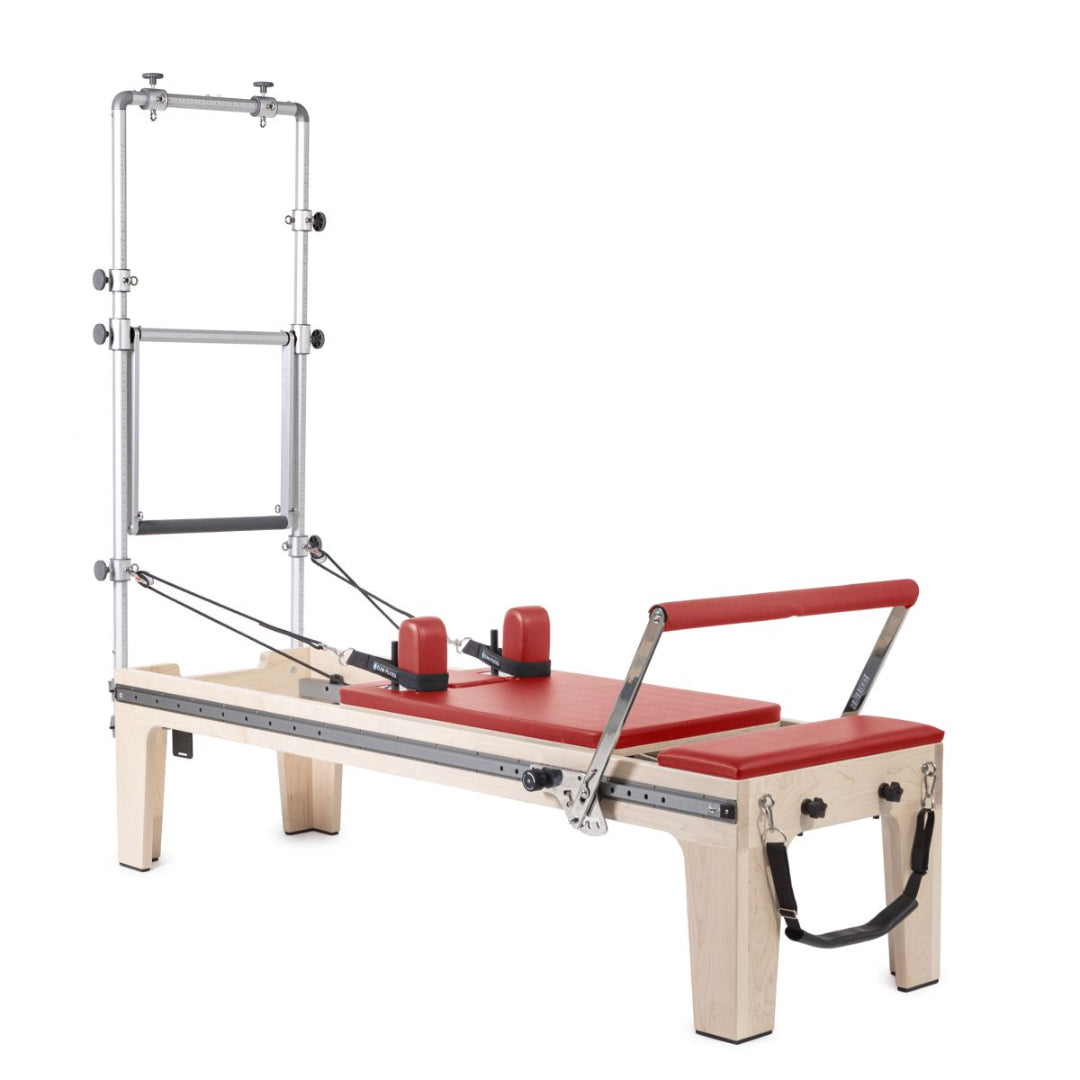

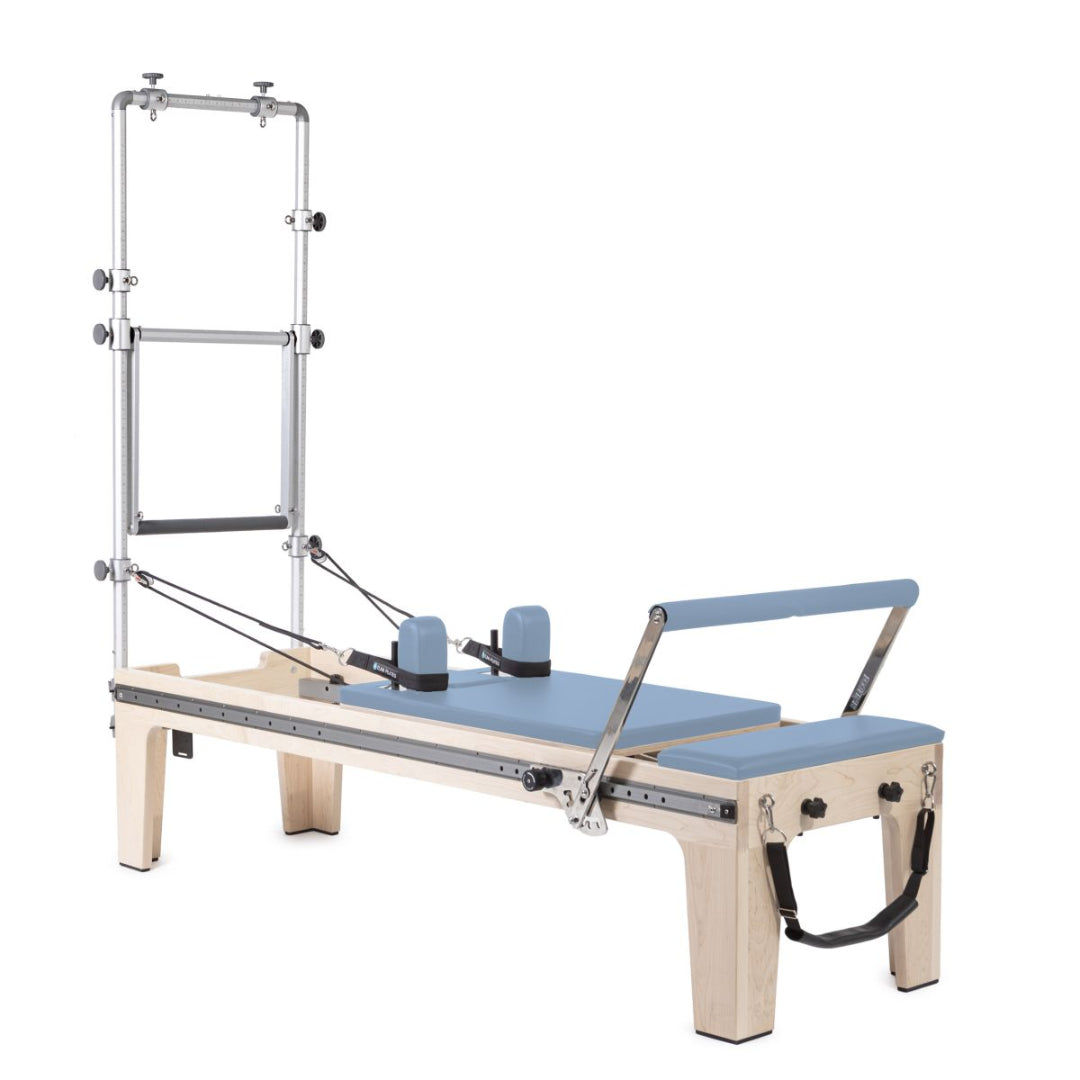

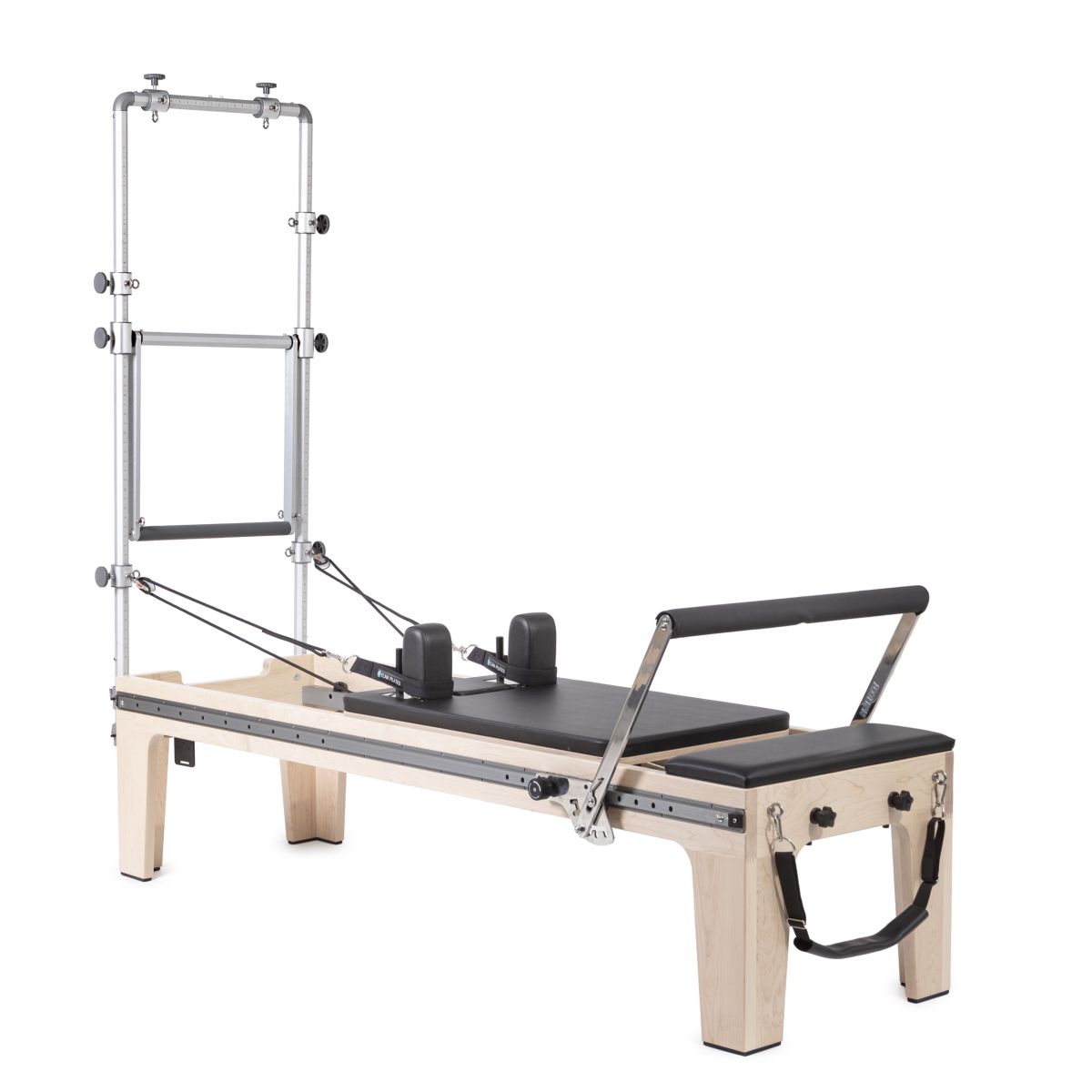

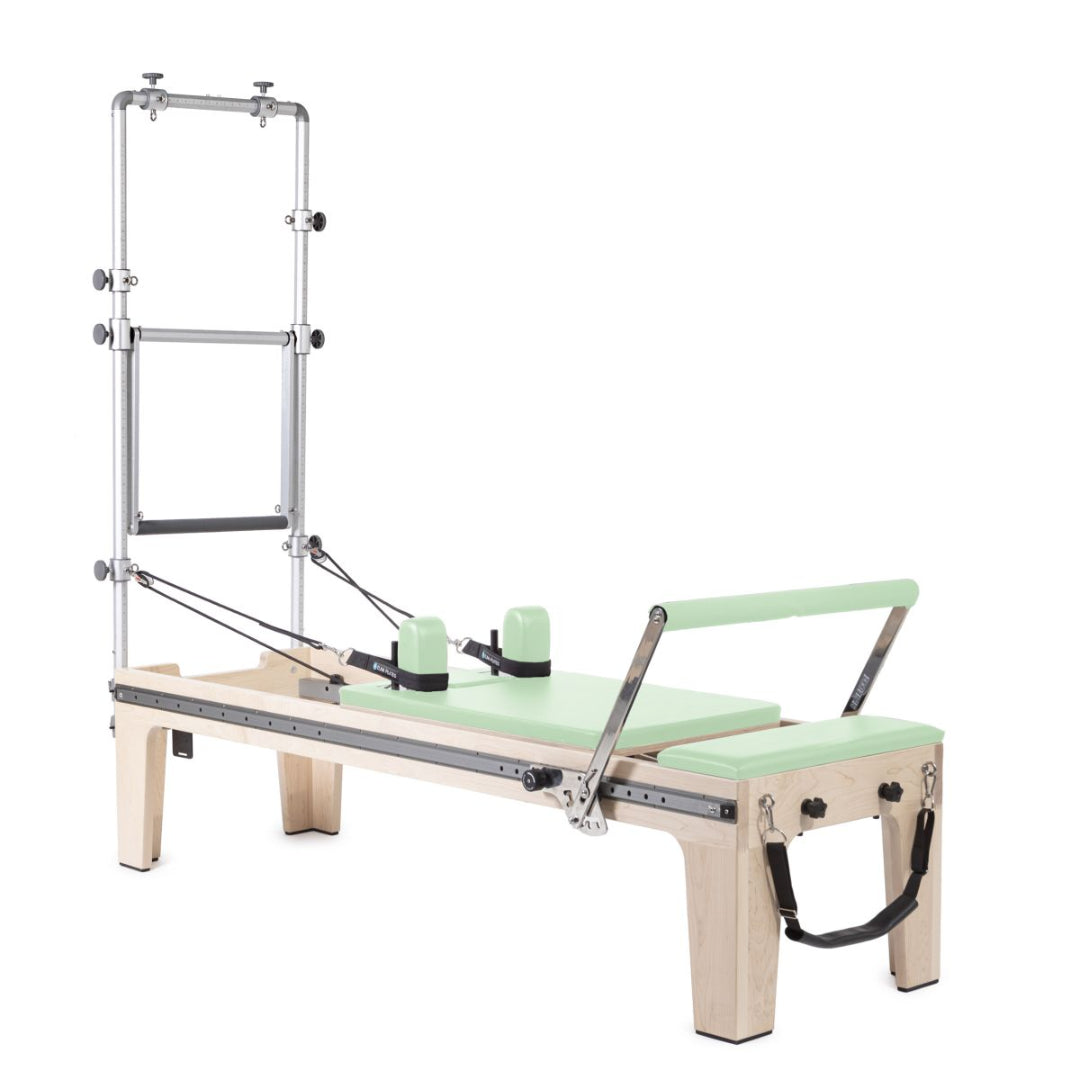

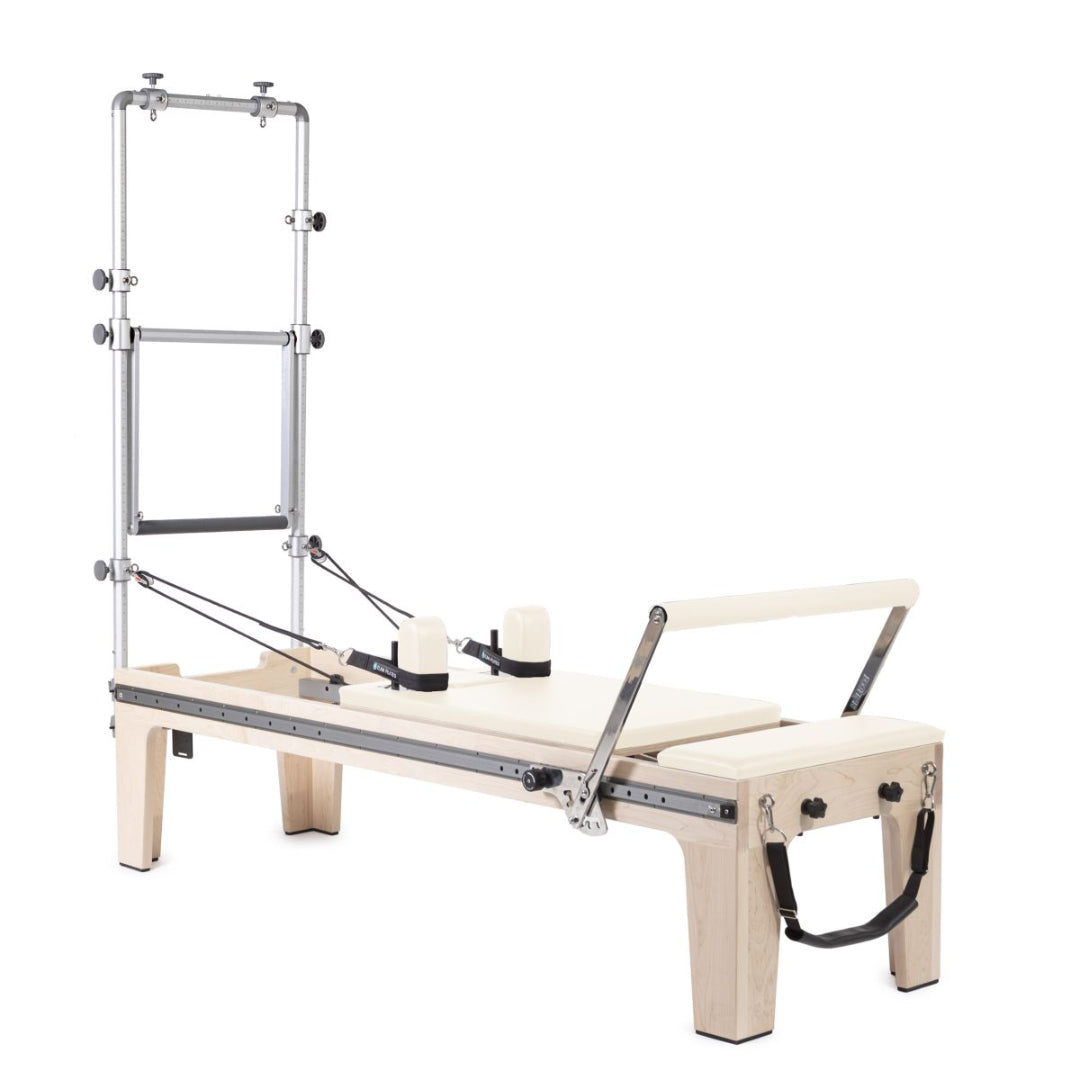

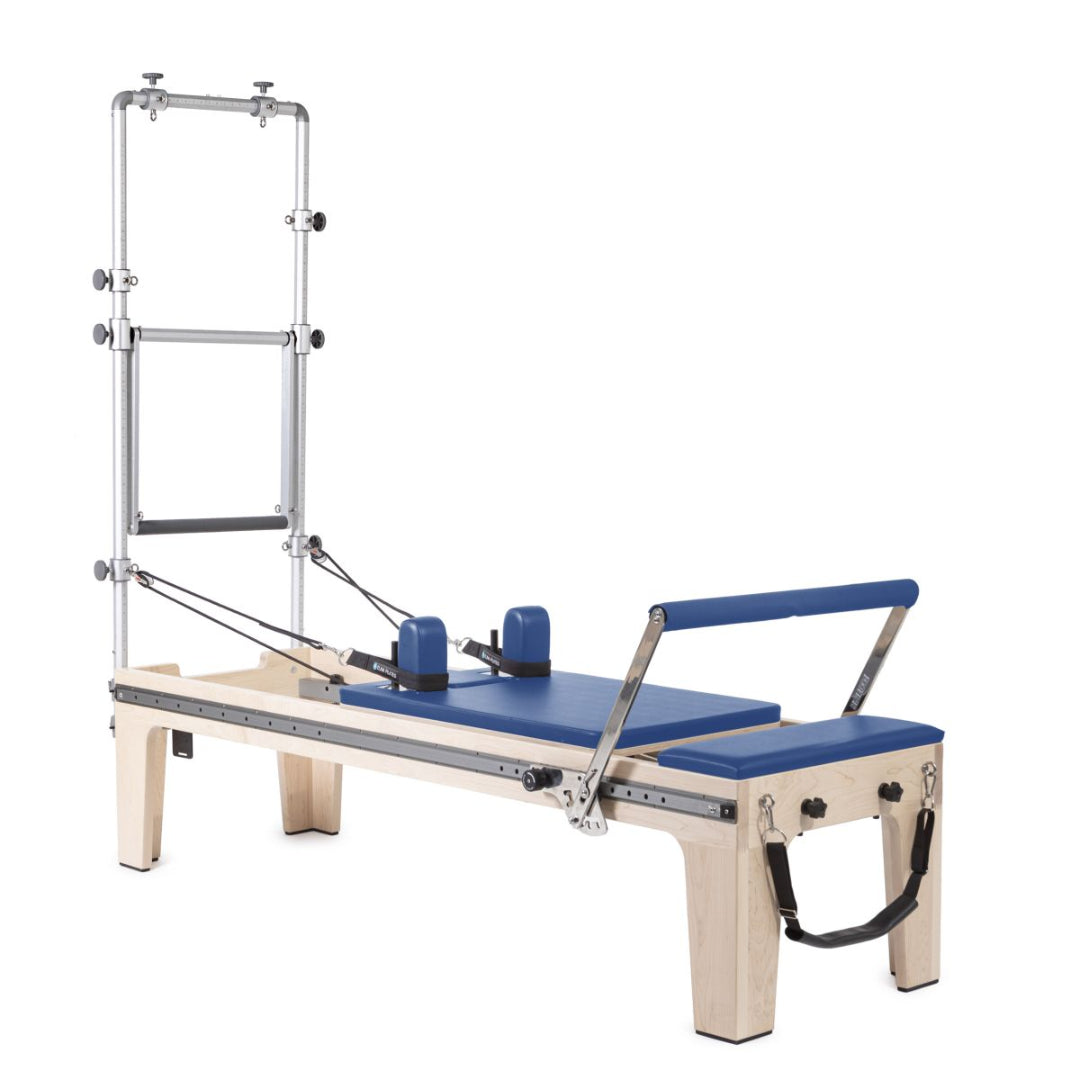

Specially designed for physiotherapeutic needs and individuals with reduced mobility, the Elina Pilates Physio Reformer Master Instructor With Tower stands taller than a standard reformer, giving therapists easy access to treat patients during rehabilitative Pilates sessions — now paired with a complete aluminum tower for full-body training.

The quick-release footbar adjusts across 7 positions, while the fixed 3-height spring bar lets you combine six color-coded reformer springs with eight additional tower springs for precise resistance control. The carriage glides on eight polyurethane wheels with high-precision bearings for a smooth, virtually silent ride, and a retractable rope storage system keeps everything tidy between sessions.

Built from American maple wood finished with a waterproof varnish, the tower adds a roll-down bar, adjustable push-bar, and a protective mat, and the frame is available in two bed heights — 14.96 in or 19.29 in from the ground — to suit different treatment or training setups.

Key Features

• American Maple Wood Construction: Durable, professional-grade build for physiotherapy and rehab use
• Aluminum Tower with Adjustable Pulleys: Expands exercise range for advanced, full-body training
• Quick-Release Footbar — 7 Positions: Rapid adjustments to suit every exercise and patient
• Horizontal Footbar Movement: Slides along the frame for added exercise versatility
• Padded Non-Slip Footbar: Secure footing through every exercise
• Ultra-Silent Carriage: Eight polyurethane wheels with high-precision bearings for a smooth, quiet glide
• Adjustable Cushioning Mechanism: Smooths out movement and prevents sudden impacts

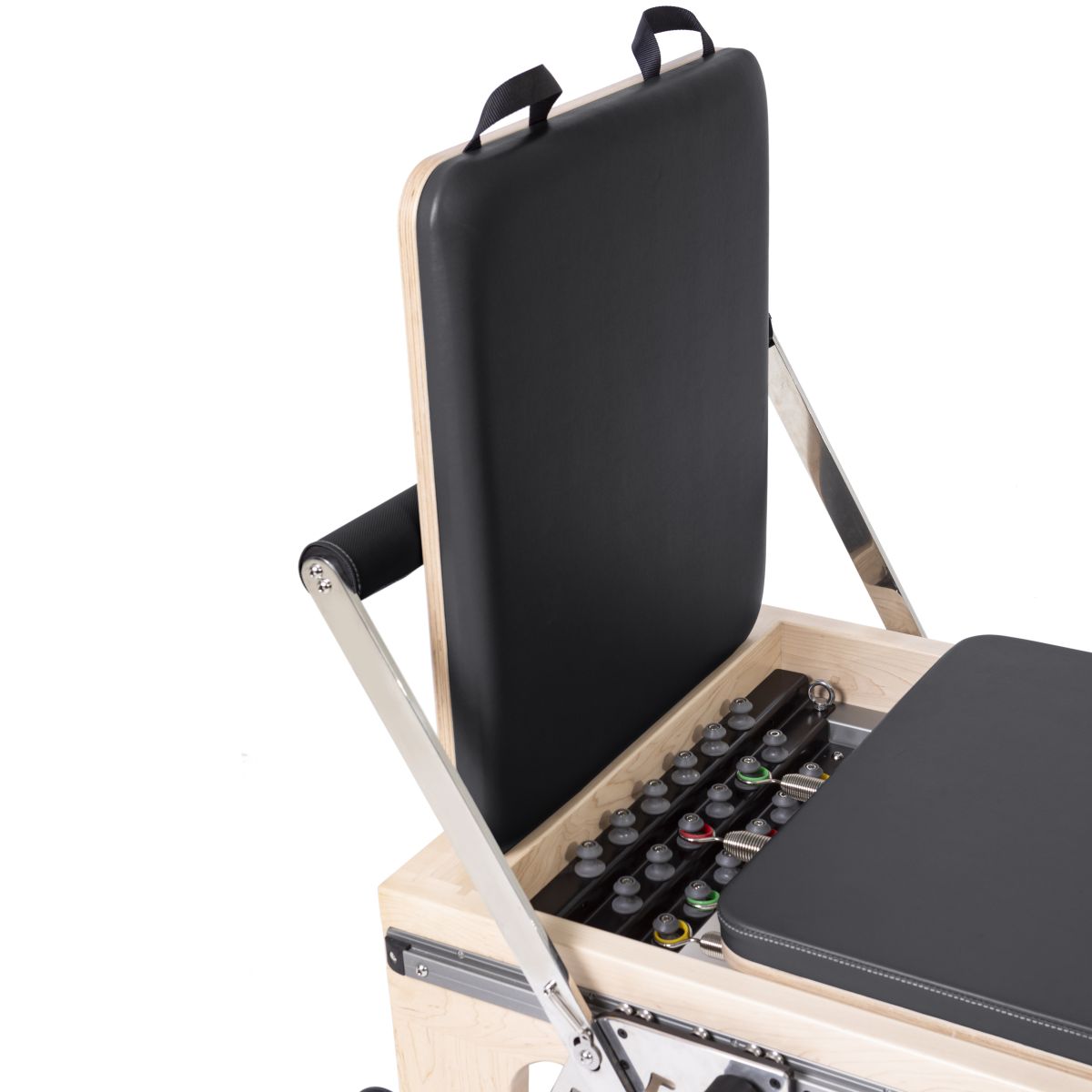

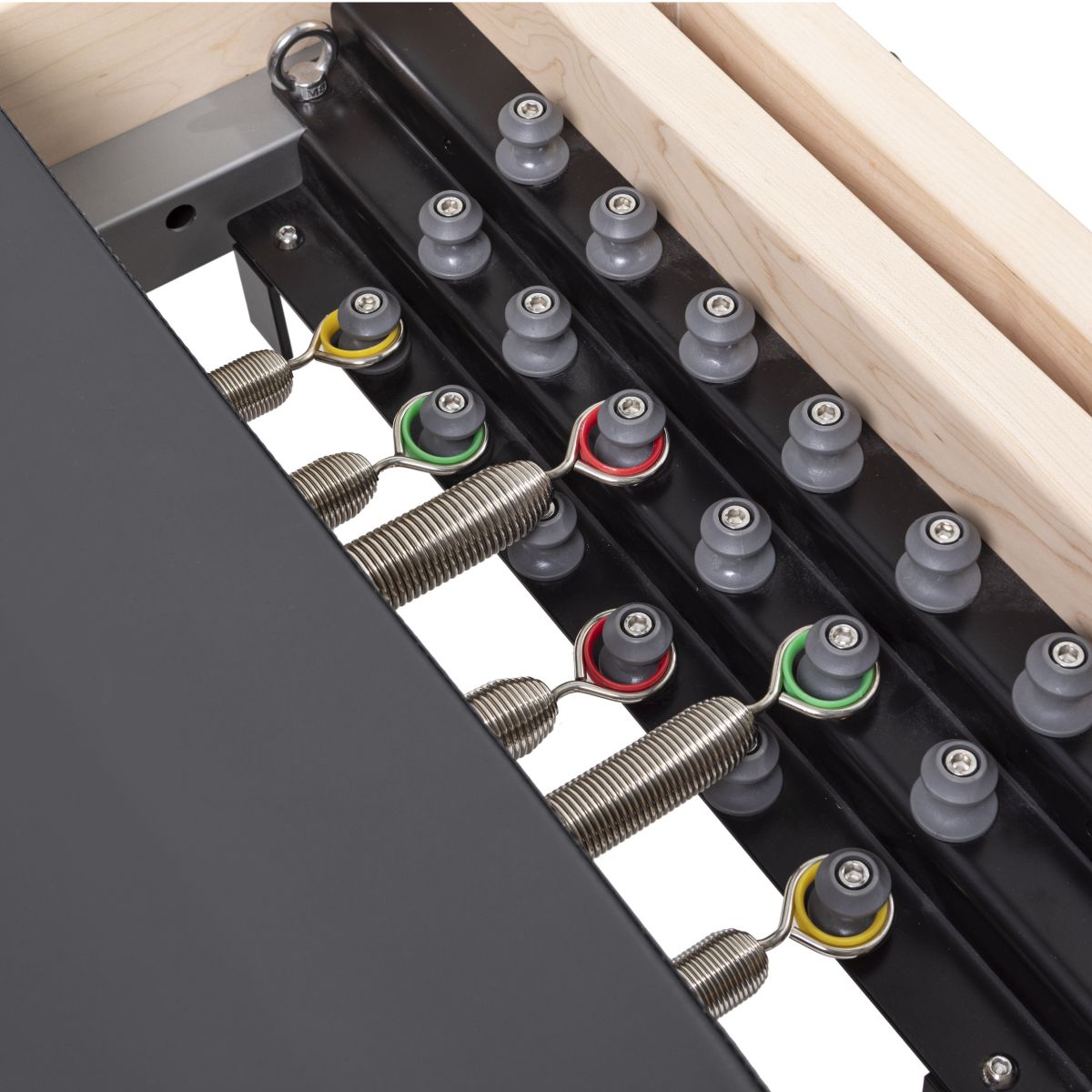

• Six Color-Coded Reformer Springs with Fixed 3-Height Spring Bar: Combine resistance levels to dial in intensity

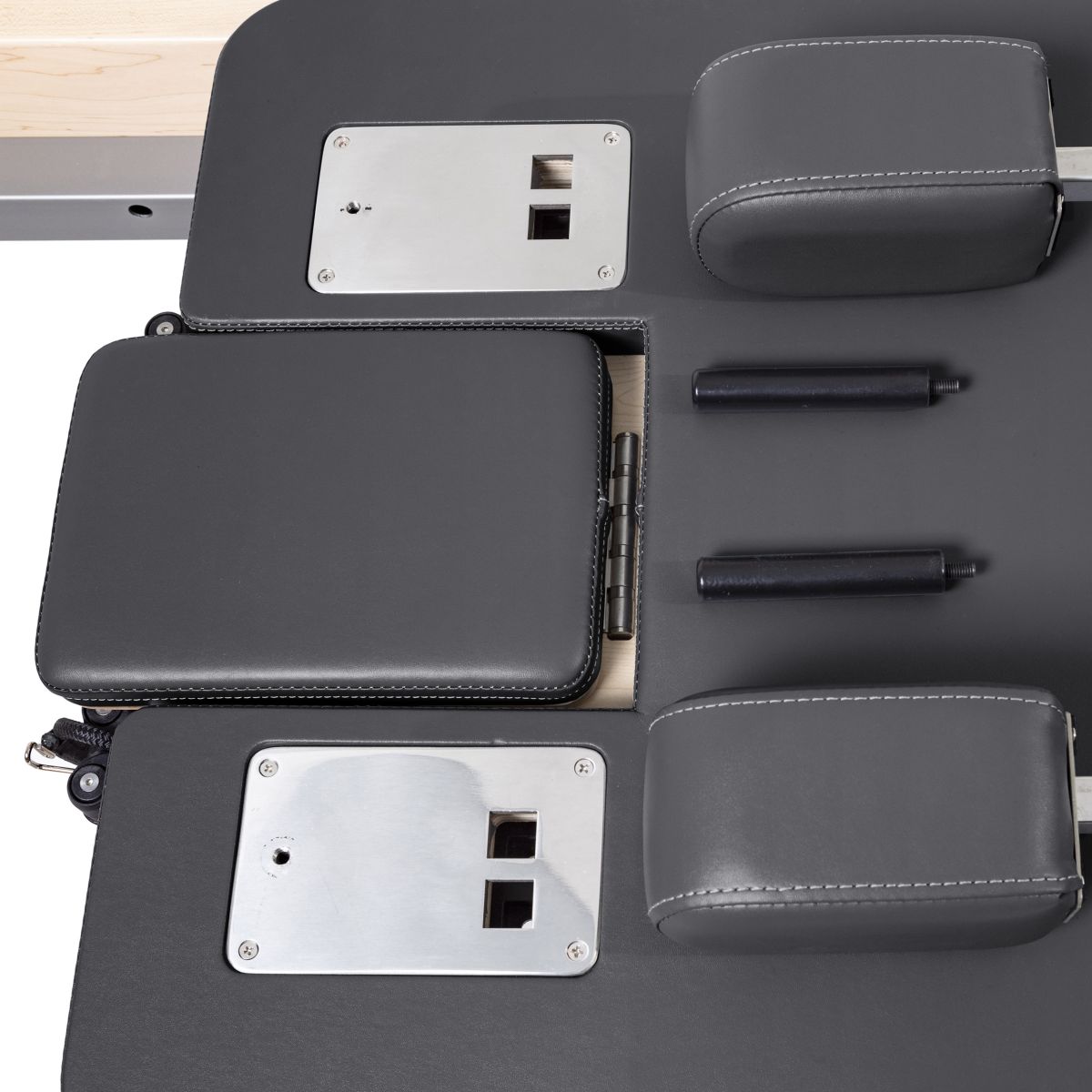

• Adjustable 3-Position Headrest: Customizable comfort for every patient
• Adjustable Padded Shoulder Straps: Easy to fit and remove for any user

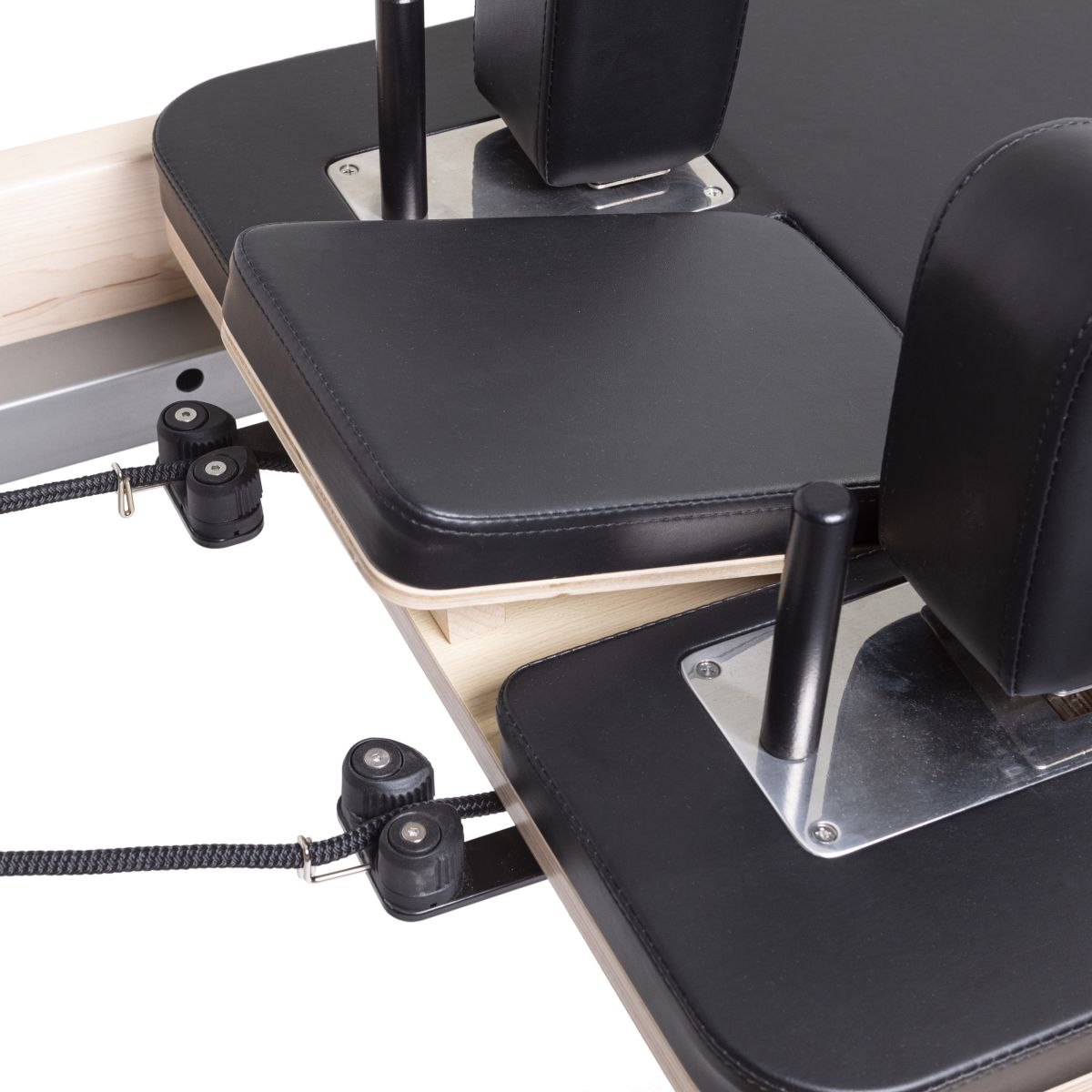

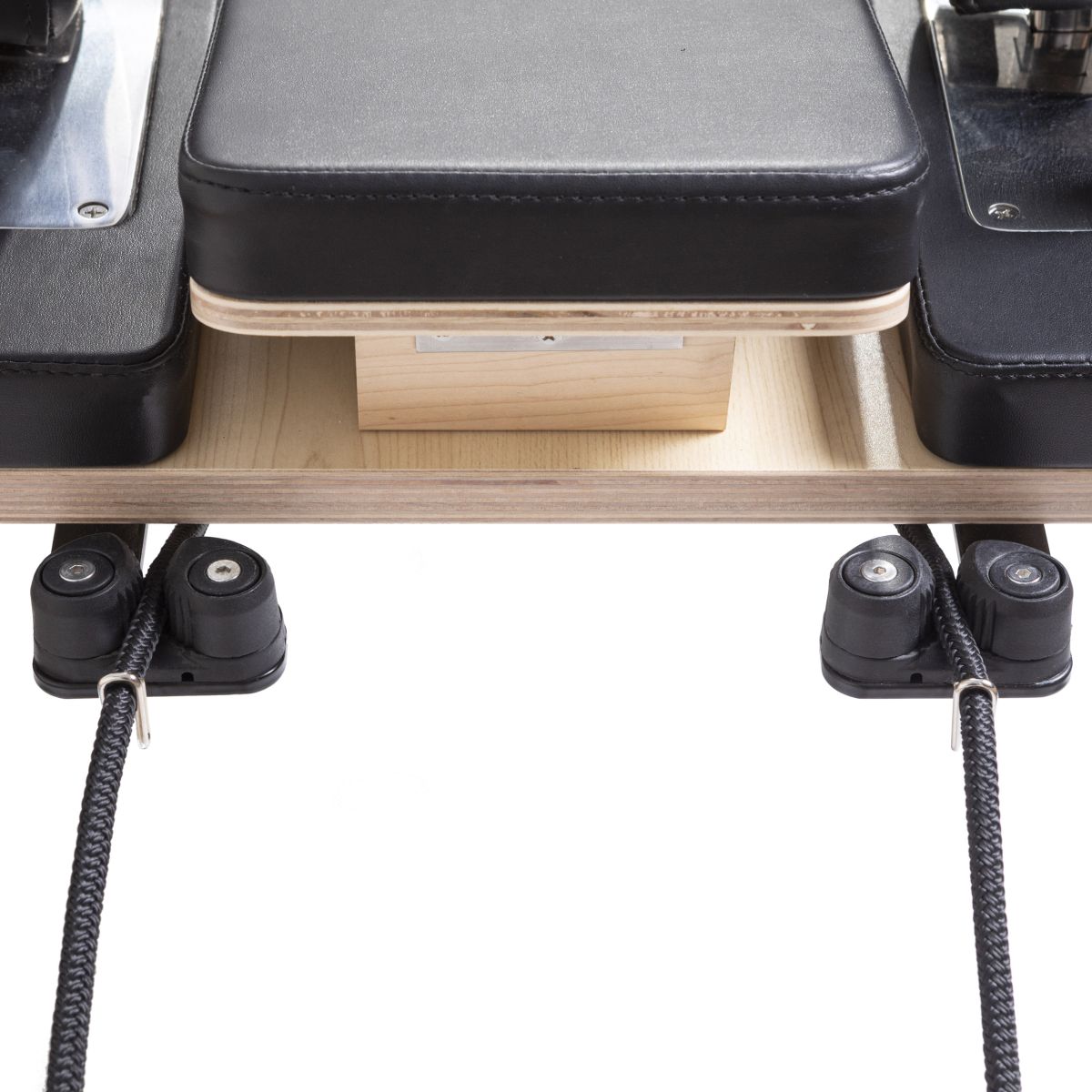

• Retractable Rope Storage: Keeps ropes organized and out of the way between exercises
• Extra-Wide Padded Box: Placeable parallel or perpendicular to the reformer for added stability
• Removable Wide Jump Board: Easy foot placement during jump-board exercises
• Front Foot Strap: Added support during footwork
• Adjustable Ankle Strap: Positioned along the pit area for a secure fit
• Elevated Reformer Height: Taller frame gives therapists easy access for treatment
• Stackable Design: Space-saving storage when not in use

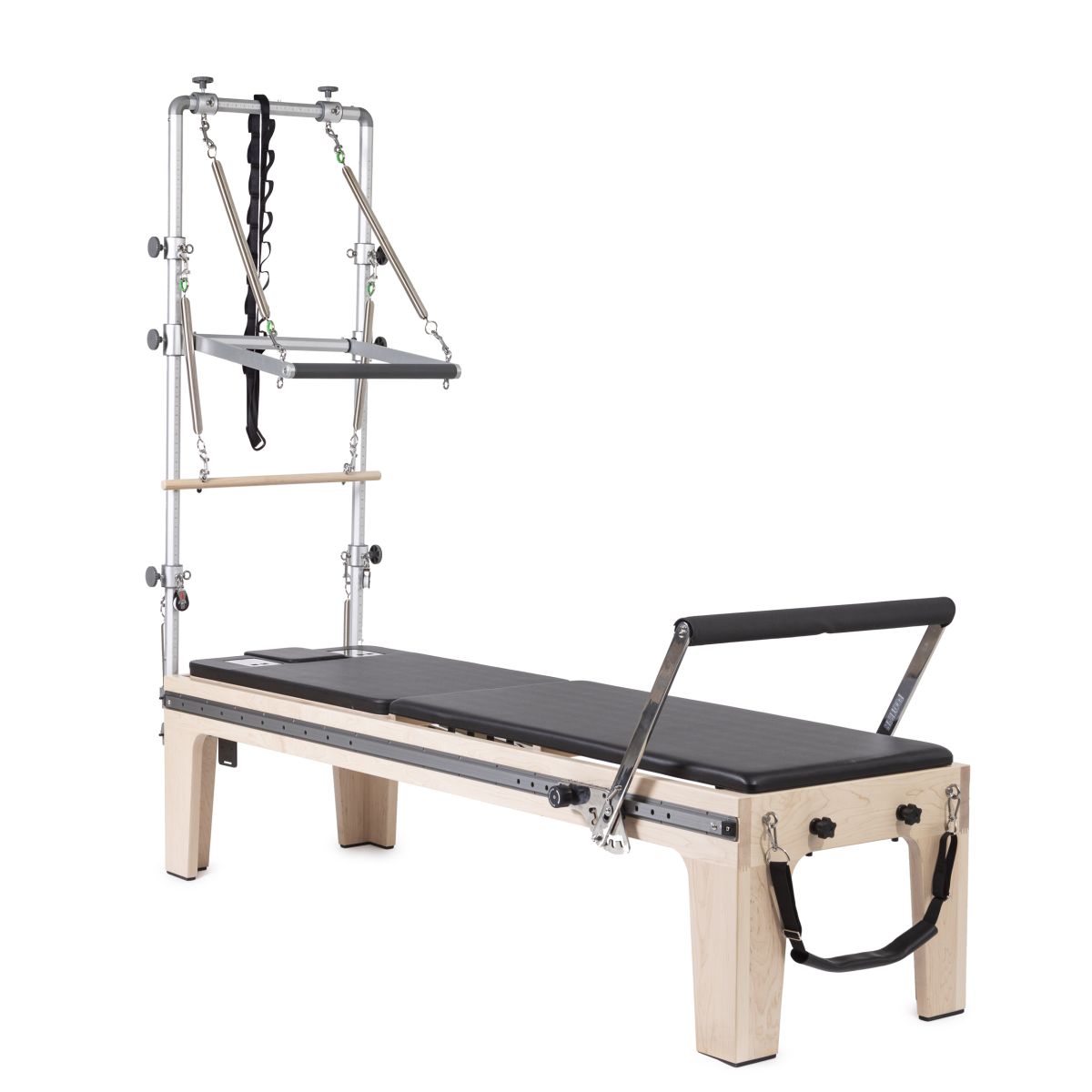

Tower Features

• Anodized Aluminum Construction: Anti-slip hexagonal profiles for a secure grip
• Adjustable Push-Bar: Non-slip, adjustable in height, with safety strap
• Roll-Down Bar: Maple wood, for added exercise variety
• Protective Mat: Lightweight cover for the reformer surface
• Adjustable Pulleys: Height and width adjustment for full customization
• Numbered Markings: On side and back for repeatable setups
• Adjustable Hooks: Front and back, for springs or elastics
• Easy Assembly & Disassembly: Quick setup and breakdown

Specifications

• Structural Material: American maple wood
• Reformer Length: 92.1 in (101.1 in with bar)
• Reformer Width: 31.8 in
• Reformer Height: 49.2 in
• Trolley Dimensions: 37.9 in (L) × 24 in (W)
• Jumping Board Dimensions: 25.5 in (L) × 22.6 in (W)
• Bed Height: 14.96 in or 19.29 in (two options)
• Weight: 179.6 lb (without accessories)
• Foot Bar System: Quick-release, 7 positions
• Spring Bar: Fixed, 3 heights
• Reformer Springs: 2 high-intensity red, 2 medium-intensity green, 2 low-resistance yellow
• Tower Springs: 2 light short (yellow), 2 medium short (green), 2 light long (yellow), 2 medium long (green)
• Headrest Adjustment: 3 positions
• Tower: Included (Anodized Aluminum)
• Standard Colors: Black, Gray, Blue, Green, Red, Ivory, Ocean Blue, Cream
• Stackable: Yes

Included

• Master Instructor Reformer Structure + Trolley
• Complete Tower with Pulleys (Anodized Aluminum)
• Six High-Precision Springs — 2 yellow, 2 green, 2 red
• Extra-Wide Padded Box
• Padded Shoulder Straps
• Wide Jump Board
• Padded Foot Platform
• 1 Set Hand Handles
• 1 Set Double-Loop Hand and Foot Handles
• 1 Set of Ropes
• Front Foot Strap
• Foot Anchoring Strap (Pit Area)
• Mat to Cover the Reformer Surface (Lightweight)
• Roll-Down Bar
• Adjustable Push-Bar with Safety Strap
• 1 Set Simple Foot Grips

Care & Use

To keep the wheel bearings, spring regulating bars, and carriage guides running smoothly, clean and lubricate them periodically. For the upholstery, wipe down with water and a microfiber cloth — for tougher stains, use a tablespoon of neutral soap diluted in about 1.5 liters of water. Springs should be replaced approximately every two years depending on usage intensity to maintain proper tension and safety. For any spare parts, contact The Luxe Outpost directly.

Installation

Ships semi-assembled — no professional installation required. Simply attach the included accompanying parts for a quick, straightforward setup.
