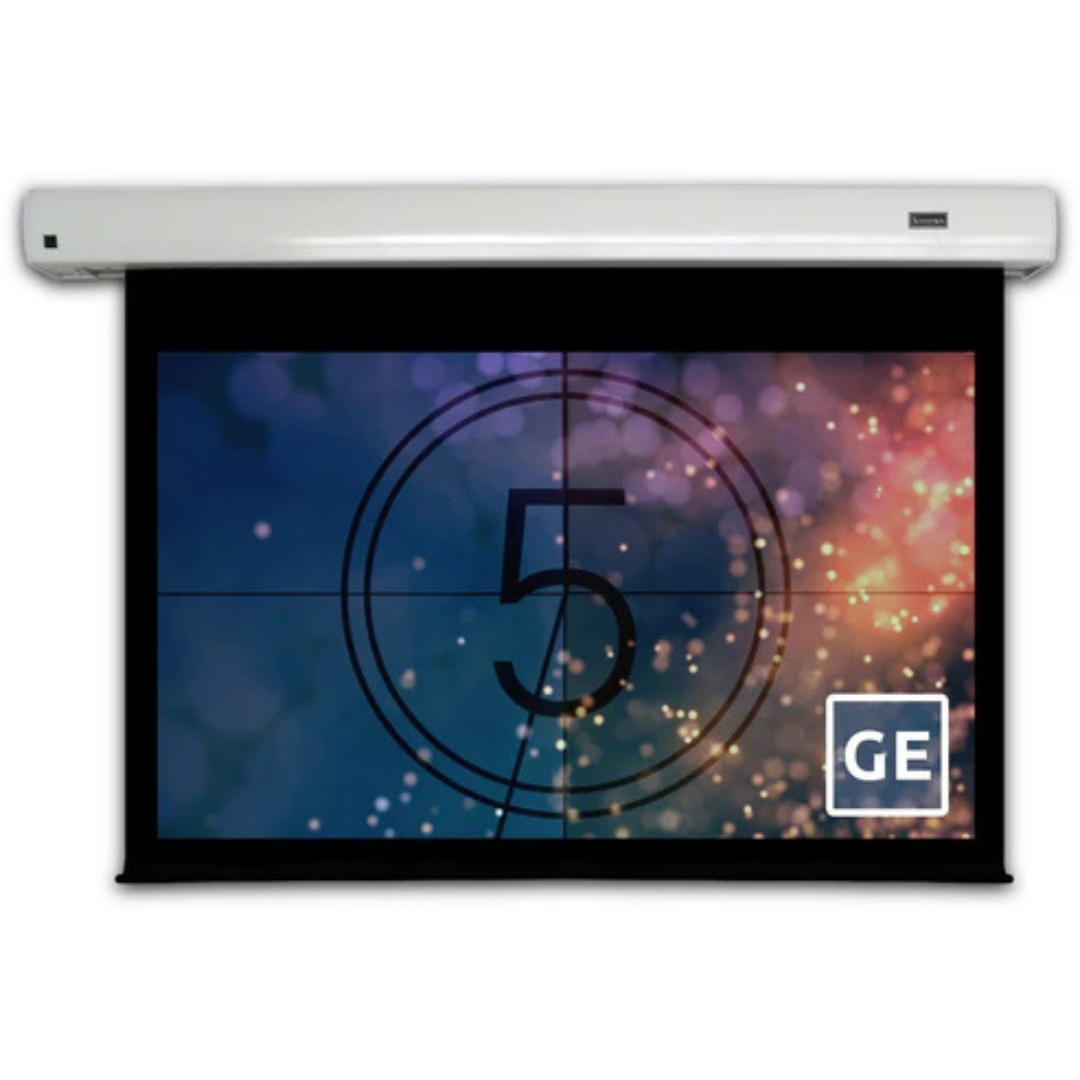

Severtson Cinema Series 16:9 120"

The Cinema Series 16:9 120" is a motorized electric projection screen designed for boardrooms, classrooms, and other multi-use environments where a reliable retractable projection screen is needed.

This screen is available in two material variants: Matte White and Matte Grey. Matte White provides true color reproduction and is recommended for dark rooms, while Matte Grey provides higher contrast for rooms with ambient lighting, making it useful for classrooms, conference rooms, and other multi-use spaces.

The Cinema Series includes multiple built-in control methods, including manual button, IR remote, RS-232, and 12v trigger. It is built with a stylish white all-aluminum case, a custom high-powered low-noise motor, and fiberglass-backed projection surfaces for improved image stability. This product is not compatible with Ultra Short Throw (UST) projectors.

Key Features

• Motorized Electric Design: Versatile retractable projection screen designed for boardrooms, classrooms, and multi-use environments.
• Non Tab-Tensioned Viewing Surface: Features a non tab-tensioned screen surface for motorized electric projection use.
• Two Screen Material Options: Available in Matte White and Matte Grey material options under one product page.
• Matte White Material: Features true color reproduction and is recommended for dark rooms.
• Matte Grey Material: Provides higher contrast for rooms with ambient lighting and helps reduce image washout in multi-use environments.
• Fiberglass-Backed Surface: Cinema Series Model GE screen surfaces are fiberglass-backed to reduce edge curl and improve image stability.
• Multiple Control Methods: Manual button, IR remote, RS-232, and 12v trigger controls come built in.
• White Aluminum Case: Stylish white all-aluminum case with a clean powder-coated finish.
• Wall or Ceiling Mounting: Locking mounting brackets allow either wall or ceiling installation.
• Low-Noise Motor: Custom high-powered, low-noise motor is built for reliable, long-lasting performance.
• Custom Build Program: Eligible for custom build program.
• UST Compatibility Note: Not compatible with Ultra Short Throw (UST) projectors.

Specifications

• Screen Type: Motorized electric projection screen
• Aspect Ratio: 16:9
• Viewing Diagonal: 120"
• Screen Material Options: Matte White, Matte Grey
• Matte White Gain: 1.0 gain
• Matte Grey Gain: 0.8 gain
• Viewing Surface: Non tab-tensioned
• Screen Backing: Fiberglass-backed
• Viewing Area: 104.57" W x 58.82" H
• Screen Width with Side Borders: 108.50"
• Bottom Bar Length: 109.49"
• Top Black Drop: 15.75"
• Side Borders: 1.97"
• Bottom Border: 1.97"
• Case Length: 115.75"
• Case Height: 4.02"
• Case Depth: 3.82"
• Case Material: All-aluminum
• Case Color: White
• Case Finish: Powder-coated
• Mounting: Wall or ceiling mounted
• Control Methods: Manual button, IR remote, RS-232, 12v trigger
• UST Compatibility: Not compatible with Ultra Short Throw (UST) projectors.

Included

• Manual control button
• IR Eye with extension cable
• IR Eye extension port
• Wireless handheld IR remote control
• 12v trigger connection by 3.5mm jack
• Trigger cable
• RS232 control port
• Power cable
• Limit switch adjustment tool

Product Support

• Cinema Series Manual: Download PDF
• Cinema Series Flyer: Download PDF
• Cinema Series Drawing: Download PDF
• Cinema Series Mounting Bracket Dimensions: Download PDF
• Trigger Connection Pin-Out and RS-232 Codes: Download PDF
