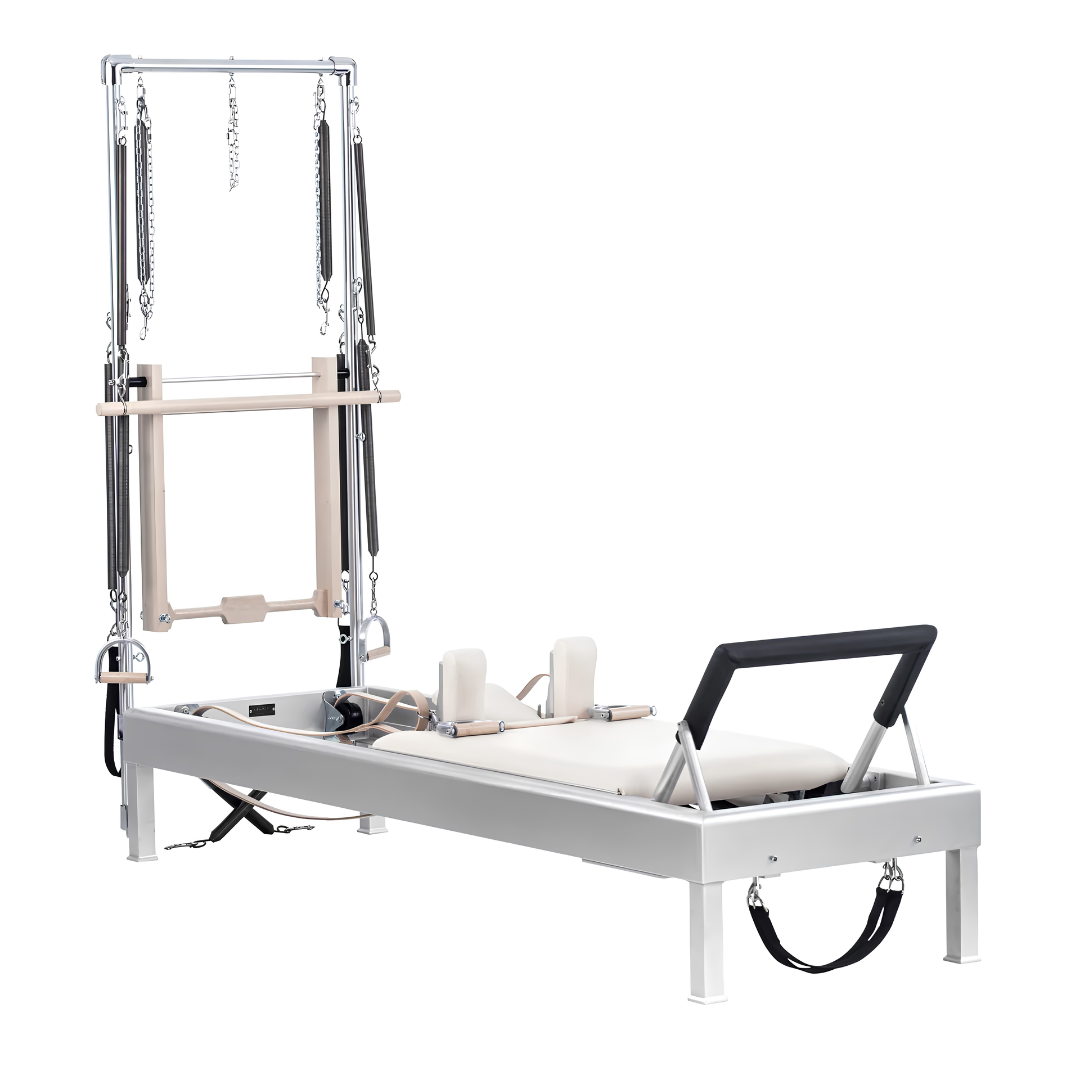

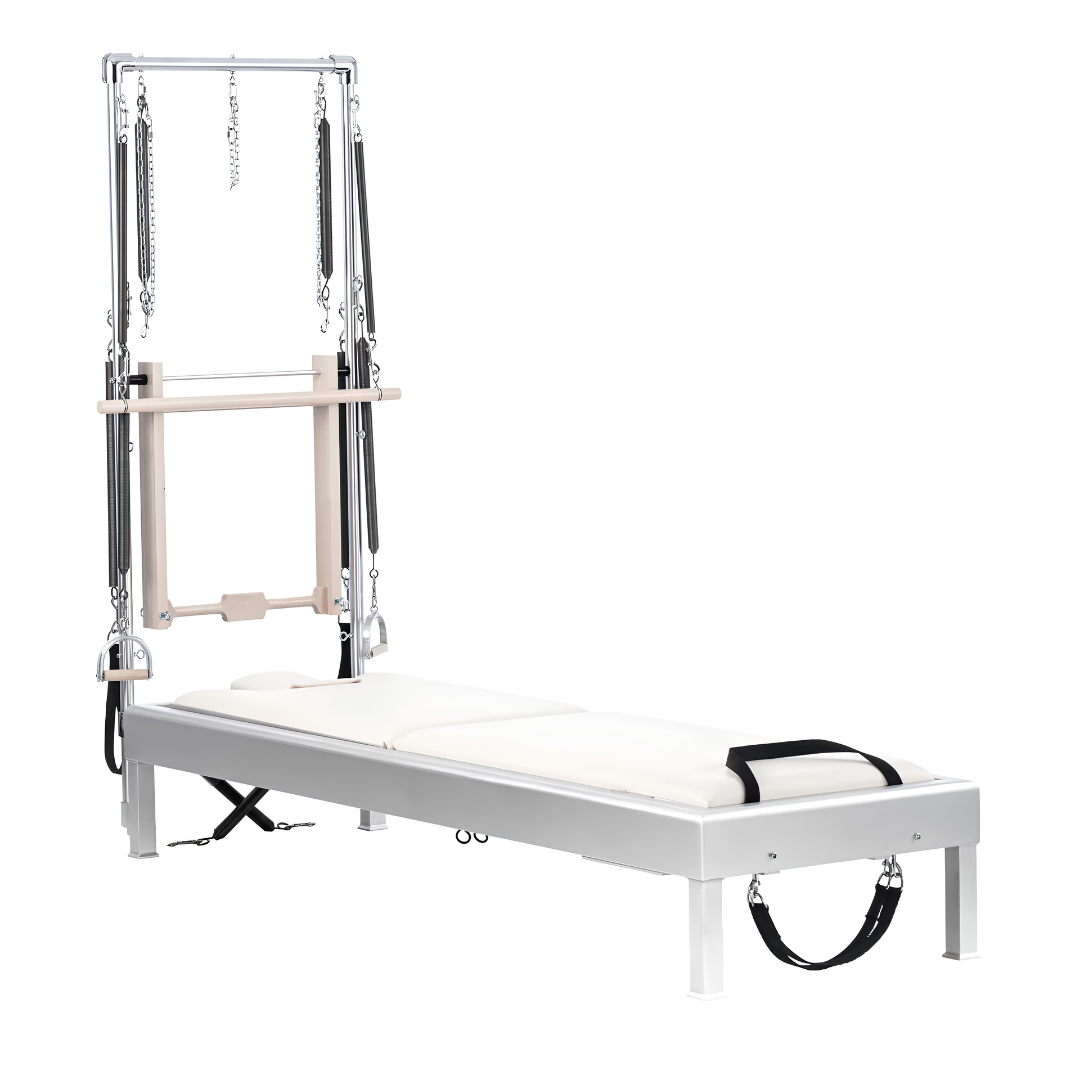

Legacy Pilates Apparatus Aluminum Pilates Reformer / Tower Combination

This Aluminum Pilates Reformer/Tower Combination pairs a traditional carriage-based reformer with an integrated tower system in one apparatus, available in 86-inch and 89-inch length configurations. It can also be used for physiotherapy and rehabilitation.

The reformer side uses a spring bar with hooks and four reformer springs, while the tower side adds leg springs, arm springs, and a push-through bar with springs for both bottom and top positions, plus a roll-back bar assembly for extended exercise variety. Foot straps, extension straps, foot loops, and carriage straps support hand- and foot-based work throughout.

Legacy Apparatus handcrafts this combination unit in Turkey. It is certified to international ISO 20957 and CE standards and can be further configured with optional accessories such as a jump board, Kuna board, or belly strap.

Key Features

• Combined Configuration: Integrates reformer and tower functions in one apparatus.
• Reformer Components: Includes a spring bar with hooks, four reformer springs, carriage straps, foot straps, extension straps, foot loops, and an upholstered reformer box.
• Tower Components: Includes a push-through bar, top and bottom push-through springs, arm springs, leg springs, and a roll-back bar assembly.
• Standard Setup: Unless otherwise specified, the apparatus comes with standard foam, a stainless steel pole, polished galvanized steel pipe, and an insert bed.
• Foam Options: Available with firm or standard foam thickness.
• Application: Can be used for physiotherapy and rehabilitation.
• Certification: Certified to international ISO 20957 and CE standards.
• Manufacturing: Handcrafted in Turkey.

Specifications

• Available Apparatus Sizes: 86 in. and 89 in.
• 86-In. Configuration Length: Approximately 88.2 in., including flanges.
• 89-In. Configuration Length: Approximately 91.3 in., including flanges.
• Width: Approximately 26.6 in.
• Insert-Bed Height: Approximately 72.0 in.
• Elevated-Mat Height: Approximately 78.0 in.
• Firm Foam Thickness: Approximately 1.2 in.
• Standard Foam Thickness: Approximately 1.6 in.
• Standard Stainless Steel Pole Length: Approximately 25.6 in.
• Standard Pipe Finish: Polished galvanized steel.
• Standard Bed Configuration: Insert bed.
• Standards: ISO 20957 and CE.

Size Guide

• 86-In. Configuration: Approximately 88.2 in. long, including flanges × 26.6 in. wide × 72.0 in. high with the insert bed or 78.0 in. high with the elevated mat.
• 89-In. Configuration: Approximately 91.3 in. long, including flanges × 26.6 in. wide × 72.0 in. high with the insert bed or 78.0 in. high with the elevated mat.

Included

• Upholstered reformer box
• Spring bar with hooks
• Set of four reformer springs

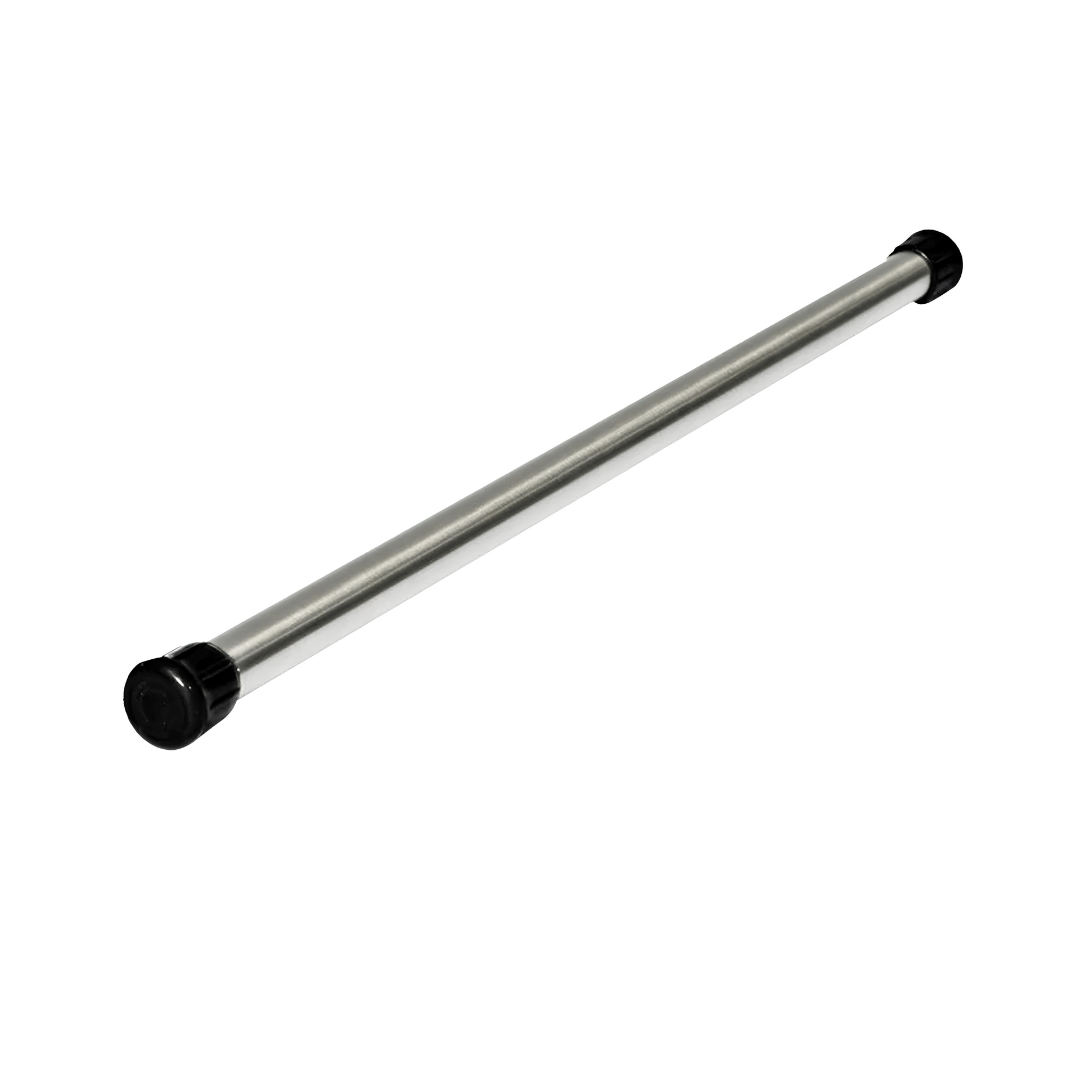

• One stainless steel pole
• One pair of rubber pads

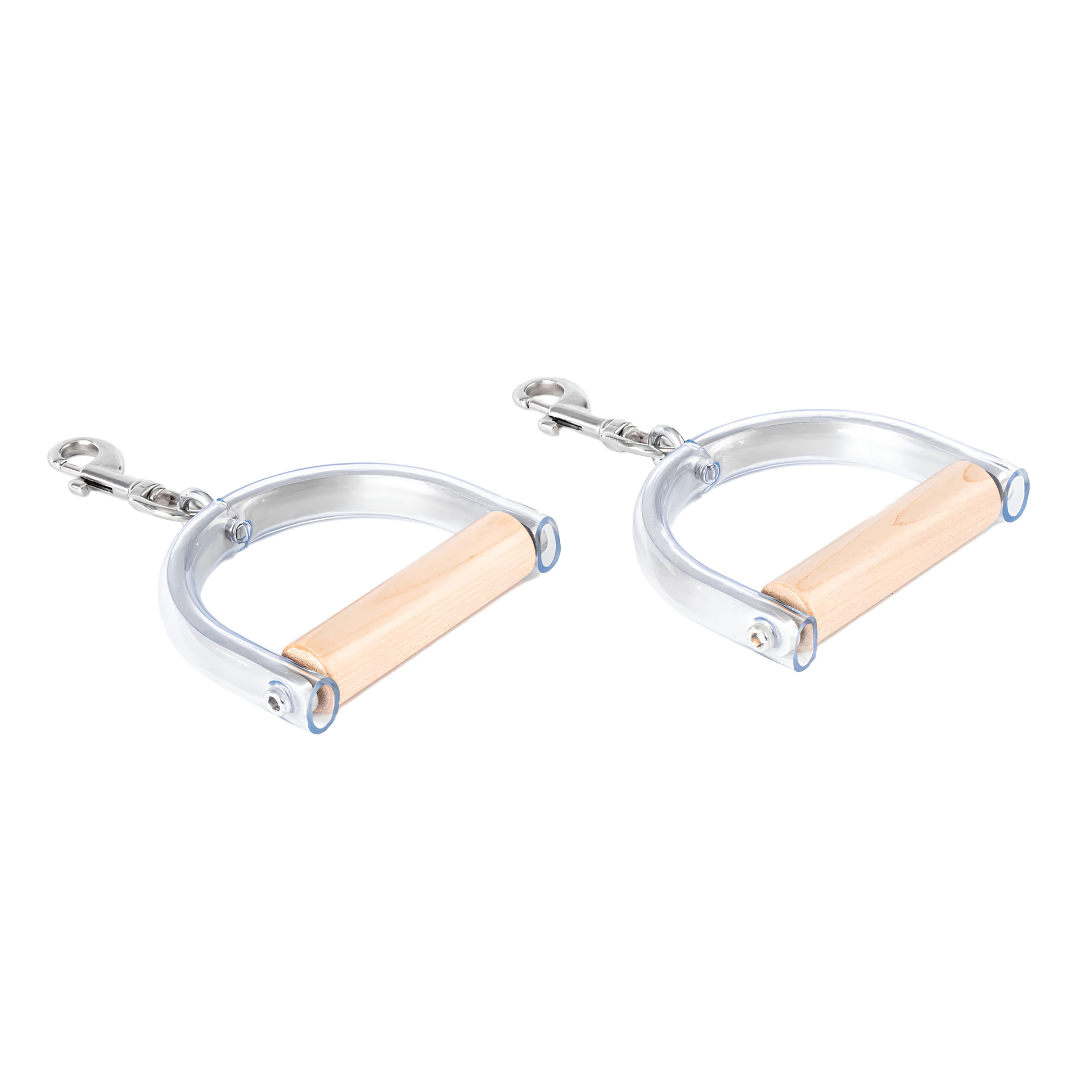

• Two pairs of aluminum and wood handles
• One pair of webbing foot straps, also identified as short-box straps or safety straps
• One pair of webbing extension straps
• One pair of webbing foot loops
• One webbing roll-up strap on the push-through side
• One pair of leather carriage straps
• One pair of sandwich stoppers
• One pair of carriage stoppers with the insert-bed configuration
• One pair of leg springs
• One pair of arm springs
• Push-through bar
• Two pairs of push-through springs for the bottom and top
• Roll-back bar assembly with roll-back bar, one pair of roll-back bar springs, and one pair of double-hooked snaps
• Set of three safety chains

Optional Accessories

• Belly strap (optional)
• Kuna board (optional)
• Jump board (optional)
• Foot bar cover (optional)
• Padded shoulder block cover (optional)
